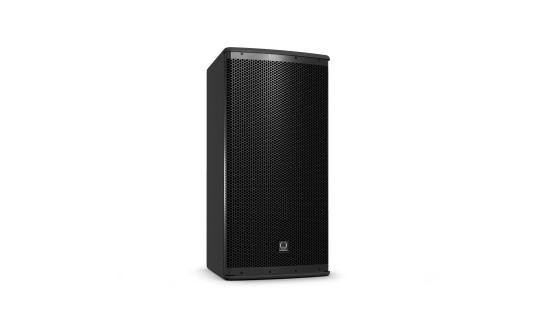

Turbosound TMS152
800W 15" 2-Way Full Range Speaker in Black

OUR PART #  TMS152

Our Price: $849.99
List Price: $977.49
You save 13%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The 2 way full range TMS152 is a switchable passive/bi-amp 15" 3,200 Watt loudspeaker system that is ideally suited for a wide range of portable speech and music sound reinforcement applications. The TMS152 is designed to work in conjunction with TURBOSOUND loudspeaker management systems, providing optimal performance for FOH, side and drum fill applications, as well as offering considerable flexibility to readily adapt to varying venue requirements.

The TMS152 loudspeaker features a carbon fibre loaded 15" low frequency driver with inside/outside wound coil with low mass voice coil for improved transient response, and an titanium dome 1.4" neodymium motor compression driver mounted on a 75° horizontal by 50° vertical low distortion waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch.

Finished in a highly durable semi matt black paint, the cabinet is constructed from 15 mm (5/8") birch plywood, and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. The TMS152 includes internal M10 threaded rigging points for permanent installation, a dual-angle pole mount socket for high or low height use with 35 mm poles/speaker stands to optimise audience coverage, and durable handles for easy transport. A rear panel connector plate carries two Neutrik speakON* NL4 connectors for input and link connections to additional enclosures.

Turbosound TMS152 Features:

  • 2 way full range loudspeaker for portable PA and installation applications
  • 800 Watts continuous, 3,200 Watts peak power
  • Ideal for FOH, side and drum fill applications
  • Carbon fibre loaded 15" low frequency driver with inside/outside wound coil
  • Titanium dome 1.4" neodymium motor compression driver
  • Switchable passive/bi-amp operation for flexibility of use
  • Low distortion waveguide provides 75° H x 50° V dispersion
  • 15 mm (5/8") birch plywood enclosure with hard wearing semi matt black paint finish
  • Rugged powder coated perforated steel mesh grille
  • Dual angle pole mount for accurate audience coverage
  • Durable handles for easy lifting and carrying
  • Multiple internal rigging points for installation applications
  • Neutrik speakON* NL4 connectors for reliable long life operation
  • 3-Year Warranty Program**
  • Designed and engineered in England

Turbosound TMS152 Specifications:

  • Frequency Response:
    • 55 Hz – 20 kHz ±3 dB
    • 45 Hz – 20 kHz -10 dB
  • Nominal Dispersion:  75º H X 50º V @ -6 dB Points
  • Directivity Factor (Q):  12.8
  • Directivity Index (DI):  11.1
  • Power Handling (IEC):
    • Passive:  800 W continuous, 3,200 W peak
    • Bi-amp:
      • LF: 800 W continuous, 3,200 W peak
      • HF: 75 W continuous, 300 W peak
  • Sensitivity:  97 dB (1 W @ 1 m)
  • Maximum SPL:
    • Passive:  126 dB continuous, 132 dB peak
    • Bi-amp:
      • LF: 126 dB continuous, 132 dB peak;
      • HF: 128 dB continuous, 134 dB peak
  • Impedance:
    • Passive:  8 Ohms
    • Bi-amp:
      • LF: 8 Ohms
      • HF: 6 Ohms
  • Crossover Type:  Passive / bi-amp, switchable
  • Components:
    • 1 x 15" (394 mm) LF driver
    • 1 x 1.4" (36 mm) HF compression driver
  • Connectors:  2 x Neutrik speakON* NL4
  • Wiring:
    • Passive:  Pins 1+ / 1- input, pins 2+ / 2- link
    • Bi-amp:  Pins 1+ / 1- LF, pins 2+ / 2- HF
  • Dimensions HWD:  716 x 432 x 406 mm (28.2 x 17.0 x 16.0")
  • Net Weight:  27.7 kg (61.0 lbs)
  • Construction:  15 mm (5/8") birch plywood
  • Finish:  Semi matt black paint
  • Grille:  Powder-coated perforated steel
  • Flying Hardware:  M12 x 12 points

Turbosound TMS152
800W 15" 2-Way Full Range Speaker in Black

OUR PART #  TMS152

Product Information:

The 2 way full range TMS152 is a switchable passive/bi-amp 15" 3,200 Watt loudspeaker system that is ideally suited for a wide range of portable speech and music sound reinforcement applications. The TMS152 is designed to work in conjunction with TURBOSOUND loudspeaker management systems, providing optimal performance for FOH, side and drum fill applications, as well as offering considerable flexibility to readily adapt to varying venue requirements.

The TMS152 loudspeaker features a carbon fibre loaded 15" low frequency driver with inside/outside wound coil with low mass voice coil for improved transient response, and an titanium dome 1.4" neodymium motor compression driver mounted on a 75° horizontal by 50° vertical low distortion waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch.

Finished in a highly durable semi matt black paint, the cabinet is constructed from 15 mm (5/8") birch plywood, and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. The TMS152 includes internal M10 threaded rigging points for permanent installation, a dual-angle pole mount socket for high or low height use with 35 mm poles/speaker stands to optimise audience coverage, and durable handles for easy transport. A rear panel connector plate carries two Neutrik speakON* NL4 connectors for input and link connections to additional enclosures.

Turbosound TMS152 Features:

  • 2 way full range loudspeaker for portable PA and installation applications
  • 800 Watts continuous, 3,200 Watts peak power
  • Ideal for FOH, side and drum fill applications
  • Carbon fibre loaded 15" low frequency driver with inside/outside wound coil
  • Titanium dome 1.4" neodymium motor compression driver
  • Switchable passive/bi-amp operation for flexibility of use
  • Low distortion waveguide provides 75° H x 50° V dispersion
  • 15 mm (5/8") birch plywood enclosure with hard wearing semi matt black paint finish
  • Rugged powder coated perforated steel mesh grille
  • Dual angle pole mount for accurate audience coverage
  • Durable handles for easy lifting and carrying
  • Multiple internal rigging points for installation applications
  • Neutrik speakON* NL4 connectors for reliable long life operation
  • 3-Year Warranty Program**
  • Designed and engineered in England

Turbosound TMS152 Specifications:

  • Frequency Response:
    • 55 Hz – 20 kHz ±3 dB
    • 45 Hz – 20 kHz -10 dB
  • Nominal Dispersion:  75º H X 50º V @ -6 dB Points
  • Directivity Factor (Q):  12.8
  • Directivity Index (DI):  11.1
  • Power Handling (IEC):
    • Passive:  800 W continuous, 3,200 W peak
    • Bi-amp:
      • LF: 800 W continuous, 3,200 W peak
      • HF: 75 W continuous, 300 W peak
  • Sensitivity:  97 dB (1 W @ 1 m)
  • Maximum SPL:
    • Passive:  126 dB continuous, 132 dB peak
    • Bi-amp:
      • LF: 126 dB continuous, 132 dB peak;
      • HF: 128 dB continuous, 134 dB peak
  • Impedance:
    • Passive:  8 Ohms
    • Bi-amp:
      • LF: 8 Ohms
      • HF: 6 Ohms
  • Crossover Type:  Passive / bi-amp, switchable
  • Components:
    • 1 x 15" (394 mm) LF driver
    • 1 x 1.4" (36 mm) HF compression driver
  • Connectors:  2 x Neutrik speakON* NL4
  • Wiring:
    • Passive:  Pins 1+ / 1- input, pins 2+ / 2- link
    • Bi-amp:  Pins 1+ / 1- LF, pins 2+ / 2- HF
  • Dimensions HWD:  716 x 432 x 406 mm (28.2 x 17.0 x 16.0")
  • Net Weight:  27.7 kg (61.0 lbs)
  • Construction:  15 mm (5/8") birch plywood
  • Finish:  Semi matt black paint
  • Grille:  Powder-coated perforated steel
  • Flying Hardware:  M12 x 12 points
