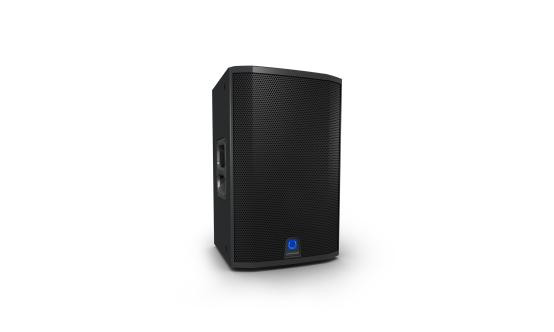

Turbosound TSP122AN
12" 2-Way Speaker in Black

OUR PART #  TSP122AN

Our Price: $649.99
List Price: $747.49
You save 13%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The TURBOSOUND SIENA TSP122-AN is a powered two way full range loudspeaker with digital networking designed for a wide range of portable PA applications. The carbon fibre loaded 12" low frequency driver utilises a specialised voice coil wound on both the inside and the outside of the coil former for higher magnetic density, which results in better cooling, higher power handling, and improved efficiency. The titanium dome 1" neodymium high frequency compression driver is mounted on a low distortion waveguide providing 90° horizontal x 50° vertical dispersion.

As with all TURBOSOUND powered loudspeakers, the TSP122-AN features a very efficient and lightweight two channel KLARK TEKNIK Class D power amplifier which provides 2,500 Watts of peak power. A high degree of control over the loudspeaker system's performance is provided by the highly sophisticated KLARK TEKNIK Digital Signal Processing which offers dynamic EQ for impressive full range response at low volume levels, and transparent limiting to ensure the utmost clarity at high output levels, and the assurance of long term reliability. The loudspeaker's rear panel amplifier module carries a fully featured user interface consisting of a LCD display providing intuitive access to level, EQ, and pre-set frequency contours that optimise response for FOH or floor monitor use, and provides USB remote control via PC or Mac* Computer.

In addition to the balanced combination Jack/XLR inputs, balanced XLR outputs for each of the two independent channels, and a Mix Out XLR connector, the TSP122-AN is equipped with proprietary ULTRANET technology, using CAT5 cables to transmit pristine quality multi-channel audio signals and other information between ULTRANET enabled products such as digital mixers and personal monitor systems. Mains power is connected via a locking Neutrik powerCON* connector with additional auxilliary mains output to power further SIENA loudspeakers. The TSP122-AN is fitted with a dual angle pole mount socket, allowing it to be pole mounted straight on or raised higher and angled downwards to optimise audience coverage. The roadworthy 15 mm (5/8") birch plywood cabinet with rugged powder coated perforated steel mesh grille and is fitted with multiple internal rigging points for permanent installations, and is finished in hard wearing semi matt black paint.

Features:

  • 2 way full range loudspeaker for portable PAapplications
  • 2,500 Watt power featuring KLARK TEKNIK Class-Dtechnology
  • KLARK TEKNIK Digital Signal Processing for totalsystem control
  • ULTRANET digital audio networking connects to mixersand other sources
  • Carbon fibre loaded 12" low frequency driver withinside/outside wound coil
  • Titanium dome 1" neodymium motor compression driver
  • Fully featured user interface with LCD display forease of navigation
  • USB remote control via PC or Mac* Computer
  • Low distortion waveguide provides 90° H x 50° Vdispersion
  • 15 mm (5/8") birch plywood enclosure, finished in ablack semi-matt textured paint
  • Rugged powder coated perforated steel mesh grille
  • Dual angle pole mount for accurate coverage control
  • Multiple internal rigging points for installapplications
  • Mains input and link output on Neutrik powerCON*connectors
  • 3-Year Warranty Program**
  • Designed and engineered in England

Specifications:

  • Dimensions (H x W x D):  612.4 x 384.6 x 341.4mm (24.11x 15.14 x 13.44")
  • Net Weight:  19.4 kg (42.5 lbs)
  • Components:  1 x 12" (305 mm) LF driver, 1x 1" (25 mm) HF compression driver
  • Frequency Response:  56 Hz - 18 kHz ±3 dB, 45 Hz- 20 kHz ±10 dB
  • Calculated Max SPL:  135 dB peak
  • Construction:  15 mm (5/8”) birch plywood,finished in semi matt black paint
  • Grille:  Powder coated perforated steel mesh
  • Amplifier Type:  Class-D
  • Connectors:
    • 2 x Jack/XLR input
    • 2 x XLR output
    • XLR Mix Output
    • Neutrik powerCON* mains in and mains link
    • USB
    • ULTRANET In and Thru
  • Controls:  Gain (per channel)
  • Indicators:  Signal, peak, LCD panel

Turbosound TSP122AN
12" 2-Way Speaker in Black

OUR PART #  TSP122AN

Product Information:

The TURBOSOUND SIENA TSP122-AN is a powered two way full range loudspeaker with digital networking designed for a wide range of portable PA applications. The carbon fibre loaded 12" low frequency driver utilises a specialised voice coil wound on both the inside and the outside of the coil former for higher magnetic density, which results in better cooling, higher power handling, and improved efficiency. The titanium dome 1" neodymium high frequency compression driver is mounted on a low distortion waveguide providing 90° horizontal x 50° vertical dispersion.

As with all TURBOSOUND powered loudspeakers, the TSP122-AN features a very efficient and lightweight two channel KLARK TEKNIK Class D power amplifier which provides 2,500 Watts of peak power. A high degree of control over the loudspeaker system's performance is provided by the highly sophisticated KLARK TEKNIK Digital Signal Processing which offers dynamic EQ for impressive full range response at low volume levels, and transparent limiting to ensure the utmost clarity at high output levels, and the assurance of long term reliability. The loudspeaker's rear panel amplifier module carries a fully featured user interface consisting of a LCD display providing intuitive access to level, EQ, and pre-set frequency contours that optimise response for FOH or floor monitor use, and provides USB remote control via PC or Mac* Computer.

In addition to the balanced combination Jack/XLR inputs, balanced XLR outputs for each of the two independent channels, and a Mix Out XLR connector, the TSP122-AN is equipped with proprietary ULTRANET technology, using CAT5 cables to transmit pristine quality multi-channel audio signals and other information between ULTRANET enabled products such as digital mixers and personal monitor systems. Mains power is connected via a locking Neutrik powerCON* connector with additional auxilliary mains output to power further SIENA loudspeakers. The TSP122-AN is fitted with a dual angle pole mount socket, allowing it to be pole mounted straight on or raised higher and angled downwards to optimise audience coverage. The roadworthy 15 mm (5/8") birch plywood cabinet with rugged powder coated perforated steel mesh grille and is fitted with multiple internal rigging points for permanent installations, and is finished in hard wearing semi matt black paint.

Features:

  • 2 way full range loudspeaker for portable PAapplications
  • 2,500 Watt power featuring KLARK TEKNIK Class-Dtechnology
  • KLARK TEKNIK Digital Signal Processing for totalsystem control
  • ULTRANET digital audio networking connects to mixersand other sources
  • Carbon fibre loaded 12" low frequency driver withinside/outside wound coil
  • Titanium dome 1" neodymium motor compression driver
  • Fully featured user interface with LCD display forease of navigation
  • USB remote control via PC or Mac* Computer
  • Low distortion waveguide provides 90° H x 50° Vdispersion
  • 15 mm (5/8") birch plywood enclosure, finished in ablack semi-matt textured paint
  • Rugged powder coated perforated steel mesh grille
  • Dual angle pole mount for accurate coverage control
  • Multiple internal rigging points for installapplications
  • Mains input and link output on Neutrik powerCON*connectors
  • 3-Year Warranty Program**
  • Designed and engineered in England

Specifications:

  • Dimensions (H x W x D):  612.4 x 384.6 x 341.4mm (24.11x 15.14 x 13.44")
  • Net Weight:  19.4 kg (42.5 lbs)
  • Components:  1 x 12" (305 mm) LF driver, 1x 1" (25 mm) HF compression driver
  • Frequency Response:  56 Hz - 18 kHz ±3 dB, 45 Hz- 20 kHz ±10 dB
  • Calculated Max SPL:  135 dB peak
  • Construction:  15 mm (5/8”) birch plywood,finished in semi matt black paint
  • Grille:  Powder coated perforated steel mesh
  • Amplifier Type:  Class-D
  • Connectors:
    • 2 x Jack/XLR input
    • 2 x XLR output
    • XLR Mix Output
    • Neutrik powerCON* mains in and mains link
    • USB
    • ULTRANET In and Thru
  • Controls:  Gain (per channel)
  • Indicators:  Signal, peak, LCD panel
