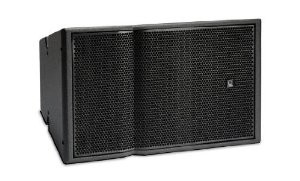

Turbosound TFA400
300W 10" 3-Way Compact Passive Speaker

OUR PART #:  TFA400

The Focus TFA-400 is a compact three-way bi-amped constant curve line array loudspeaker consisting of a 10” Turbo-loaded low frequency drive unit...
Learn More
Our Price: $2,119.99
List Price: $2,439.99
You save 13%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Turbosound TFA400
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Focus TFA-400 is a compact three-way bi-amped constant curve line array loudspeaker consisting of a 10” Turbo-loaded low frequency drive unit, a 6.5” neodymium mid frequency drive unit and a 1” high frequency compression driver loaded by a combination Dendritic/Polyhorn waveguide in a trapezoidal enclosure.

The dispersion pattern is 75° in the non-array plane and 25° in the array plane, and is designed to be used either singly, in small flown arrays of two or three enclosures. Assembly of flown arrays is achieved by the use of the optional FB-400 flybar and the integrated rigging hardware based around a simple drop link and locking pin system. The Focus TFA-400 can also be easily ground stacked using the optional
GS-400 stacking block which provides downward inclination from 0° to 10° in 5° increments. A pole mount socket is positioned in the bottom of the enclosure for pole mounting. The birch plywood enclosure is fitted with four flush recessed handles and is finished in black TourTough coating. Two parallel-linked Speakon NL4 connectors are provided for input and interconnects.

Turbosound TFA400 Features:

  • Constant curve line array
  • Three-way design
  • 75° x 25° dispersion
  • Neodymium magnets
  • Very compact enclosure
  • NL4 connectors
  • Pole mount socket
  • TourTough finish
  • Applications:
    • Front of house
    • Live music venues
    • Corporate and industrial
    • Infills and outfills

Turbosound TFA400 Specifications:

  • Dimensions (HxWxD): 644mm x 397mm x 363mm (25.4”x 15.6” x 14.3”)
  • Net weight: 28.5kg (62.7lbs)
  • Components: 1 x 10” (254mm) LF driver, 1 x 6.5”(165mm) MF driver, 1 x 1” HF compression driver
  • Frequency response: 105Hz – 20kHz ±3dB, 90Hz –22kHz ±10dB
  • Nominal dispersion: 75° non-array plane x 25°array plane
  • Power handling:
    • LF: 300 watts R.M.S., 600 watts program
    • MF/HF: 180 watts R.M.S., 360 watts program
  • Sensitivity:
    • LF: 98dB
    • MF/HF: 105dB, 1 watt @ 1 metre
  • Impedance: LF: 16 ohms, MF/HF: 8 ohms
  • Maximum SPL: 127dB continuous, 133dB peak
  • Construction: 15mm (5/8”) birch plywood,finished in black textured polyurethane. Four recessed carrying handles. Polemount socket
  • Grille: Black powder coated perforated steelbacked with reticulated foam
  • Connectors: 2 x Speakon NL4 wired pin 1+: LFpositive, pin1-: LF negative, pin2+: MF/HF positive, pin2-: MF/HF negative
  • Accessories (not included):
    • FB-400 Flybar
    • GS-400 Ground Stacking Block
