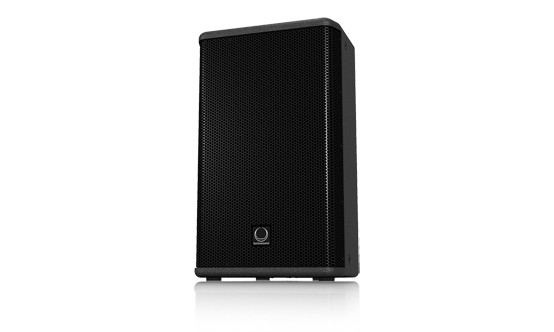

Turbosound TVX122M
500W 12" 2-Way Full Range Speaker/ Floor Monitor in Black

OUR PART #  TVX122M

Our Price: $449.99
List Price: $517.49
You save 13%! (Low Price Guarantee)
In Stock

The 2 way full range TVX122M is a switchable passive/bi-amp 12" 2,000 Watt loudspeaker system that is ideally suited for a wide range of portable speech and music sound reinforcement applications. The TVX122M is designed to work in conjunction with TURBOSOUND loudspeaker management systems, providing optimal performance for FOH, side fill and floor monitor applications, as well as offering considerable flexibility to readily adapt to varying venue requirements.

The TVX122M loudspeaker features a carbon fibre loaded 12" low frequency driver with inside/outside wound coil with low mass voice coil for improved transient response, and an aluminium dome 1" neodymium motor compression driver mounted on a 70° horizontal by 70° vertical low distortion waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch.

Finished in a highly durable semi matt black paint, the cabinet is constructed from 15 mm (5/8") birch plywood, and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. The TVX122M includes internal M10 threaded rigging points for permanent installation, a dual-angle pole mount socket for high or low height use with 35 mm poles/speaker stands to optimise audience coverage, and durable handles for easy transport. The dual angle wedge design also enables the TVX122M to be utilised in low profile stage monitor applications where improved audience line of sight is of paramount importance. Two Neutrik speakON* NL4 connectors are provided for input and link connections to additional enclosures.

Turbosound TVX122M Features:

  • 2 way full range loudspeaker and stage monitor forportable PA and installation applications
  • 500 Watts continuous, 2,000 Watts peak power
  • Carbon fibre loaded 12" low frequency driver withinside/outside wound coil
  • Aluminium dome 1" neodymium motor compression driver
  • Low profile design to maximise audience sight lines
  • Switchable passive/bi-amp operation for flexibility ofuse
  • Low distortion waveguide provides 70° H x 70° Vdispersion
  • 15 mm (5/8") birch plywood enclosure with hard wearingsemi matt black paint finish
  • Rugged powder coated perforated steel mesh grille
  • Dual angle pole mount for accurate audience coverage
  • Durable handles for easy lifting and carrying
  • Multiple internal rigging points for installationapplications
  • Neutrik speakON* NL4 connectors for reliable long lifeoperation
  • 3-Year Warranty Program**
  • Designed and engineered in England

Turbosound TVX122M Specifications:

  • Frequency Response:
    • 85 Hz - 20 kHz ±3 dB;
    • 55 Hz - 20 kHz -10 dB
  • Nominal Dispersion:  70° H x 70° V @ -6 dB points
  • Directivity Factor (Q):  9.4
  • Directivity Index (DI):  9.7
  • Power Handling (IEC):
    • Passive:  500 W continuous, 2,000 W peak
    • Bi-Amp:
      • LF: 500 W continuous, 2,000 W peak;
      • HF: 40 W continuous, 160 W peak
  • Sensitivity:  97 dB (1 W @ 1 m)
  • Maximum SPL:
    • Passive:  124 dB continuous, 130 dB peak
    • Bi-Amp:
      • LF: 124 dB continuous, 130 dB peak;
      • HF: 122 dB continuous, 128 dB peak
  • Impedance:
    • Passive:  8 Ohms
    • Bi-Amp:
    • LF: 8 Ohms;
    • HF: 6 Ohms
  • Crossover Type:  Passive / bi-amp switchable
  • Components:
    • 1 x 12" (316 mm) LF driver;
    • 1 x 1" (25 mm) HF compression driver
  • Connectors: 2 x Neutrik speakON* NL4
  • Wiring:
    • Passive:  Pins 1+ / 1- input, pins 2+ / 2- link
    • Bi-Amp:  Pins 1+ / 1- LF, pins 2+ / 2- HF
  • Dimensions HWD:  634 x 381 x 370 mm (25 x 15 x14.6")
  • Net Weight:  21.1 kg (46.5 lbs)
  • Construction:  15 mm (5/8") birch plywood
  • Finish: Semi matt black paint
  • Grille: Powder coated perforated steel
  • Flying Hardware: M12 x 12 points
