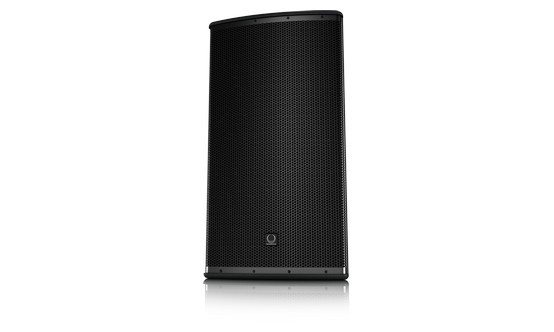

Turbosound TPZ152/64
650W 15" 2-Way Full Range Speaker in Black

OUR PART #  TPZ152/64

Our Price: $1,199.99
List Price: $1,379.99
You save 13%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The 2 way full range TPZ152/64 is a switchable passive/bi-amp 15" 2,600 Watt arrayable loudspeaker system that is ideally suited for a wide range of speech and music sound reinforcement applications. The TPZ152/64 is designed to work in conjunction with TURBOSOUND loudspeaker management systems, providing optimal FOH performance, as well as offering considerable flexibility to readily adapt to varying venue requirements.

The TPZ152/64 arrayable loudspeaker features a carbon fibre loaded 15" low frequency driver with inside/outside wound coil with low mass voice coil for improved transient response, and a titanium dome 1.4" neodymium motor high frequency compression driver mounted on a rotatable 60° horizontal by 40° vertical waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch.

Finished in a highly durable semi matt black paint, the cabinet is constructed from 15 mm (5/8") birch plywood – and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. Internal M10 threaded rigging points are provided for suspension in any orientation, or mounting with dedicated brackets – available separately. The rear panel connector plate carries Neutrik speakON* NL4 and barrier strip connectors for input and link connections to additional enclosures.

Turbosound TPZ152/64 Features:

  • Arrayable 2 way full range loudspeaker forinstallation applications
  • Rotatable waveguide with 60° H x 40° V dispersion
  • 650 Watts continuous, 2,600 Watts peak power
  • Carbon fibre loaded 15" low frequency driver withinside/outside wound coil
  • Titanium dome 1.4" neodymium motor compression driver
  • Multiple array configurations for extended coverage
  • Switchable passive/bi-amp operation for flexibilityof use
  • Trapezoidal cabinet shape enables visuallyunobtrusive loudspeaker arrays
  • Multiple internal rigging points allow bracket mountand suspension in any orientation
  • 15 mm (5/8") birch plywood enclosure with hardwearing semi matt black paint finish
  • Architecturally styled powder coated perforated steelmesh grille
  • Neutrik speakON* NL4 and barrier strip connectors
  • 3-Year Warranty Program**
  • Designed and engineered in England

Turbosound TPZ152/64 Specifications:

  • Frequency Response:  41 Hz – 18 kHz ±3 dB; 35 Hz– 20 kHz -10 dB
  • Nominal Dispersion:  60° H X 40° V @ -6 dBpoints, rotatable
  • Directivity Factor (Q):  18.3
  • Directivity Index (DI):  12.6
  • Power Handling (IEC):
    • Passive:  650 W continuous, 2,600 W peak
    • Bi-amp:
      • LF: 650 W continuous, 2,600 W peak
      • HF: 75 W continuous, 300 W peak
  • Sensitivity:  97 dB (1 W @ 1 m)
  • Maximum SPL:
    • Passive  125 dB continuous, 131 dB peak
    • Bi-amp:
      • LF: 125 dB continuous, 131 dB peak;
      • HF: 128 dB continuous, 134 dB peak
  • Impedance:
    • Passive:  8 Ohms
    • Bi-amp:
    • LF: 8 Ohms
    • HF: 6 Ohms
  • Crossover Type:  Passive / bi-amp switchable
  • Components:
    • 1 x 15" (394 mm) LF driver
    • 1 x 1.4" (36 mm) HF compression driver
  • Connectors:
    • 1 x Neutrik speakON* NL4
    • 1 x barrier strip terminals
  • Wiring:
    • Passive  Pins 1+ / 1- input, pins 2+ / 2- link
    • Bi-amp  Pins 1+ / 1- LF, pins 2+ / 2- HF
  • Dimensions HWD:  781 x 419 x 503 mm (30.7 x 16.5x 19.8")
  • Net Weight:  26.8 kg (59.0 lbs)
  • Construction:  15 mm (5/8") birch plywood
  • Finish:  Semi matt black paint
  • Grille:  Powder-coated perforated steel
  • Flying Hardware:  M12 x 12 points
  • Accessories (not included):  TPA152-WB wall bracketPRAGUE 15"

Turbosound TPZ152/64
650W 15" 2-Way Full Range Speaker in Black

OUR PART #  TPZ152/64

Product Information:

The 2 way full range TPZ152/64 is a switchable passive/bi-amp 15" 2,600 Watt arrayable loudspeaker system that is ideally suited for a wide range of speech and music sound reinforcement applications. The TPZ152/64 is designed to work in conjunction with TURBOSOUND loudspeaker management systems, providing optimal FOH performance, as well as offering considerable flexibility to readily adapt to varying venue requirements.

The TPZ152/64 arrayable loudspeaker features a carbon fibre loaded 15" low frequency driver with inside/outside wound coil with low mass voice coil for improved transient response, and a titanium dome 1.4" neodymium motor high frequency compression driver mounted on a rotatable 60° horizontal by 40° vertical waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch.

Finished in a highly durable semi matt black paint, the cabinet is constructed from 15 mm (5/8") birch plywood – and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. Internal M10 threaded rigging points are provided for suspension in any orientation, or mounting with dedicated brackets – available separately. The rear panel connector plate carries Neutrik speakON* NL4 and barrier strip connectors for input and link connections to additional enclosures.

Turbosound TPZ152/64 Features:

  • Arrayable 2 way full range loudspeaker forinstallation applications
  • Rotatable waveguide with 60° H x 40° V dispersion
  • 650 Watts continuous, 2,600 Watts peak power
  • Carbon fibre loaded 15" low frequency driver withinside/outside wound coil
  • Titanium dome 1.4" neodymium motor compression driver
  • Multiple array configurations for extended coverage
  • Switchable passive/bi-amp operation for flexibilityof use
  • Trapezoidal cabinet shape enables visuallyunobtrusive loudspeaker arrays
  • Multiple internal rigging points allow bracket mountand suspension in any orientation
  • 15 mm (5/8") birch plywood enclosure with hardwearing semi matt black paint finish
  • Architecturally styled powder coated perforated steelmesh grille
  • Neutrik speakON* NL4 and barrier strip connectors
  • 3-Year Warranty Program**
  • Designed and engineered in England

Turbosound TPZ152/64 Specifications:

  • Frequency Response:  41 Hz – 18 kHz ±3 dB; 35 Hz– 20 kHz -10 dB
  • Nominal Dispersion:  60° H X 40° V @ -6 dBpoints, rotatable
  • Directivity Factor (Q):  18.3
  • Directivity Index (DI):  12.6
  • Power Handling (IEC):
    • Passive:  650 W continuous, 2,600 W peak
    • Bi-amp:
      • LF: 650 W continuous, 2,600 W peak
      • HF: 75 W continuous, 300 W peak
  • Sensitivity:  97 dB (1 W @ 1 m)
  • Maximum SPL:
    • Passive  125 dB continuous, 131 dB peak
    • Bi-amp:
      • LF: 125 dB continuous, 131 dB peak;
      • HF: 128 dB continuous, 134 dB peak
  • Impedance:
    • Passive:  8 Ohms
    • Bi-amp:
    • LF: 8 Ohms
    • HF: 6 Ohms
  • Crossover Type:  Passive / bi-amp switchable
  • Components:
    • 1 x 15" (394 mm) LF driver
    • 1 x 1.4" (36 mm) HF compression driver
  • Connectors:
    • 1 x Neutrik speakON* NL4
    • 1 x barrier strip terminals
  • Wiring:
    • Passive  Pins 1+ / 1- input, pins 2+ / 2- link
    • Bi-amp  Pins 1+ / 1- LF, pins 2+ / 2- HF
  • Dimensions HWD:  781 x 419 x 503 mm (30.7 x 16.5x 19.8")
  • Net Weight:  26.8 kg (59.0 lbs)
  • Construction:  15 mm (5/8") birch plywood
  • Finish:  Semi matt black paint
  • Grille:  Powder-coated perforated steel
  • Flying Hardware:  M12 x 12 points
  • Accessories (not included):  TPA152-WB wall bracketPRAGUE 15"
