Turbosound TPZ122/64
600W 12" 2-Way Full Range Speaker in Black

OUR PART #  TPZ122/64

Our Price: $1,099.99
List Price: $1,264.99
You save 13%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

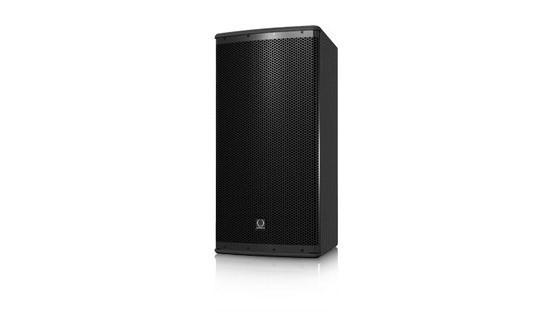

The 2 way full range TPZ122/64 is a switchable passive/bi-amp 12" 2,400 Watt arrayable loudspeaker system that is ideally suited for a wide range of speech and music sound reinforcement applications. The TPZ122/64 is designed to work in conjunction with TURBOSOUND loudspeaker management systems, providing optimal FOH performance, as well as offering considerable flexibility to readily adapt to varying venue requirements.

The TPZ122/64 arrayable loudspeaker features a carbon fibre loaded 12" low frequency driver with inside/outside wound coil with low mass voice coil for improved transient response, and a titanium dome 1.4" neodymium motor high frequency compression driver mounted on a rotatable 60° horizontal by 40° vertical waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch.

Finished in a highly durable semi matt black paint, the cabinet is constructed from 15 mm (5/8") birch plywood – and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. Internal M10 threaded rigging points are provided for suspension in any orientation, or mounting with dedicated brackets – available separately. The rear panel connector plate carries Neutrik speakON* NL4 and barrier strip connectors for input and link connections to additional enclosures.

Turbosound TPZ122/64 Features:

  • Arrayable 2 way full range loudspeaker forinstallation applications
  • Rotatable waveguide with 60° H x 40° V dispersion
  • 600 Watts continuous, 2,400 Watts peak power
  • Carbon fibre loaded 12" low frequency driver withinside/outside wound coil
  • Titanium dome 1.4" neodymium motor compression driver
  • Multiple array configurations for extended coverage
  • Switchable passive/bi-amp operation for flexibilityof use
  • Trapezoidal cabinet shape enables visuallyunobtrusive loudspeaker arrays
  • Multiple internal rigging points allow bracket mountand suspension in any orientation
  • 15 mm (5/8") birch plywood enclosure with hardwearing semi matt black paint finish
  • Architecturally styled powder coated perforated steelmesh grille
  • Neutrik speakON* NL4 and barrier strip connectors
  • 3-Year Warranty Program**
  • Designed and engineered in England

Turbosound TPZ122/64 Specifications:

  • Frequency Response:
    • 43 Hz – 18 kHz ±3 dB
    • 37 Hz – 20 kHz -10 dB
  • Nominal Dispersion:  60° H X 40° V @ -6 dBpoints, rotatable
  • Directivity Factor (Q):  18.3
  • Directivity Index (DI):  12.6
  • Power Handling (IEC):
    • Passive:  600 W continuous, 2,400 W peak
    • Bi-amp:
      • LF: 600 W continuous, 2,400 W peak
      • HF: 75 W continuous, 300 W peak
  • Sensitivity:  96 dB (1 W @ 1 m)
  • Maximum SPL:
    • Passive:  124 dB continuous, 130 dB peak
    • Bi-amp:
      • LF: 124 dB continuous, 130 dB peak
      • HF: 128 dB continuous, 134 dB peak
  • Impedance:
    • Passive:  8 Ohms
    • Bi-amp:
      • LF: 8 Ohms
      • HF: 6 Ohms
  • Crossover Type:  Passive / bi-amp, switchable
  • Components:
    • 1 x 12" (316 mm) LF driver;
    • 1 x 1.4" (36 mm) HF compression driver
  • Connectors:
    • 1 x Neutrik speakON* NL4
    • 1 x barrier strip terminals
  • Wiring:
    • Passive:  Pins 1+ / 1- input, pins 2+ / 2- link
    • Bi-amp:  Pins 1+ / 1- LF, pins 2+ / 2- HF
  • Dimensions HWD:  711 x 368 x 458 mm (28 x 14.5 x18")
  • Net Weight:  23.4 kg (51.5 lbs)
  • Construction:  15 mm (5/8") birch plywood
  • Finish:  Semi matt black paint
  • Grille:  Powder-coated perforated steel
  • Flying Hardware:  M10 x 15 points
  • Accessories:  TPA122-WB wall bracket PRAGUE 12”

Turbosound TPZ122/64
600W 12" 2-Way Full Range Speaker in Black

OUR PART #  TPZ122/64

Product Information:

The 2 way full range TPZ122/64 is a switchable passive/bi-amp 12" 2,400 Watt arrayable loudspeaker system that is ideally suited for a wide range of speech and music sound reinforcement applications. The TPZ122/64 is designed to work in conjunction with TURBOSOUND loudspeaker management systems, providing optimal FOH performance, as well as offering considerable flexibility to readily adapt to varying venue requirements.

The TPZ122/64 arrayable loudspeaker features a carbon fibre loaded 12" low frequency driver with inside/outside wound coil with low mass voice coil for improved transient response, and a titanium dome 1.4" neodymium motor high frequency compression driver mounted on a rotatable 60° horizontal by 40° vertical waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch.

Finished in a highly durable semi matt black paint, the cabinet is constructed from 15 mm (5/8") birch plywood – and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. Internal M10 threaded rigging points are provided for suspension in any orientation, or mounting with dedicated brackets – available separately. The rear panel connector plate carries Neutrik speakON* NL4 and barrier strip connectors for input and link connections to additional enclosures.

Turbosound TPZ122/64 Features:

  • Arrayable 2 way full range loudspeaker forinstallation applications
  • Rotatable waveguide with 60° H x 40° V dispersion
  • 600 Watts continuous, 2,400 Watts peak power
  • Carbon fibre loaded 12" low frequency driver withinside/outside wound coil
  • Titanium dome 1.4" neodymium motor compression driver
  • Multiple array configurations for extended coverage
  • Switchable passive/bi-amp operation for flexibilityof use
  • Trapezoidal cabinet shape enables visuallyunobtrusive loudspeaker arrays
  • Multiple internal rigging points allow bracket mountand suspension in any orientation
  • 15 mm (5/8") birch plywood enclosure with hardwearing semi matt black paint finish
  • Architecturally styled powder coated perforated steelmesh grille
  • Neutrik speakON* NL4 and barrier strip connectors
  • 3-Year Warranty Program**
  • Designed and engineered in England

Turbosound TPZ122/64 Specifications:

  • Frequency Response:
    • 43 Hz – 18 kHz ±3 dB
    • 37 Hz – 20 kHz -10 dB
  • Nominal Dispersion:  60° H X 40° V @ -6 dBpoints, rotatable
  • Directivity Factor (Q):  18.3
  • Directivity Index (DI):  12.6
  • Power Handling (IEC):
    • Passive:  600 W continuous, 2,400 W peak
    • Bi-amp:
      • LF: 600 W continuous, 2,400 W peak
      • HF: 75 W continuous, 300 W peak
  • Sensitivity:  96 dB (1 W @ 1 m)
  • Maximum SPL:
    • Passive:  124 dB continuous, 130 dB peak
    • Bi-amp:
      • LF: 124 dB continuous, 130 dB peak
      • HF: 128 dB continuous, 134 dB peak
  • Impedance:
    • Passive:  8 Ohms
    • Bi-amp:
      • LF: 8 Ohms
      • HF: 6 Ohms
  • Crossover Type:  Passive / bi-amp, switchable
  • Components:
    • 1 x 12" (316 mm) LF driver;
    • 1 x 1.4" (36 mm) HF compression driver
  • Connectors:
    • 1 x Neutrik speakON* NL4
    • 1 x barrier strip terminals
  • Wiring:
    • Passive:  Pins 1+ / 1- input, pins 2+ / 2- link
    • Bi-amp:  Pins 1+ / 1- LF, pins 2+ / 2- HF
  • Dimensions HWD:  711 x 368 x 458 mm (28 x 14.5 x18")
  • Net Weight:  23.4 kg (51.5 lbs)
  • Construction:  15 mm (5/8") birch plywood
  • Finish:  Semi matt black paint
  • Grille:  Powder-coated perforated steel
  • Flying Hardware:  M10 x 15 points
  • Accessories:  TPA122-WB wall bracket PRAGUE 12”
