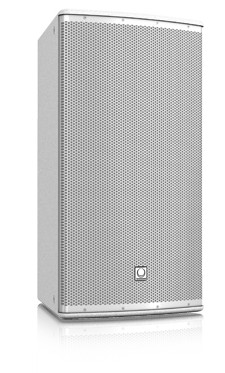

Turbosound TPA152/64-WH 500W 15" 2-Way Full Range Speaker In White
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The 2 way full range TPA152/95 is a switchable passive/bi-amp 15" 2,000 Watt arrayable loudspeaker system that is ideally suited for a wide range of speech and music sound reinforcement applications. The TPA152/95 is designed to work in conjunction with TURBOSOUND loudspeaker management systems, providing optimal FOH performance, as well as offering considerable flexibility to readily adapt to varying venue requirements.

The TPA152/95 arrayable loudspeaker features a carbon fibre loaded 15" low frequency driver with inside/outside wound coil with low mass voice coil for improved transient response, and an aluminium dome 1" neodymium motor compression driver mounted on a rotatable 90° horizontal by 50° vertical waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch.

Finished in a highly durable semi matt black paint, the cabinet is constructed from 15 mm (5/8") birch plywood – and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. Internal M10 threaded rigging points are provided for suspension in any orientation, or mounting with dedicated brackets – available separately. The rear panel connector plate carries Neutrik speakON* NL4 and barrier strip connectors for input and link connections to additional enclosures.

Turbosound TPA152/95 Features:

  • Arrayable 2 way full range loudspeaker for installation applications (Black or White)
  • Rotatable waveguide with 90° H x 50° V (TPA152/95),60° H x 40° V (TPA152/64) dispersion
  • 500 Watts continuous, 2,000 Watts peak power
  • Carbon fiber loaded 15" low frequency driver with inside/outside wound coil
  • Titanium dome 1.4" neodymium motor compression driver
  • Multiple array configurations for extended coverage
  • Switchable passive/bi-amp operation for flexibility of use
  • Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
  • Multiple internal rigging points allow bracket mount and suspension in any orientation
  • 15 mm (5/8") birch plywood enclosure with hardwearing semi matt black paint finish
  • Architecturally styled powder coated perforated steel mesh grille
  • Neutrik speakON* NL4 and barrier strip connectors
  • 3-Year Warranty Program**
  • Designed and engineered in England

Turbosound TPA152/95 Specifications:

  • Frequency Response:
      • 43 Hz – 18 kHz ±3 dB,
      • 37 Hz – 20 kHz -10 dB
    • Nominal Dispersion: 90° H x 50° V (TPA152/95),60° H x 40° V (TPA152/64) @ -6 dB points, rotatable
    • Directivity Factor (Q): 10.4
    • Directivity Index (DI): 10.2
    • Power Handling (IEC):
      • Passive: 500 W continuous, 2,000 W peak
      • Bi-amp:
      • LF: 500 W continuous, 2,000 W peak;
      • HF: 40 W continuous, 160 W peak
    • Sensitivity: 97 dB (1 W @ 1 m)
    • Maximum SPL:
    • Passive: 124 dB continuous, 130 dB peak
    • Bi-amp:
    • LF: 124 dB continuous, 130 dB peak;
    • HF: 122 dB continuous, 128 dB peak
  • Impedance:
    • Passive: 8 O
    • Bi-amp:
      • LF: 8 O
      • HF: 6 O
    • Crossover Type: Passive / bi-amp, switchable
    • Components:
      • 1 x 15" (394 mm) LF driver
      • 1 x 1" (25 mm) HF compression driver
    • Connectors:
      • 1 x Neutrik speakON* NL4,
      • 1 x barrier strip terminals
    • Wiring:
      • Passive: Pins 1+ / 1- input, pins 2+ / 2- link
      • Bi-amp: Pins 1+ / 1- LF, pins 2+ / 2- HF
    • Dimensions HWD: 781 x 419 x 503 mm (30.7 x 16.5x 19.8")
    • Net Weight: 27.0 kg (59.4 lbs)
    • Construction: 15 mm (5/8") birch plywood
    • Finish: Semi matt white paint
    • Grille: Powder-coated perforated steel
    • Flying Hardware: M10 x 15 points
    • Accessories (not included): TPA152-WB wall bracket PRAGUE 15"
