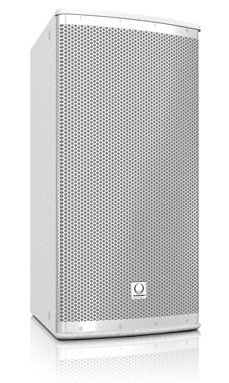

Turbosound TPA122/64-WH
500W 12" 2-Way Full Range Speaker in White

OUR PART #:  TPA122/64-WH

Our Price: $699.99
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Turbosound TPA122/64-WH
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The 2 way full range TPA122/00 is a switchable passive/bi-amp 12" 2,000 Watt arrayable loudspeaker system that is ideally suited for a wide range of speech and music sound reinforcement applications. The TPA122/00 is designed to work in conjunction with TURBOSOUND loudspeaker management systems, providing optimal FOH performance, as well as offering considerable flexibility to readily adapt to varying venue requirements.

The TPA122/00 arrayable loudspeaker features a carbon fibre loaded 12" low frequency driver with inside/outside wound coil with low mass voice coil for improved transient response, and an aluminium dome 1" neodymium motor compression driver mounted on a 100° horizontal by 100° vertical waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch.

Finished in a highly durable semi matt white paint, the cabinet is constructed from 15 mm (5/8") birch plywood – and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. Internal M10 threaded rigging points are provided for suspension in any orientation, or mounting with dedicated brackets – available separately. The rear panel connector plate carries Neutrik speakON* NL4 and barrier strip connectors for input and link connections to additional enclosures.

Turbosound TPA122/64 Features:

  • Arrayable 2 way full range loudspeaker forinstallation applications
  • Wide 60° H x 40° V (TPA122/64), 90° H x 50° V(TPA122/95), 100° H x 100° V (TPA122/00) dispersion waveguide
  • 500 Watts continuous, 2,000 Watts peak power
  • Carbon fibre loaded 12" low frequency driver withinside/outside wound coil
  • Aluminium dome 1" neodymium motor compression driver
  • Multiple array configurations for extended coverage
  • Switchable passive/bi-amp operation for flexibilityof use
  • Trapezoidal cabinet shape enables visuallyunobtrusive loudspeaker arrays
  • Multiple internal rigging points allow bracket mountand suspension in any orientation
  • 15 mm (5/8") birch plywood enclosure with hardwearing semi matt black paint finish
  • Architecturally styled powder coated perforated steelmesh grille
  • Neutrik speakON* NL4 and barrier strip connectors
  • 3-Year Warranty Program**
  • Designed and engineered in England

Turbosound TPA122/64 Specifications:

  • Frequency Response:
    • 45 Hz – 18 kHz ±3 dB
    • 40 Hz – 20 kHz -10 dB
  • Nominal Dispersion:  60° H x 40° V (TPA122/64),90° H x 50° V (TPA122/95), 100° H x 100° V (TPA122/00) @ -6 dB Points
  • Directivity Factor (Q):  5
  • Directivity Index (DI):  7
  • Power Handling (IEC):
    • Passive:  500 W continuous, 2,000 W peak
    • Bi-amp:
      • LF: 500 W continuous, 2,000 W peak
      • HF: 40 W continuous, 160 W peak
  • Sensitivity:  97 dB (1 W @ 1 m)
  • Maximum SPL:
    • Passive:  124 dB continuous, 130 dB peak
    • Bi-amp:
      • LF: 124 dB continuous, 130 dB peak
      • HF: 122 dB continuous, 128 dB peak
  • Impedance:
    • Passive:  8 O
    • Bi-amp:
      • LF: 8 O
      • HF: 6 O
  • Crossover Type:  Passive / bi-amp, switchable
  • Components:
    • 1 x 12" (316 mm) LF driver
    • 1 x 1" (25 mm) HF compression driver
  • Connectors:
    • 1 x Neutrik speakON* NL4
    • 1 x barrier strip terminals
  • Wiring
    • Passive:  Pins 1+ / 1- input, pins 2+ / 2- link
    • Bi-amp:  Pins 1+ / 1- LF, pins 2+ / 2- HF
  • Dimensions HWD:  711 x 368 x 458 mm (28 x 14.5 x18")
  • Net Weight:  23.2 kg (51.1 lbs)
  • Construction:  15 mm (5/8") birch plywood
  • Finish:  Semi matt white paint
  • Grille:  Powder-coated perforated steel
  • Flying Hardware:  M10 x 15 points
  • Accessories (not included):  TPA122-WB wall bracketPRAGUE 12"
