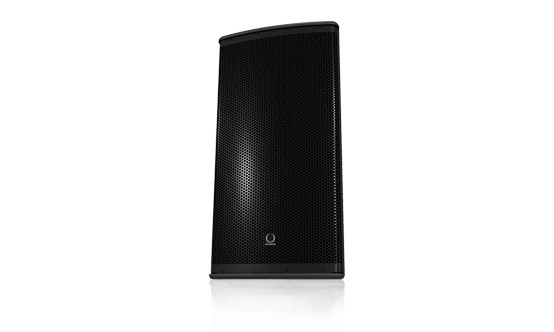

Turbosound TPA122/00
500W 12" 2-Way Full Range Speaker in Black

OUR PART #  TPA122/00

Our Price: $949.99
List Price: $1,092.49
You save 13%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The 2 way full range TPA122/00 is a switchable passive/bi-amp 12" 2,000 Watt arrayable loudspeaker system that is ideally suited for a wide range of speech and music sound reinforcement applications. The TPA122/00 is designed to work in conjunction with TURBOSOUND loudspeaker management systems, providing optimal FOH performance, as well as offering considerable flexibility to readily adapt to varying venue requirements.

The TPA122/00 arrayable loudspeaker features a carbon fibre loaded 12" low frequency driver with inside/outside wound coil with low mass voice coil for improved transient response, and an aluminium dome 1" neodymium motor compression driver mounted on a 100° horizontal by 100° vertical waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch.

Finished in a highly durable semi matt black paint, the cabinet is constructed from 15 mm (5/8") birch plywood – and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. Internal M10 threaded rigging points are provided for suspension in any orientation, or mounting with dedicated brackets – available separately. The rear panel connector plate carries Neutrik speakON* NL4 and barrier strip connectors for input and link connections to additional enclosures.

Turbosound TPA122/00 Features:

  • Arrayable 2 way full range loudspeaker forinstallation applications
  • Wide 60° H x 40° V (TPA122/64), 90° H x 50° V(TPA122/95), 100° H x 100° V (TPA122/00) dispersion waveguide
  • 500 Watts continuous, 2,000 Watts peak power
  • Carbon fibre loaded 12" low frequency driver withinside/outside wound coil
  • Aluminium dome 1" neodymium motor compression driver
  • Multiple array configurations for extended coverage
  • Switchable passive/bi-amp operation for flexibility ofuse
  • Trapezoidal cabinet shape enables visually unobtrusiveloudspeaker arrays
  • Multiple internal rigging points allow bracket mountand suspension in any orientation
  • 15 mm (5/8") birch plywood enclosure with hard wearingsemi matt black paint finish
  • Architecturally styled powder coated perforated steelmesh grille
  • Neutrik speakON* NL4 and barrier strip connectors
  • 3-Year Warranty Program**
  • Designed and engineered in England

Turbosound TPA122/00 Specifications:

  • Frequency Response:
    • 45 Hz – 18 kHz ±3 dB
    • 40 Hz – 20 kHz -10 dB
  • Nominal Dispersion:
    • 60° H x 40° V (TPA122/64)
    • 90° H x 50° V (TPA122/95)
    • 100° H x 100° V (TPA122/00) @ -6 dB Points
  • Directivity Factor (Q): 5
  • Directivity Index (DI): 7
  • Power Handling (IEC):
    • Passive: 500 W continuous, 2,000 W peak
    • Bi-amp:
      • LF: 500 W continuous, 2,000 W peak
      • HF: 40 W continuous, 160 W peak
  • Sensitivity:  97 dB (1 W @ 1 m)
  • Maximum SPL:
    • Passive:  124 dB continuous, 130 dB peak
    • Bi-amp:
      • LF: 124 dB continuous, 130 dB peak
      • HF: 122 dB continuous, 128 dB peak
  • Impedance:
    • Passive:  8 O
    • Bi-amp:
      • LF: 8 O,
      • HF: 6 O
  • Crossover Type:  Passive / bi-amp, switchable
  • Components:
    • 1 x 12" (316 mm) LF driver
    • 1 x 1" (25 mm) HF compression driver
  • Connectors:
    • 1 x Neutrik speakON* NL4,
    • 1 x barrier strip terminals
  • Wiring:
    • Passive:  Pins 1+ / 1- input, pins 2+ / 2- link
    • Bi-amp:  Pins 1+ / 1- LF, pins 2+ / 2- HF
  • Dimensions HWD:  711 x 368 x 458 mm (28 x 14.5 x18")
  • Net Weight:  23.2 kg (51.1 lbs)
  • Construction:  15 mm (5/8") birch plywood
  • Finish:  Semi matt black paint
  • Grille:  Powder-coated perforated steel
  • Flying Hardware:  M10 x 15 points
  • Accessories (not included): TPA122-WB wall bracketPRAGUE 12"
