Sony SRG300HW/PAC4
SRG-300H/W PTZ Camera with RC4-SRG Package


Our Price: $4,134.74
List Price: $4,599.00
You save 10%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

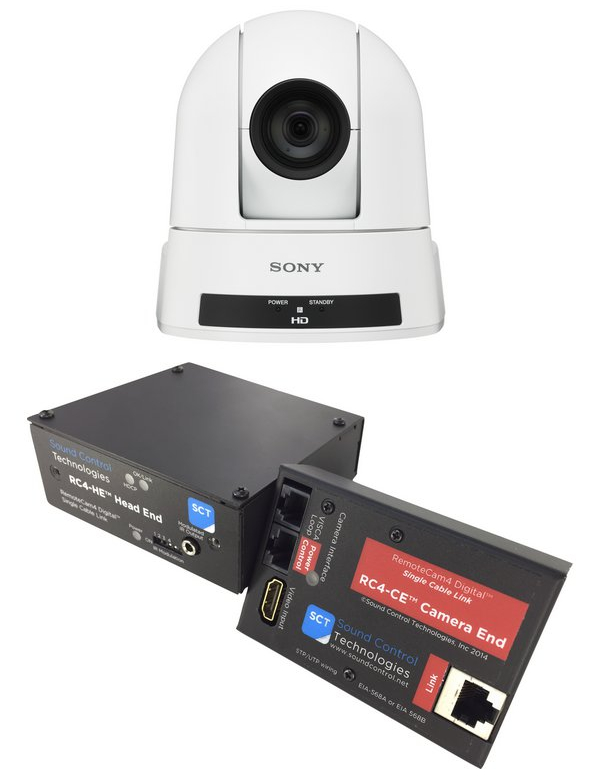

Sony has found the easy way to get connected - with EZ-2-Connect™ that packs power, video, and control solutions all into one package. This particular kit, the SRG-300HW/PAC4 is a Single Cable Solution Kit featuring the SRG-300H/W PTZ camera as well as the RC4-SRG Head-End & Camera Interface Module. Installation headaches are a thing of the past when you combine a high-quality, reliable Sony PTZ camera with a CAT5e/6 cabling kit. Ideal for faith-based communities, healthcare, education, government, videoconferencing, and sports, the EZ-2-Connect PTZ package provides quick and easy installation of EVI, SRG, and BRC PTZ cameras with a Sound Control Technologies Cable Connection Kit. With standard Ethernet cables, you can easily power and control Sony PTZ cameras – saving both time and money.

SRG-300H/W PTZ Camera
For stunning image quality together with smooth robotic control, all at an affordable price, look into Sony's SRG-300H/W, part of the SRG series. The SRG series joins Sony's widely used EVI and BRC product lines, giving customers a greater choice of high-quality remote camera options. The SRG-300H/W is a desktop and ceiling mount 1080p/60 HD PTZ camera with a 30x optical zoom. It integrates Sony's high sensitivity 1/2.8-type Exmor™ CMOS sensor along with the latest imaging technology and field-proven operability.

The SRG-300H/W includes View-DR processing to rule the harshest lighting conditions, as well as the industry recognized VISCA™ protocol, plus built-in IP control. It comes in a white housing, and works great for house of worship, distance learning, videoconferencing, entertainment/seminar venues, and remote monitoring of small to medium sized rooms.

RC4-SRG (RemoteCam4™)
The RemoteCam4 camera extension module offers a cost and time saving alternative when integrating digital high definition PTZ cameras into a wide variety of presentation locales. The RemoteCam4 provides a reliable and  "transparent" link between the camera and head-end.

SRG-300HW/PAC4 Includes:

  • SRG-300H/W PTZ Camera (White)
  • Camera and Codec/Head-End Interface Modules
  • 1ft HDMI Camera Cable
  • RJ45 to Power/Control IR
  • 1ft DC Power Camera Cable
  • RJ11 to 8-pin Mini Din VISCA out cable
  • 3ft HDMI Camera Head-End Cable
  • Power Supply
  • VISCA loop 8-pin Mini Din to 9-pin Head-End
  • Null Modem DB89 Serial Head-End Cable

SRG300HW/PAC4 Features:

SRG-300H/W Camera

  • High Image Quality - The SRG cameras incorporate Sony’s high-sensitivity 1/2.8 -type Exmor CMOS sensor and the latest View-DR™ technology. Also, their 60p shooting capability realizes smooth, reduced blur, life-like images.
  • View-DR (Wide Dynamic Range) Feature - View-DR provides extremely wide dynamic range with Sony’s full-capture Wide-D technology - utilizing the Exmor™ CMOS sensor’s high-speed readout capability and Visibility Enhancer (VE) that provides a high level of chrominance and luminance. Achieves up to 130dB. (29.97fps)
  • XDNR™ Technology - XDNR technology reduces noise and provides clear images in both moving and still objects under low-light conditions.
  • Camera Control - VISCA over IP technology allows for control of the camera over an IP connection.

RC4-SRG (RemoteCam4) Provides:

  • Camera Power
  • Digital Video up to 1080p60
  • RS232 or HDMI Camera Control
  • Visca Control Loop
  • Wired and modulated IR
  • Distances up to 300’ over a single CAT5e or CAT6 UTP cable

SRG-300H/W Camera Specifications:


  • Image Device: 1/2.8 Exmor CMOS
  • Lens: 30x Optical/12x Digital Zoom Lens
  • Focal Length: f=4.3mm (wide) to 129mm (tele)
  • Focal Length - F:  F1.6 to 4.7
  • Minimum Object Distance: 10mm (wide end) / 1200mm (tele end)
  • Shutter Speed:
    • 1/1 to 1/10000 sec (59.94 Hz system)
    • 1/1 to 1/10000 sec (50 Hz system)
  • White Balance: Auto, Indoor, Outdoor, One-Push Auto, ATW, Manual
  • Pan Angle/Speed
    • Angle: +/- 170°
    • Speed: 100°/sec
  • Tilt Angle/Speed:
    • Angle: +90°/-20°
    • Speed: 90°/sec
  • Horizontal Viewing Angle: 65° (wide)
  • Preset Positions: 16 presets
  • Control Interface: VISCA protocol with onboard IP control
  • Camera Control Interface: RJ-45 / RS-232C / RS-422

Video Output

  • Minimum Illumination: 1.4 lx (50 IRE, F1.6, 30 fps)
  • S/N Ratio: 50 dB
  • Video Output: HDMI
  • Signal System:
    • 1080/59.94p, 50p, 29.97p, 25p
    • 1080/59.94i, 50i
    • 720/59.94p, 50p, 29.97p, 25p


  • Camera Housing Color: White
  • Dimensions: 6-1/4" W x 6-1/2" H x 6-1/2" D (157 x 164 x 163mm)
  • Weight: 3 lbs, 3.4 oz (1.4 kg)
  • Power Requirements: DC 12V (DC10.8 - 13.2V)
  • Power Consumption: 16.8W
  • Operating Temperature: 32° F to +104° F (0° C to +40° C)
  • Storage Temperature: -4° F to +140° F (-20° C to +60° C)
