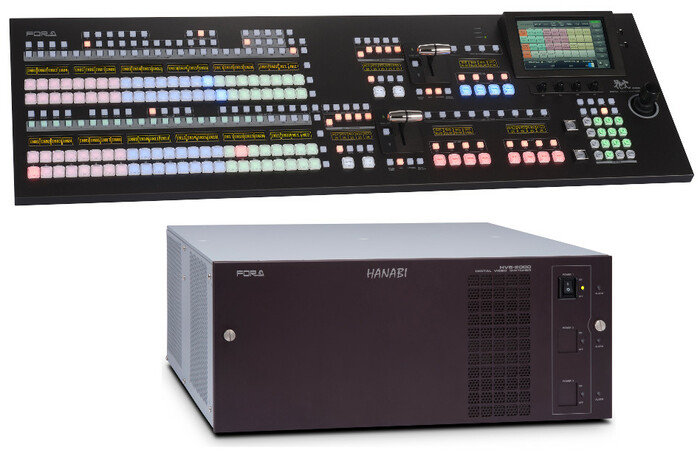

FOR-A Corporation HVS-2000-A
Hanabi 3G/HD/SD 2 Full Mix/Effects Video Switcher with Operation Unit Package

OUR PART #:  HVS-2000-A

FOR-A HVS-2000MU Back/Connectors Panel View
FOR-A HVS-2240OU Back Panel View
FOR-A HVS-2240OU Front View

Click a thumbnail to see more images. (7 total)

Similar Products



2 Full Mix/Effects Switcher
The new HVS-2K engine is a powerful 6 Video M/E machine and a game changer in today's video production switchers. Now with the power in our new HVS-2K technology, the V6MU engine can be used in a variety of applications.
• Up stream transition effects
• Down stream transition effects
• Add the pure power of 6 real M/E's for multiple independent on stage monitor display control…each with mixes, wipes, keys, and DVE including preview control.
Users of the new HANABI will win the video production race with its high-quality, efficiency, easy operation system.

FOR-A Corporation HVS-2000-A Includes:

  • HVS-2240OU, 24 Button Operation Unit
  • HVS-2000MU, HVS-2000MainSwitcher Unit
  • HVS-2000PSO, Redundant Power Supply for HVS-2240OUOperationUnit
  • HVS-2000PSM, Redundant Power Supply for HVS-2000MU MainUnit

FOR-A Corporation HVS-2000-A Features:

  • 6 M/E capability: 2 M/E + UNIQUE 4 MELite™ with FLEXaKEY™ architecture
    • FLEXaKEY™
      Powerful quad FLEXaKEY™ allows the operator to place keyers in practical areas of the switcher:
          -Add keys to traditional M/E resources to provide more graphic layers
          -Add keys to AUX and multiply additional M/E's (MELite™)
          -Can also expand and multiply AUX bus transitions
      The HVS-2000 V6 engine is the only system that offers this kind of pure power and user flexibility.
    • MELite™
      This powerful, distinguishing and core feature allows a traditional AUX bus to transform into a full functional M/E with cuts, mixes, wipes, keys all with preview (MELite™). The MELite is the building block to a real full function 6M/E switcher and can be assigned upstream or downstream to the main mix effects. Also, MELite™ allows configuration of 3 M/E switcher which provides independent output with transition function to display sources on back monitors in the studio.
  • 24 in/18 out standard. Up to 48 in/18 out or 40 in/22 out(optional-contact your Sales Professional for more information)
  • 6 I/O expansion slots: HVS-100 series optional cards can be installed
  • PGM, PVW and 2 CLEAN outputs per M/E
  • Multi format: HD/SD/HDMI/Analog/VGA (optional)
  • 3G/4K Ready (S/W option)
  • 4 x Keyers per M/E, and 4 x FLEXaKEYs™ (assignable to DSK, M/E or AUX) Upto 6 keyers to M/E1, up to 8 keyers to M/E2, and up to 4 keyers to AUX areassignable
  • 8x 2.5D DVE plus 4x 3D DVE (3D DVE is optional)
  • 18 Auxiliary buses (2 HDMI, 12 AUX transition, 6 MELite™ function)
  • Control panel with RGB color buttons and 7-inch touch panel GUI
  • 4 Multi viewers (standard: 2, up to 64 windows)
  • All inputs have FS with Still image store and capture
  • 4 Still/Clip media player. Image store is 4 channel, with access to poolof 900 frames/ 30 seconds of on line clip playback
  • Chroma keyers + 2 Advanced Chroma Keyers (optional-sold separately)
  • Easy operation with Midas Touch™: ONStage™ mode for stage and multiscreenapplication
    • Midas Touch™**
      A New menu system that can be used for easy configuration changes and easy full-system control. Operators will feel they are finding gold every time they make menu changes.
      **REQUIRES HVS-2000GUI External Touch Screen (sold separately).
    • ONStage™
      ONStage™ is an extremely powerful capability, exclusive to FOR-A! With ONStage™ mode and our agile MELite™, operators can now preview the MELite™ before mix, wipe, and keying. In addition, operators can assign multiple MELites so the operator has delegable manual lever arm transition control and assign keyer functions. With MELite™ and ONStage™, any staging venue can operate a main center Program display and operate multiple independent Image Magnification displays. Never before has this sort of power and creativity been offered to videoprofessionals.
  • Other features:
    P-MEM™
    P-MEM™ is capable of memorizing andrecalling full switcher set-up or series of operations on M/E, MELite™, andAUX. P-MEM™ can be used with macro functions and operators only need to pushone button to perform complex series of events.

FOR-A Corporation HVS-2000-A Specifications:

  • Video Formats:  1080/59.94i, 1080/50i, 1080/23.98PsF, 1080/24PsF,1080/25PsF, 1080/29.97PsF, 720/59.94p, 720/50p, 525/60 (NTSC), 625/50 (PAL)
  • Video Formats (optional-sold separately):  1080/59.94p, 1080/50pLeve-A
  • Video Inputs:  HD-SDI: 1.5 / 3.0 Gbps or SD-SDI: 270 Mbps, 75 Ohm,BNC x 24 (FSs on all inputs)
  • Video Inputs (optional-sold separately):
    • HVS-100DI-A:
      • HD-SDI: 1.5 / 3.0 Gbps or SD-SDI: 270 Mbps, 75 Ohm, BNC x 4 (FSs on all inputs and resize engines on 2 inputs)
    • HVS-100AI:
      • HD analog component, SD analog component, analog composite
    • HVS-100PCI:
      • HDMI*: XGA to WUXGA/HDTV (1080i), XGA to WUXGA (720p), VGA to XGA (SD)
      • RGB: XGA to WUXGA/HDTV (1080i), XGA to WUXGA (720p), VGA to XGA (SD)
  • Number of Video Inputs:  Standard: SDI x 24 / Max.: SDI x 48
  • Video Outputs:
    • HD-SDI: 1.5 / 3.0 Gbps
    • SD-SDI: 270 Mbps, 75 Ohm, BNC x 16, HDMI x 2
  • Video Outputs (optional-sold separately):
    • HVS-100DO:
      • HD-SDI: 1.5 / 3.0 Gbps
      • SD-SDI: 270 Mbps, 75 Ohm, BNC x 4 (Downconverters on 2 outputs)
    • HVS-100AO:
      • HD analog component, SD analog component, analog composite
    • HVS-100PCO:
      • HDMI*: SXGA to WUXGA/HDTV (1080i), SXGA to WXGA (720p), SVGA/SDTV (SD)
      • RGB: SXGA to WUXGA/HDTV (1080i), SXGA to WXGA (720p), SVGA(SD)
  • Number of Video Outputs:
    • Standard: HD-SDI x 16, HDMI x 2
    • SDI x 20, HDMI x 2
    • SDI x 16, HDMI x 2, Analog x 4
    • SDI x 16, HDMI x 6
  • Signal Processing:  4: 2: 2: 4, digital component
  • Quantization:  HD/SD-SDI: 10-bit
  • Effect  WIPE: 100 patterns, border and softness / 2.5 DVE: 56patterns or more DVE WIPEs
  • Transition:  Available controller: Fader controller, AUTO or CUTbutton / Type: MIX or WIPE (DVE included)
  • Still Store / Clip:  4 channels (with backup feature), Each store canhold up to 900 frames of HD video, Input Stills on all inputs
  • Keyer/FLEXaKEY™  Keyer:
    • 4 channels for each M/E bus
    • FLEXaLEY™: 4 channels in all (can be assigned to M/E 1, M/E 2, or AUX)
  • Multi-viewer:  Standard: 2 channels / Max.: 4 channels (64 windows),2/4/5/7/9/10/11/13/16-way split views with title, tally, and audio level meterdisplay
  • Proc. Amp.:  Equipped with all inputs
  • Event Memory:  100 events (complementary transition available whenloading events)
  • Macro Function  100 memories, 30 actions
  • Genlock Input  BB: NTSC: 0.429 Vp-p/PAL: 0.45 Vp-p or Tri-level Sync:0.6 Vp-p, 75, BNC x 1, loop-through
    (to be terminated with 75Ohm terminator, if unused)
  • System Phase Adjust:  Horizontal: -1/2H to +1/2H
  • Genlock Output:  BB: NTSC: 0.429 Vp-p/PAL: 0.45 Vp-p or Tri-levelSync: 0.6 Vp-p, 75, BNC x 1
  • I/O Delay:
    • 1H (minimum delay)
    • 1 to 2 frames +1H (when FS or re-size engine used)
    • 2 to 3 frames +1H (when FS or re-size engine plus DVE used)
    • 3 to 4 frames +1H (when FS or re-size engine plus output resize engine used)
  • External Memory:  USB 2.0
  • Interface:
    • LAN1 (MAIN): RJ-45 x 1
    • LAN2 (SUB): RJ-45 × 1
    • GPI IN: D-sub15, GPI OUT: D-sub25
    • RS-422**: 9-pin D-sub (female) x 6
    • HVS-2240OU: RJ-45 x 2, GPI-IN/OUT 25-pin D-sub (female) x 1
  • Interface***:  ARCNET: 75 Ohm, BNC x 2, loop-through (to beterminated with 75 Ohm terminator, if unused.)
  • Temperature / Humidity (no condensation):  10% to 90% (0°C to40°C)
  • Power / Consumption:
    • HVS-2000: 100 V AC to 240 V AC ±10%, 50/60 Hz / Approx. 850 W
    • HVS-2240OU: 100 V AC to 240 V AC ±10%, 50/60 Hz / Approx. 100 W
  • Physical Characteristics:
    • HVS-2000:
      • Dimensions (WxHxD):  Approx. 430mm x 177mm x 500mm
      • Weight:  Approx. 25 kg (provisional value) (incl. optional cards: Approx. 30 kg)
    • HVS-2240OU:
      • Dimensions (WxHxD):  Approx. 1060mm x 149mm x 354mm
      • Weight:  Approx. 20 kg
  • Consumables:  Power supply unit (to be replaced every 5 years),Cooling fan (to be replaced every 4 years)

Notes:
* HDCP-incompatible
** For the tally unit connection or EDITOR port (BVS/DVS or GVG-200 protocols)
*** For control panel

Some provisional information and specifications provided; all information and specifications subject to change without notice.
