Turbosound TCS-152/94-R
15" 500W (8 Ohms) Weather Resistant 2-Way Full-Range Passive/Bi-Amp Loudspeaker with 90°x40° Dispersion in Black

OUR PART #  TCS152/94-R

Our Price: $1,899.99
List Price: $2,184.99
You save 13%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

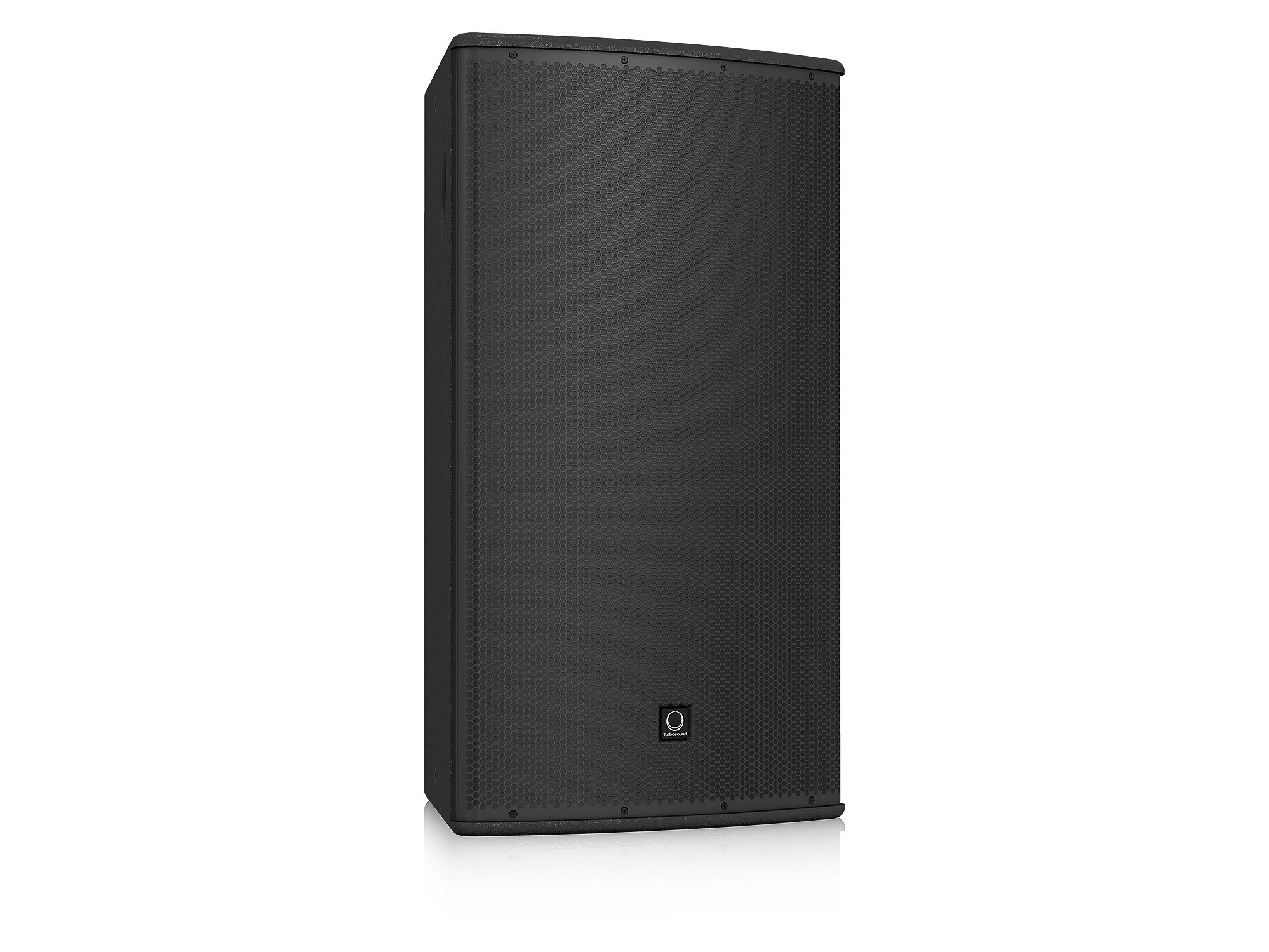

The Turbosound TCS-152/94-R is an IP54-rated weather resistant, switchable bi-amp/passive two way full range loudspeaker designed for use in a wide range of fixed installations, and consisting of a 15" low frequency driver and a 1.4" neodymium high frequency compression driver loadedby a rotatable Dendritic waveguide providing a 90° horizontal by 40° vertical HF horn pattern in an optimally tuned enclosure. These high grade components are matched with an internal passive crossover, which can be bypassed for fully bi-amped operation.

The cabinet is constructed from 15mm (5/8") birch plywood, with a powder coated perforated steel mesh grille backed with reticulated foam. The trapezoidal cabinet shape conveniently allows the TCS-152/94-R to be tight packed with other TCS series enclosures. Multiple rigging points, supported by internal steel flying strips, are provided on the top, bottom, sides and rear of the cabinet to enable it to be suspended and angled in permanent installations using M10 shoulder eyebolts. The TCS-152/94-R is also fitted with internal rigging points for use with Turbosound and OmniMount wall and ceiling brackets.

A Neutrik speakON NL4 speaker connector is located on the rear panel wired in parallel with a 4-way barrier strip providing input and link through connections to additional TCS series cabinets. The TCS-152/94-R is finished in durable black semi matte textured paint and is designed for outdoor use, with all components rated to IP54 and fitted with a captive cable tail secured through a sealed cable gland on an aluminum panel.

Turbosound TCS-152/94-R Features:

  • Arrayable 2 way full range loudspeaker for installation applications
  • IP54-rated weather resistant components
  • Rotatable Dendritic waveguide with 90° x 40° dispersion
  • 500 Watts continuous, 2,000 Watts peak power
  • 15” low frequency driver
  • 1.4” neodymium HF compression driver
  • Multiple array configurations for extended coverage
  • Switchable passive/bi-amp operation for flexibility of use
  • Double trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
  • Multiple internal rigging points allow bracket mount and suspension in any orientation
  • 15mm (5/8”) birch plywood enclosure with hard wearing semi matte black paint finish
  • Architecturally styled powder coated perforated steel mesh grille
  • Neutrik speakON NL4 and barrier strip connectors
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound TCS-152/94-R Specifications:

  • Components:  1x 15" (381 mm) LF Driver, 1x 1.4" (35 mm) HF Driver
  • Frequency Response:  65 Hz - 20 kHz (±3dB), 45 Hz - 20 kHz (±10dB)
  • Dispersion:  90° H x 40° V @ -6dB Points. Horn Pattern Rotatable Within the Enclosure
  • Sensitivity (1 W @ 1 M):
    • HF:  104dB
    • LF:  95dB
    • Passive:  95dB
  • Power Handling:
    • HF:  100 Watts Continuous, 400 Watts Peak
    • LF:  500 Watts Continuous, 2,000 Watts Peak
    • Passive:  500 Watts Continuous, 2,000 Watts Peak
  • Calculated Max SPL:
    • HF:  124dB Continuous, 130dB Peak
    • LF:  122dB Continuous, 128dB peak
    • Passive:  122dB Continuous, 128dB Peak
  • Nominal Impedance:
    • HF:  8 Ohms
    • LF:  8 Ohms
    • Passive:  8 Ohms
  • Crossover:  Internal Passive Network at 1.2 kHz, 12 dB / Octave Low Pass, 24 dB / Octave high Pass
  • Construction:  15mm (5/8”) birch plywood finished in semi matte black paint
  • Grille:  Powder Coated Perforated Steel with Foam Backing
  • Connectors:  Neutrik speakON NL4, wired Pin1+: Positive, Pin 1-: Negative, Pins 2+ and 2-: N/C (Passive); Pin1+: LF Positive, Pin1-: LF Negative, Pin2+: HFPositive, Pin2-: HF Negative (Bi-amp); 4-Way Barrier Strip Connector
  • Rigging:
    • 9x M10 Internal Rigging Points with Internal Steel Strips for M10 Eyebolts
    • 4x M10 Internal Rigging Points for Turbosound Brackets
    • 4x M8 Internal Rigging Points for OmniMount Brackets
  • Standards:  IP54 Weather Resistance Rating
  • Dimensions (HxWxD):  33" x 18.5" x 17" (838mm x 469mm x 433mm)
  • Net Weight:  79.2 lbs (36 kg)
