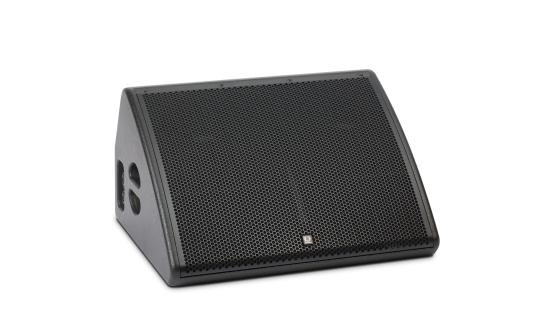

Turbosound TFM-560 Dual 12" 2-Way Bi-Amped Stage Monitor, 800W, Black

The TURBOSOUND TFM-560 is a high performance 3,200 Watt bi-amped floor monitor designed for use with TURBOSOUND’s DSP based Power Management Systems for all types of professional live sound monitoring applications.

The TFM-560 consists of two proprietary 12” low frequency drivers mounted side by side in a reflex loaded enclosure together with a titanium dome 1.4" neodymium high frequency compression driver. It benefits from the use of neodymium drive units which results in a highly efficient, lightweight wedge monitor package with a small footprint that is easy to handle and transport, ideal for use wherever high SPL and exceptional intelligibility is required.

The TFM-560 can be used as part of a TURBOSOUND integrated DSP-based monitor rack package, providing up to four dedicated high quality monitor mixes from three RACKDP-50 amplifiers. The 80° horizontal x 50° vertical horn pattern is designed to give very even coverage both close to, and standing back from, the monitor while at the same time minimizing sound spillage into adjacent microphones. As a result the TFM123M offers impressive feedback rejection, developing high sound pressure levels without the need for excessive equalization.

The low profile cabinet is designed to maximize audience sight lines. It is constructed from 5/8” (15 mm) birch plywood, and is finished in hard wearing semi matt black paint finish. Recessed connector panels are located at both ends of the cabinet, each fitted with two Neutrik speakON* NL4 connectors, allowing for neat interconnection between units. Side mounted flush handles are provided for easy lifting and handling. A black powder coated perforated steel mesh grille with reticulated foam backing, and reinforced with a stabilising bar, protects the drive units from damage.

Turbosound TFM-560 Features:

• Dual 2 way stage monitor for touring applications
• 800 Watts continuous, 3,200 Watts peak power
• Carbon fibre loaded 12" neodymium motor low frequency drivers
• Titanium dome 1.4" neodymium motor compression driver
• Low profile design to maximise audience sight lines
• Low distortion waveguide provides 80° H x 50° V dispersion
• Bi-amp operation for high output and controlled dispersion
• 15 mm (5/8") birch plywood enclosure with hard wearing semi matt black paint finish
• Rugged powder coated perforated steel mesh grille
• Neutrik speakON* NL4 connectors for reliable long life operation
• 3-Year Warranty Program**
• Designed and engineered in England

Turbosound TFM-560 Specifications:

• Dimensions (H x W x D): 397 x 700 x 561mm (15.6 x 27.6 x 22.1")
• Net Weight: 30.5 kg (67.1 lbs)
• Components: 2 x Custom 12" (305 mm) LF Drivers, 1 x 1.4" Throat (35 mm) HF Driver
• Frequency Response: 80 Hz - 15 kHz ±3 dB, 53 Hz - 19 kHz ±10 dB
• Dispersion: 80° H x 50° V @-6 db points
• Power Handling: Optimised for use with RACKDP-50 Powered Management Systems
• Calculated Max SPL: 129 dB Continuous (calculated SPL addition), 135 dB Peak
• Construction: 15mm (5/8") birch plywood, finished in black semi-matt textured paint.
• Grille: Powder Coated Perforated Steel with Reticulated Foam Backing
• Connectors: 4 x Neutrik speakON* NL4 wired: pin 1+: LF positive, pin1-: LF negative pin2+: HF positive, pin2-: HF negative
• Spares & Accessories (not included)
  • LS-1225 12" (305 mm) LF Loudspeaker
  • RC-1225 Recone Kit
  • CD-215 HF Driver
  • RD-215 Replacement Diaphragm
