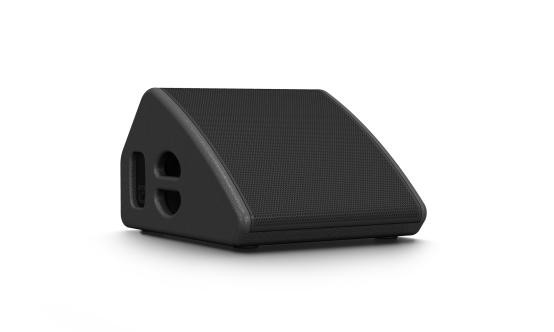

Turbosound TMW-112
500W 12" 2-Way Passive Floor Monitor in Black

OUR PART #  TMW-112

Our Price: $1,259.00
List Price: $1,447.85
Call for Special Sale Price!
(Low Price Guarantee)
In Stock

The TURBOSOUND TMW-112 is a compact 1,400 Watt switchable passive/bi-amped floor monitor consisting of a co-axial carbon fibre loaded 12" neodymium low frequency and titanium dome 1" neodymium high frequency combination driver in a reflex loaded enclosure designed for concert touring. The co-axial drive unit is matched with an exponential horn flare for improved acoustic loading and controlled coverage. Both HF and LF coils utilise the same neodymium magnet assembly, which gives better efficiency and reduced weight. This allows the creation of a minimal footprint monitor wedge which, combined with a35° projection angle and 60° horizontal by 40° vertical dispersion pattern, is ideal as a vocal monitor on smaller stages where space is limited, while its low profile maximises audience sightlines.

The 15 mm (5/8") birch plywood cabinet is equipped with two flush recessed handles, and Neutrik speakON* NL4 connectors are provided at each side for tidy inter-connects. The cabinet is finished in semi matt black paint finish and includes a curved profile perforated steel grille backed with reticulated foam and supported by a steel reinforcing strip positioned across the front of the drive unit. A recessed pole mount socket is provided for use on speaker poles or tripods.

Turbosound TMW-112 Features:

  • 2 way stage monitor for touring applications
  • 350 Watts continuous, 1,400 Watts peak power
  • Carbon fibre loaded 12" neodymium motor low frequencydriver
  • Titanium dome 1" neodymium motor compression driver
  • Low profile design to maximise audience sight lines
  • Low distortion waveguide provides 60° H x 40° Vdispersion
  • Switchable passive/bi-amp operation for flexibilityof use
  • 15 mm (5/8") birch plywood enclosure with hardwearing semi matt black paint finish
  • Rugged powder coated perforated steel mesh grille
  • Neutrik speakON* NL4 connectors for reliable longlife operation
  • 3-Year Warranty Program**
  • Designed and engineered in England

Turbosound TMW-112 Specifications:

  • Dimensions (H x W x D): 314 x 450 x 536 mm (12.4 x17.7 x 21.1")
  • Net Weight: 19 kg (41.8 lbs)
  • Components: 1 x Coaxial 12" (305 mm) LF Driver /HF Compression Driver
  • Frequency Response: 75 Hz - 18 kHz ±3 dB, 60 Hz- 20 kHz ±10 dB
  • Dispersion: 60° H x 40° V @ -6 dB points
  • Sensitivity (1 W @ 1 M): 95 dB
  • Power Handling:
    • LF: 350 Watts Continuous, 1,400 Watts Peak
    • HF: 80 Watts Continuous, 320 Watts Peak
    • Passive: 500 Watts Continuous, 2,000 Watts Peak
  • Calculated Max SPL: 122 dB continuous, 128 dBpeak
  • Nominal Impedance:
    • LF: 8 Ohms
    • HF: 8 Ohms
    • Passive: 8 Ohms
  • Crossover:  Passive Crossover Network at 1.3kHz, Switchable Active/Passive
  • Construction:  15mm (5/8") Birch PlywoodFinished in Black Textured Polyurethane. Two Recessed Carrying Handles. PoleMount Socket
  • Grille: Black Powder Coated Perforated SteelBacked with Foam
  • Connectors: 2 Neutrik speakON* NL4 wired: pin1+:LF positive, pin1-: LF negative, pin2+: HF positive, pin2-: HF negative
  • Spares & Accessories: LS-1227 12" (305 mm) Coaxial HF/LFLoudspeaker

Turbosound TMW-112
500W 12" 2-Way Passive Floor Monitor in Black

OUR PART #  TMW-112

Product Information:

The TURBOSOUND TMW-112 is a compact 1,400 Watt switchable passive/bi-amped floor monitor consisting of a co-axial carbon fibre loaded 12" neodymium low frequency and titanium dome 1" neodymium high frequency combination driver in a reflex loaded enclosure designed for concert touring. The co-axial drive unit is matched with an exponential horn flare for improved acoustic loading and controlled coverage. Both HF and LF coils utilise the same neodymium magnet assembly, which gives better efficiency and reduced weight. This allows the creation of a minimal footprint monitor wedge which, combined with a35° projection angle and 60° horizontal by 40° vertical dispersion pattern, is ideal as a vocal monitor on smaller stages where space is limited, while its low profile maximises audience sightlines.

The 15 mm (5/8") birch plywood cabinet is equipped with two flush recessed handles, and Neutrik speakON* NL4 connectors are provided at each side for tidy inter-connects. The cabinet is finished in semi matt black paint finish and includes a curved profile perforated steel grille backed with reticulated foam and supported by a steel reinforcing strip positioned across the front of the drive unit. A recessed pole mount socket is provided for use on speaker poles or tripods.

Turbosound TMW-112 Features:

  • 2 way stage monitor for touring applications
  • 350 Watts continuous, 1,400 Watts peak power
  • Carbon fibre loaded 12" neodymium motor low frequencydriver
  • Titanium dome 1" neodymium motor compression driver
  • Low profile design to maximise audience sight lines
  • Low distortion waveguide provides 60° H x 40° Vdispersion
  • Switchable passive/bi-amp operation for flexibilityof use
  • 15 mm (5/8") birch plywood enclosure with hardwearing semi matt black paint finish
  • Rugged powder coated perforated steel mesh grille
  • Neutrik speakON* NL4 connectors for reliable longlife operation
  • 3-Year Warranty Program**
  • Designed and engineered in England

Turbosound TMW-112 Specifications:

  • Dimensions (H x W x D): 314 x 450 x 536 mm (12.4 x17.7 x 21.1")
  • Net Weight: 19 kg (41.8 lbs)
  • Components: 1 x Coaxial 12" (305 mm) LF Driver /HF Compression Driver
  • Frequency Response: 75 Hz - 18 kHz ±3 dB, 60 Hz- 20 kHz ±10 dB
  • Dispersion: 60° H x 40° V @ -6 dB points
  • Sensitivity (1 W @ 1 M): 95 dB
  • Power Handling:
    • LF: 350 Watts Continuous, 1,400 Watts Peak
    • HF: 80 Watts Continuous, 320 Watts Peak
    • Passive: 500 Watts Continuous, 2,000 Watts Peak
  • Calculated Max SPL: 122 dB continuous, 128 dBpeak
  • Nominal Impedance:
    • LF: 8 Ohms
    • HF: 8 Ohms
    • Passive: 8 Ohms
  • Crossover:  Passive Crossover Network at 1.3kHz, Switchable Active/Passive
  • Construction:  15mm (5/8") Birch PlywoodFinished in Black Textured Polyurethane. Two Recessed Carrying Handles. PoleMount Socket
  • Grille: Black Powder Coated Perforated SteelBacked with Foam
  • Connectors: 2 Neutrik speakON* NL4 wired: pin1+:LF positive, pin1-: LF negative, pin2+: HF positive, pin2-: HF negative
  • Spares & Accessories: LS-1227 12" (305 mm) Coaxial HF/LFLoudspeaker
