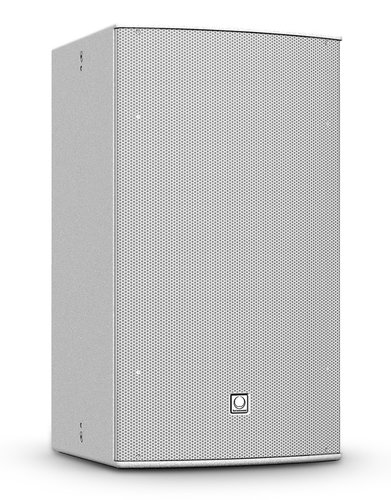

Turbosound TCS115B-WH
15" 500W (8 Ohms) Passive Front-Loaded Installation Subwoofer in White

OUR PART #  TCS115B-WH

Our Price: $1,099.99
List Price: $1,264.99
You save 13%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Turbosound TCS115B-WH is a low frequency loudspeaker enclosure designed for use in a wide range of fixed installations. It consists of a double suspension 15” low frequency driver utlizing a specialized voice coil wound on both the inside and the outside of the coil former for higher magnetic density, which results in better cooling, higher power handling and improved efficiency, in an optimally tuned low port distortion trapezoidal enclosure. The cabinet is dimensioned to tight pack cluster with TCS series mid/high enclosures equipped with a 12” low frequency driver. The cabinet is constructed from 15mm (5/8”) birch plywood with a powder coated perforated steel mesh grille backed with reticulated foam, and is finished in durable white semi matte textured paint.

Multiple rigging points, supported by internal steel flying strips, are provided on the top, bottom, sides and rear of the cabinet to enable it to be suspended in permanent installations using M10 shoulder eyebolts. A Neutrik speakON NL4 connector is located on the rear panel wired in parallel with a 4-way barrier strip providing input and link through connections to additional TCS series cabinets.

Turbosound TCS115B-WH Features:

  • Front loaded subwoofer for installation applications
  • 500 Watts continuous, 2,000 Watts peak power
  • Double suspension 15" low frequency driver with inside/outside wound coil
  • Low distortion bass reflex port design
  • 18mm (3/4”) birch plywood enclosure with hard wearing semi matte white paint finish
  • Architecturally styled powder coated perforated steel mesh grille
  • Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
  • Multiple internal rigging points allow bracket mount and suspension in any orientation
  • Neutrik speakON NL4 and barrier strip connectors
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound TCS115B-WH Specifications:

  • Components:  1x 15" (381mm) LF driver
  • Frequency Response:  45 Hz - 150 Hz (±3dB), 30 Hz- 200 Hz (±10dB)
  • Sensitivity (1 W @ 1 M):  102dB, 1 Watt @ 1 meter (measured in half space)
  • Power Handling:  500 Watts continuous, 2000 Watts peak
  • Calculated Max SPL:  127dB continuous, 133dB peak
  • Nominal Impedance:  8 Ohms
  • Construction:  15mm (5/8") birch plywood. Finished in white semi matte textured paint.
  • Grille:  Powder coated perforated steel with foam backing
  • Connectors:  Neutrik speakON NL4, wired pin1+: positive, pin 1-: negative, pins 2+ and 2- N/C, 4-way barrier strip connector
  • Dimensions (HxWxD):  31.6" x 16.8" x 19.7" (803mmx 428mm x 500mm)
  • Net Weight:  83.6 lbs (38 kg)

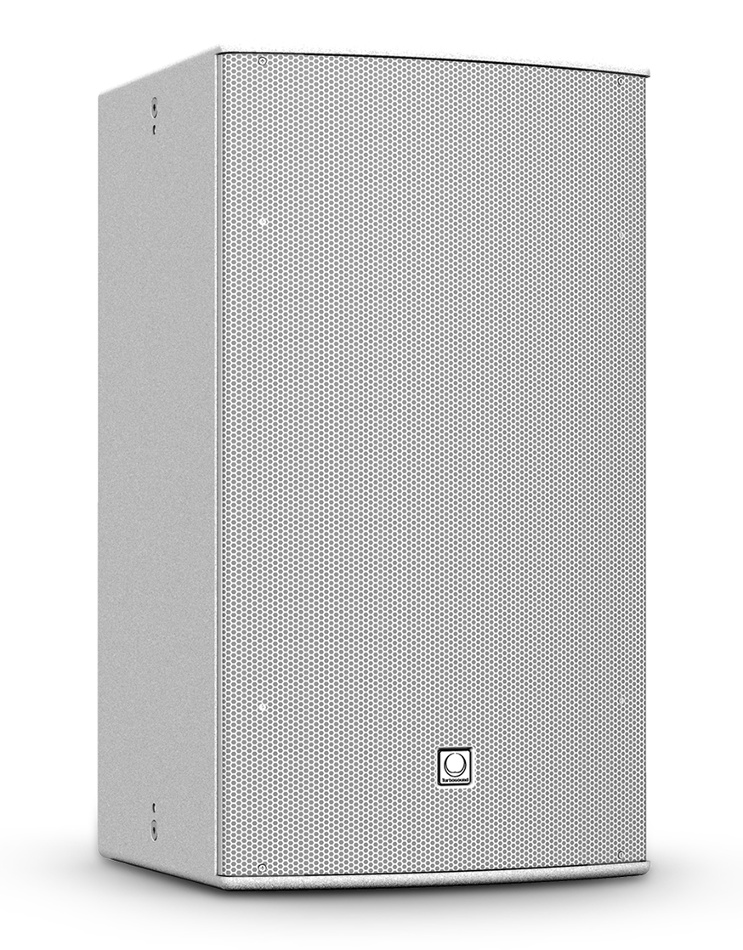

Turbosound TCS115B-WH
15" 500W (8 Ohms) Passive Front-Loaded Installation Subwoofer in White

OUR PART #  TCS115B-WH

Product Information:

The Turbosound TCS115B-WH is a low frequency loudspeaker enclosure designed for use in a wide range of fixed installations. It consists of a double suspension 15” low frequency driver utlizing a specialized voice coil wound on both the inside and the outside of the coil former for higher magnetic density, which results in better cooling, higher power handling and improved efficiency, in an optimally tuned low port distortion trapezoidal enclosure. The cabinet is dimensioned to tight pack cluster with TCS series mid/high enclosures equipped with a 12” low frequency driver. The cabinet is constructed from 15mm (5/8”) birch plywood with a powder coated perforated steel mesh grille backed with reticulated foam, and is finished in durable white semi matte textured paint.

Multiple rigging points, supported by internal steel flying strips, are provided on the top, bottom, sides and rear of the cabinet to enable it to be suspended in permanent installations using M10 shoulder eyebolts. A Neutrik speakON NL4 connector is located on the rear panel wired in parallel with a 4-way barrier strip providing input and link through connections to additional TCS series cabinets.

Turbosound TCS115B-WH Features:

  • Front loaded subwoofer for installation applications
  • 500 Watts continuous, 2,000 Watts peak power
  • Double suspension 15" low frequency driver with inside/outside wound coil
  • Low distortion bass reflex port design
  • 18mm (3/4”) birch plywood enclosure with hard wearing semi matte white paint finish
  • Architecturally styled powder coated perforated steel mesh grille
  • Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
  • Multiple internal rigging points allow bracket mount and suspension in any orientation
  • Neutrik speakON NL4 and barrier strip connectors
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound TCS115B-WH Specifications:

  • Components:  1x 15" (381mm) LF driver
  • Frequency Response:  45 Hz - 150 Hz (±3dB), 30 Hz- 200 Hz (±10dB)
  • Sensitivity (1 W @ 1 M):  102dB, 1 Watt @ 1 meter (measured in half space)
  • Power Handling:  500 Watts continuous, 2000 Watts peak
  • Calculated Max SPL:  127dB continuous, 133dB peak
  • Nominal Impedance:  8 Ohms
  • Construction:  15mm (5/8") birch plywood. Finished in white semi matte textured paint.
  • Grille:  Powder coated perforated steel with foam backing
  • Connectors:  Neutrik speakON NL4, wired pin1+: positive, pin 1-: negative, pins 2+ and 2- N/C, 4-way barrier strip connector
  • Dimensions (HxWxD):  31.6" x 16.8" x 19.7" (803mmx 428mm x 500mm)
  • Net Weight:  83.6 lbs (38 kg)
