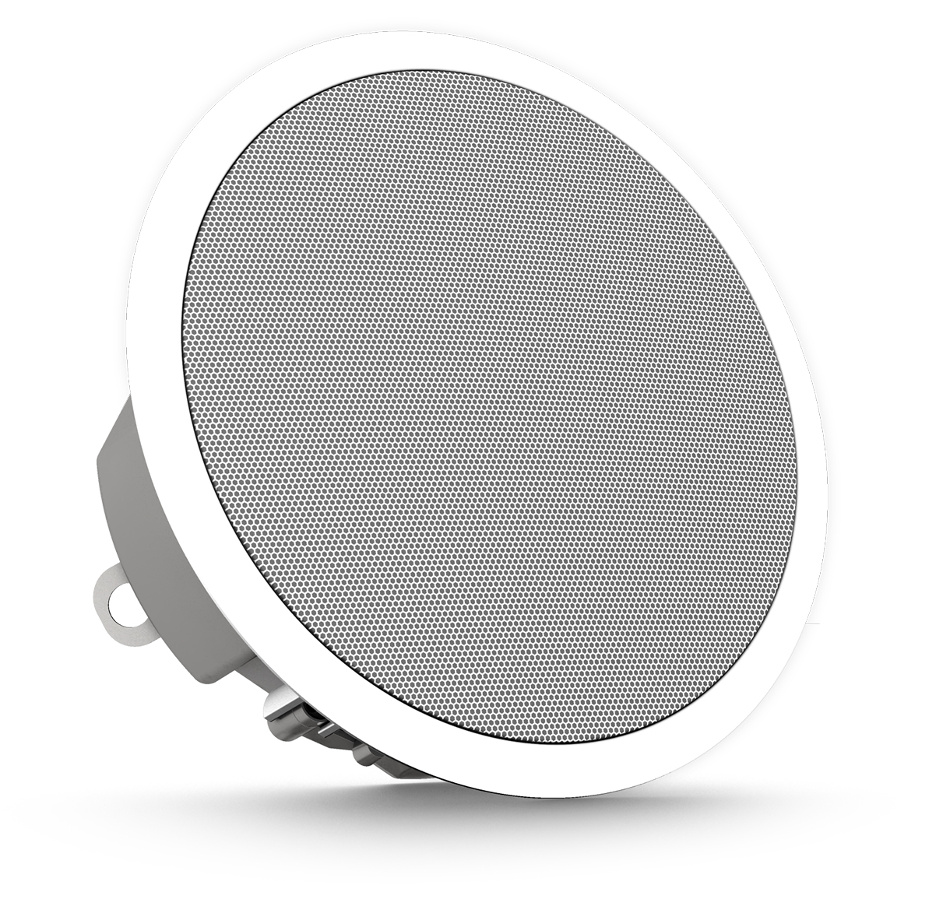

Turbosound TCS32C-T-WH 3.5" 2-Way Ceiling Speaker, 30W, White

The Turbosound TCS32C-T-WH is a high performance 2-way 3.5" full range ceiling speaker system ideally suited to installed speech and music sound reinforcement applications. Engineered as a 2-way system not requiring any external equalization or filtering, the TCS32C-T-WH can be driven by low impedance amplifiers, or 70V/100V line amplifiers. The TCS32C-T-WH achieves optimal performance when used with a low frequency high pass filter or with Turbosound loudspeaker management systems.

The plated steel fire can enclosure features a powerful, high excursion 3.5" low frequency driver with a high temperature voice coil, and a 1" ferrofluid cooled neodymium high frequency driver mounted on a 150° low distortion waveguide for optimized dispersion. The TCS32C-T-WH provides fast, accurate transient response and superb top end clarity, ensuring virtually distortion-free operation, even in your most demanding distributed sound applications.

Finished in semi matte white, the TCS32C-T-WH can alternately be painted to meet the specific aesthetics of the venue. The UL94 V-0 rated ABS front with plated steel fire can enclosure comes with a dedicated mount ring and ceiling tile rails for ease of installation. Multiple transformer taps are provided for 70V and 100V line systems or 16 Ohm direct input. Connections are provided via industry standard Phoenix blocks for input and link connections to additional enclosures.

Turbosound TCS32C-T-WH Features:

• Compact 2 way full range ceiling loudspeaker for installation applications
• 30 Watts continuous, 120 Watts peak power
• High excursion 3.5" low frequency driver with high temperature voice coil
• 1" ferrofluid cooled neodymium high frequency driver
• Multiple transformer taps for 70V and 100V line systems or 16 Ohm direct input
• Low distortion waveguide provides 150º coverage
• Mount ring and ceiling tile rails included
• UL94 V-0 rated ABS front with plated steel fire can enclosure
• Semi matte white finish fits unobtrusively in any environment
• Powder coated perforated steel mesh grille with dust protection
• Phoenix connector with steel cover and strain relief accepts fire rated cable
• 3-Year Warranty Program
• Designed and engineered in England

Turbosound TCS32C-T-WH Specifications:

• Frequency Response: 120 Hz – 20 kHz (±3dB); 100 Hz – 20 kHz (-10dB)
• Nominal Dispersion: 150° conical @ -6dB point
• Power Handling (IEC):
  • Passive: 30 W continuous, 120 W peak
  • 100V Line: 30, 15, 7.5 W continuous
  • 70V Line: 30, 15, 7.5, 3.75 W continuous
• Sensitivity: 87dB (1 W @ 1 m)
• Maximum SPL:
  • Passive: 102dB continuous, 108dB peak
  • 100V Line: 108, 105, 102dB peak
  • 70V Line: 108, 105, 102, 99dB peak
• Impedance: 16 Ohms
• Crossover Type: Passive
• Components: 1x 3.5" (89mm) LF driver; 1x 1" (25mm) HF driver
• Connectors: 1x Phoenix
• Wiring: Input 1+ / 1-, link 2+ / 2-
• Dimensions (diameter, depth): 9.3" x 3.3" (235mm x 83mm)
• Hole Cut-Out Diameter: 215 mm (8.5")
• Minimum Mount Depth: 110 mm (4.3")
• Net Weight: 2.4 kg (5.3 lbs)
• Construction: UL-V0 ABS, steel fire can
• Finish: White, paintable
• Grille: Powder-coated perforated steel
• Flying Hardware: Rotating screw clamps
• Accessories: C-Ring and tile bridge – included
