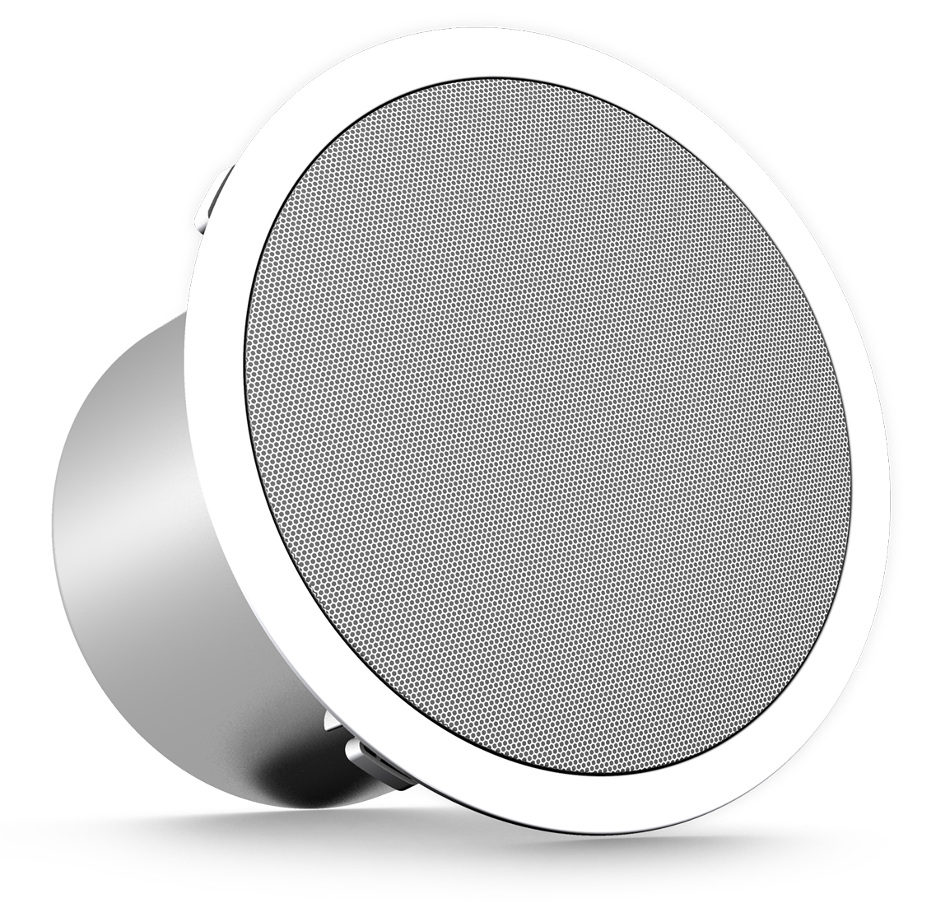

Turbosound TCS52C-T-WH
5" 60W 2-Way Full-Range Ceiling Loudspeaker with 70/100V Transformer or 16 Ohm Operation in White

OUR PART #  TCS52C-T-WH

Our Price: $109.99
List Price: $126.49
You save 13%! (Low Price Guarantee)
In Stock

The Turbosound TCS52C-T-WH is a high performance 2-way 5" full range ceiling speaker system ideally suited to installed speech and music sound reinforcement applications. Engineered as a 2-way system not requiring any external equalization or filtering, the TCS52C-T-WH can be driven by low impedance or 70V and 100V line amplifiers. The TCS52C-T-WH achieves optimal performance when used with a low frequency high pass filter or with Turbosound loudspeaker management systems.

The plated steel fire can enclosure features a powerful, high excursion 5" low frequency driver with a high temperature voice coil, and a 1" ferrofluid cooled neodymium high frequency driver mounted on a 110° low distortion waveguide for optimised dispersion. The TCS52C-T-WH provides fast, accurate transient response and superb top end clarity, ensuring virtually distortion-free operation, even in your most demanding distributed sound applications.

Finished in semi matte white, the TCS52C-T-WH can alternately be painted to meet the specific aesthetics of the venue. The UL94 V-0 rated ABS front with plated steel fire can enclosure comes with a dedicated mount ring and ceiling tile rails for ease of installation. Multiple transformer taps are provided for 70V and 100V line systems or 16 Ohm direct input. Connections are provided via industry standard Phoenix blocks for input and link connections to additional enclosures.

Turbosound TCS52C-T-WH Features:

  • Compact 2 way full range ceiling loudspeaker for installation applications
  • 60 Watts continuous, 240 Watts peak power
  • High excursion 5" low frequency driver with high temperature voice coil
  • 1" ferrofluid cooled neodymium high frequency driver
  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
  • Low distortion waveguide provides 110º coverage
  • Mount ring and ceiling tile rails included
  • UL94 V-0 rated ABS front with plated steel fire can enclosure
  • Semi matte white finish fits unobtrusively in any environment
  • Powder coated perforated steel mesh grille with dust protection
  • Phoenix connector with steel cover and strain relief accepts fire rated cable
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound TCS52C-T-WH Specifications:

  • Frequency Response  90 Hz – 20 kHz (±3dB); 75 Hz – 20 kHz (-10dB)
  • Nominal Dispersion:  110° conical @ -6 dB point
  • Power Handling (IEC):
    • Passive:  60 W continuous, 240 W peak
    • 100V Line:  60, 30, 15 W continuous
    • 70V Line:  60, 30, 15, 7.5 W continuous
  • Sensitivity:  92dB (1 W @ 1 m)
  • Maximum SPL:
    • Passive:  110dB continuous, 116dB peak
    • 100V Line:  116, 113, 110dB peak
    • 70V Line:  116, 113, 110, 107dB peak
  • Impedance:  16 Ohms
  • Components:  1x 5" (127 mm) LF driver; 1x 1" (25 mm) HF driver
  • Connectors:  1x Phoenix
  • Wiring:  Input 1+ / 1-, link 2+ / 2-
  • Dimensions (diameter, depth):  10.6" x 7.4" (268mm x 188mm)
  • Net Weight:  7.5 lbs (3.4 kg)
  • Construction:  UL-V0 ABS, steel fire can
  • Finish:  White, paintable
  • Grille:  Powder-coated perforated steel
  • Flying Hardware:  Rotating screw clamps
  • Accessories:  C-Ring and tile bridge – included

Turbosound TCS52C-T-WH
5" 60W 2-Way Full-Range Ceiling Loudspeaker with 70/100V Transformer or 16 Ohm Operation in White

OUR PART #  TCS52C-T-WH

Product Information:

The Turbosound TCS52C-T-WH is a high performance 2-way 5" full range ceiling speaker system ideally suited to installed speech and music sound reinforcement applications. Engineered as a 2-way system not requiring any external equalization or filtering, the TCS52C-T-WH can be driven by low impedance or 70V and 100V line amplifiers. The TCS52C-T-WH achieves optimal performance when used with a low frequency high pass filter or with Turbosound loudspeaker management systems.

The plated steel fire can enclosure features a powerful, high excursion 5" low frequency driver with a high temperature voice coil, and a 1" ferrofluid cooled neodymium high frequency driver mounted on a 110° low distortion waveguide for optimised dispersion. The TCS52C-T-WH provides fast, accurate transient response and superb top end clarity, ensuring virtually distortion-free operation, even in your most demanding distributed sound applications.

Finished in semi matte white, the TCS52C-T-WH can alternately be painted to meet the specific aesthetics of the venue. The UL94 V-0 rated ABS front with plated steel fire can enclosure comes with a dedicated mount ring and ceiling tile rails for ease of installation. Multiple transformer taps are provided for 70V and 100V line systems or 16 Ohm direct input. Connections are provided via industry standard Phoenix blocks for input and link connections to additional enclosures.

Turbosound TCS52C-T-WH Features:

  • Compact 2 way full range ceiling loudspeaker for installation applications
  • 60 Watts continuous, 240 Watts peak power
  • High excursion 5" low frequency driver with high temperature voice coil
  • 1" ferrofluid cooled neodymium high frequency driver
  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
  • Low distortion waveguide provides 110º coverage
  • Mount ring and ceiling tile rails included
  • UL94 V-0 rated ABS front with plated steel fire can enclosure
  • Semi matte white finish fits unobtrusively in any environment
  • Powder coated perforated steel mesh grille with dust protection
  • Phoenix connector with steel cover and strain relief accepts fire rated cable
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound TCS52C-T-WH Specifications:

  • Frequency Response  90 Hz – 20 kHz (±3dB); 75 Hz – 20 kHz (-10dB)
  • Nominal Dispersion:  110° conical @ -6 dB point
  • Power Handling (IEC):
    • Passive:  60 W continuous, 240 W peak
    • 100V Line:  60, 30, 15 W continuous
    • 70V Line:  60, 30, 15, 7.5 W continuous
  • Sensitivity:  92dB (1 W @ 1 m)
  • Maximum SPL:
    • Passive:  110dB continuous, 116dB peak
    • 100V Line:  116, 113, 110dB peak
    • 70V Line:  116, 113, 110, 107dB peak
  • Impedance:  16 Ohms
  • Components:  1x 5" (127 mm) LF driver; 1x 1" (25 mm) HF driver
  • Connectors:  1x Phoenix
  • Wiring:  Input 1+ / 1-, link 2+ / 2-
  • Dimensions (diameter, depth):  10.6" x 7.4" (268mm x 188mm)
  • Net Weight:  7.5 lbs (3.4 kg)
  • Construction:  UL-V0 ABS, steel fire can
  • Finish:  White, paintable
  • Grille:  Powder-coated perforated steel
  • Flying Hardware:  Rotating screw clamps
  • Accessories:  C-Ring and tile bridge – included
