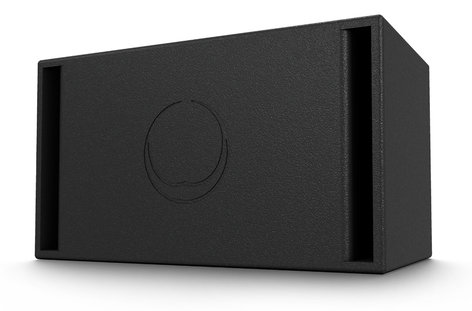

Turbosound TCS110B
10" 300W (8 Ohms) Passive Band-Pass Installation Subwoofer in Black

OUR PART #:  TCS110B

The Turbosound TCS110B is a high performance 10" subwoofer system designed for a wide range of speech and music sound reinforcement applications.
Learn More
Our Price: $349.99
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Turbosound TCS110B
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Turbosound TCS110B is a high performance 10" subwoofer system designed for a wide range of speech and music sound reinforcement applications. Engineered to work in conjunction with Turbosound loudspeaker management systems, the TCS110B provides extended low frequency performance from a compact enclosure.

A dual port design enclosure, the TCS110B features an extremely powerful, high excursion 10" low frequency driver with a specialized voice coil wound on both the inside and outside of the coil former for higher magnetic density, heat dissipation, higher power handling capacity, and improved efficiency. The TCS110B provides fast and accurate transient response for virtually distortion-free operation, even in your most demanding performances.

Finished in a highly durable semi matte black paint, the cabinet is constructed from 15mm (5/8") birch plywood with integral M10 threaded rigging points. The rear panel connector plate carries Neutrik speakON NL4 and barrier strip connectors for input and link connections to additional enclosures.

Turbosound TCS110B Features:

  • Band pass subwoofer for installation applications
  • 300 Watts continuous, 1,200 Watts peak power
  • High excursion 10" low frequency driver with inside/outside wound coil
  • Low distortion dual port design for maximum sound pressure level
  • 15mm (5/8”) birch plywood enclosure with hard wearing semi matte black paint finish
  • Integral M10 rigging points for ease of installation
  • Neutrik speakON NL4 and barrier strip connectors
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound TCS110B Specifications:

  • Frequency Response:  50 Hz - 150 Hz (±3dB); 40 Hz - 200 Hz (-10dB)
  • Nominal Dispersion:  Half space
  • Power Handling (IEC):  300 W continuous, 1200 W peak
  • Sensitivity:  94dB (1 W @ 1 m)
  • Maximum SPL:  119dB continuous, 125dB peak
  • Impedance:  8 Ohms
  • Components:  1x 10" (262 mm) LF driver
  • Connectors:
    • 1x Neutrik speakON NL4,
    • 1x barrier strip terminals
  • Wiring - Parallel / No switch:  Pins 1+ / 1- input, pins 2+ / 2- link
  • Dimensions (HxWxD):  13.0" x 23.0" x 13.0" (330mm x 585mm x 330mm)
  • Net Weight:  44.10 lbs
  • Construction:  15mm (5 / 8") birch plywood
  • Finish:  Semi matte black paint
  • Grille:  Powder-coated perforated steel
  • Flying Hardware:  M10 x 8
