Jands JAVISTAM1/1024
Vista M1 Control Surface with 1024 channel dongle

OUR PART #:  JAVISTAM1/1024

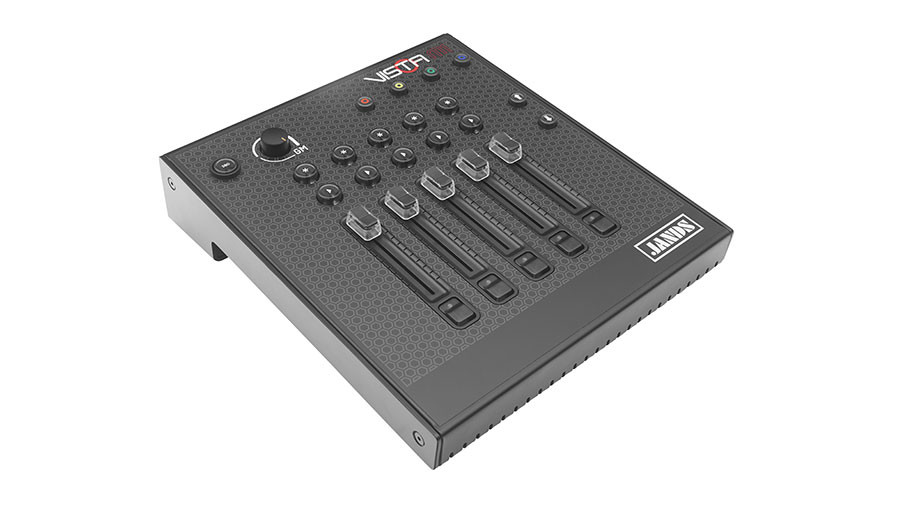

The Jands Vista M1 [model JAVISTAM1/1024] is an ultra-compact and extremely cost-effective playback-only Vista control surface.
Learn More
Our Price: $2,952.95
List Price: $3,245.00
You save 9%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Jands JAVISTAM1/1024
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Jands Vista M1 [model JAVISTAM1/1024] is an ultra-compact and extremely cost-effective playback-only Vista control surface. The M1 is ideal for situations where you can do your programming in advance on your PC, but you still want hardware to control the playback of your show.

Designed to be used with a laptop, the M1 gives you all the playback benefits of a Vista show in a compact and portable package that‘s perfect for trade show booths, hotels, clubs or any venue where space is tight.

With five playbacks including faders and flash buttons, plus a rotary master fader, the M1 is a complete and portable Vista playback module. When you want to travel light but you don‘t want to compromise your show, the M1 is the ideal live playback solution.

The Jands Vista software is specifically designed to simplify the control of lighting for performance, television broadcast, architectural, and corporate applications. It provides a powerful graphical user interface (GUI) as the primary programmer interface, while the M1 console provides the operator controls necessary for lighting control.

Jands JAVISTAM1/1024 Features:

  • GUI-based operation
  • Multiple Undo/Redo actions
  • Simplified spreadsheet style patch
  • Gobo thumbnails
  • Color picker by gel number, CMY, or RGB
  • Graphical timeline-based programming
  • Control by inbuilt DMX outputs
  • Runs on a user-supplied PC or Macintosh
  • Kensington Lock Slot (lock sold separately)

Jands JAVISTAM1/1024 Specifications:

Control

Main Controls
• Blue, Green, Yellow, Red modifier buttons
• Grand Master (rotary) fader and DBO button
Playback Controls
• 5 Playbacks with faders and flash buttons
• Playbacks feature; Select and Go buttons
• Split mode allows control of up to 15 Cuelists
• Playbacks can be configured for control of Groups, Presets and more
• Page Up / Down buttons
DMX Output
• DMX output channels determined by dongle – in this case, 1024 channels
• Upgrades available (sold separately-contact your Sales Professional for more information)
Input and Output Connections
• 2 DMX outputs (* Actual DMX output channels determined by dongle. Software pack, including dongle, must be purchased separately.)
• 1 USB2 connector – B type

Other

  • Processor : 60MHz Atmel ARM7
  • SRAM : 128 Kbytes
  • USB:  1 x Type B
  • Dimensions (LxWxH) : 250mm x 284mm x 59mm
  • Power Supply:  USB Powered, 2.5W max.
  • Operating Temperature:  0°C-40°C
  • Weight:
    • 2 kg, Net
    • 2.8 kg, Shipping
  • System Requirements:
    • Windows 8, 7, Vista or XP Professional with Service Pack 3, either 32- or 64-bit edition.
    • Mac OSX 10.6 – 10.9
      • Note: Re: Mac OSX 10.9 (Mavericks): Apple has added a USB > Serial driver that conflicts with theUD512. To solve this you can disable the Apple driver by following these steps (contact your Sales Professional for further assistance if needed):
        1) In the Finder select the ‘Go to Folder’ option from the Go menu
        2) In the Go to Folder window type or paste the following line: /System/Library/Extensions/IOUSBFamily.kext/Contents/PlugIns
        3) Find this file: ‘AppleUSBFTDI.kext’ and drag it to the Desktop or a folder that you can locate if necessary. This makes a copy of the file (Unless  you are using another USB to Serial device you are unlikely to need  this file but we recommend you keep a copy in case you want to  restore it in the future.).
        4) Delete the original ‘AppleUSBFTDI.kext’ file (i.e. the one inside /System/Library/Extensions/IOUSBFamily.kext/Contents/PlugIns)
        5) Restart the Mac
    • Intel® processor i3 (i5 or better recommended)
    • 2GB of RAM (4GB recommended)
    • 4GB of available hard disk space
