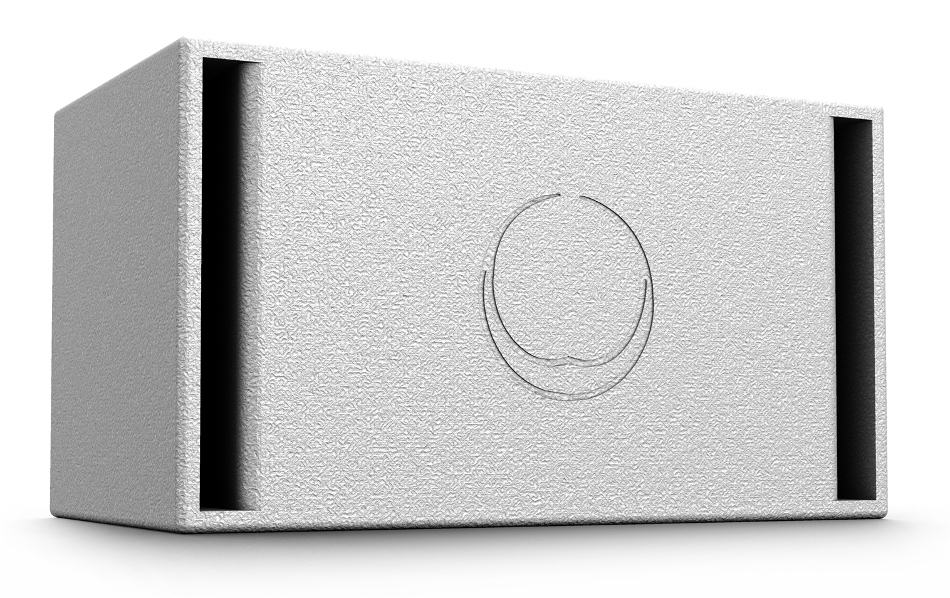

Turbosound TCS110B-WH
10" 300W (8 Ohms) Passive Band-Pass Installation Subwoofer in White


Our Price: $249.99
List Price: $287.49
You save 13%! (Low Price Guarantee)
In Stock

The Turbosound TCS110-WH is a high performance 10" subwoofer system designed for a wide range of speech and music sound reinforcement applications. Engineered to work in conjunction with Turbosound loudspeaker management systems, the TCS110-WH provides extended low frequency performance from a compact enclosure.

A dual port design enclosure, the TCS110-WH features an extremely powerful, high excursion 10" low frequency driver with a specialized voice coil wound on both the inside and outside of the coil former for higher magnetic density, heat dissipation, higher power handling capacity, and improved efficiency. The TCS110-WH provides fast and accurate transient response for virtually distortion-free operation, even in your most demanding performances.

Finished in a highly durable semi matte white paint, the cabinet is constructed from 15mm (5/8") birch plywood with integral M10 threaded rigging points. The rear panel connector plate carries Neutrik speakON NL4 and barrier strip connectors for input and link connections to additional enclosures.

Turbosound TCS110-WH Features:

  • Band pass subwoofer for installation applications
  • 300 Watts continuous, 1,200 Watts peak power
  • High excursion 10" low frequency driver with inside/outside wound coil
  • Low distortion dual port design for maximum sound pressure level
  • 15mm (5/8”) birch plywood enclosure with hard wearing semi matte white paint finish
  • Integral M10 rigging points for ease of installation
  • Neutrik speakON NL4 and barrier strip connectors
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound TCS110-WH Specifications:

  • Frequency Response:  50 Hz - 150 Hz (±3dB); 40 Hz - 200 Hz (-10dB)
  • Nominal Dispersion:  Half space
  • Power Handling (IEC):  300 W continuous, 1200 W peak
  • Sensitivity:  94dB (1 W @ 1 m)
  • Maximum SPL:  119dB continuous, 125dB peak
  • Impedance:  8 Ohms
  • Components:  1x 10" (262 mm) LF driver
  • Connectors:
    • 1x Neutrik speakON NL4,
    • 1x barrier strip terminals
  • Wiring - Parallel / No switch:  Pins 1+ / 1- input, pins 2+ / 2- link
  • Dimensions (HxWxD):  13.0" x 23.0" x 13.0" (330mm x 585mm x 330mm)
  • Net Weight:  44.10 lbs
  • Construction:  15mm (5 / 8") birch plywood
  • Finish:  Semi matte white paint
  • Grille:  Powder-coated perforated steel
  • Flying Hardware:  M10 x 8
