Turbosound NuQ62-WH
6.5" 150W (16 Ohms) 2-Way Full-Range Passive Loudspeaker in White

OUR PART #  NUQ62-WH

Our Price: $499.99
List Price: $574.99
You save 13%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

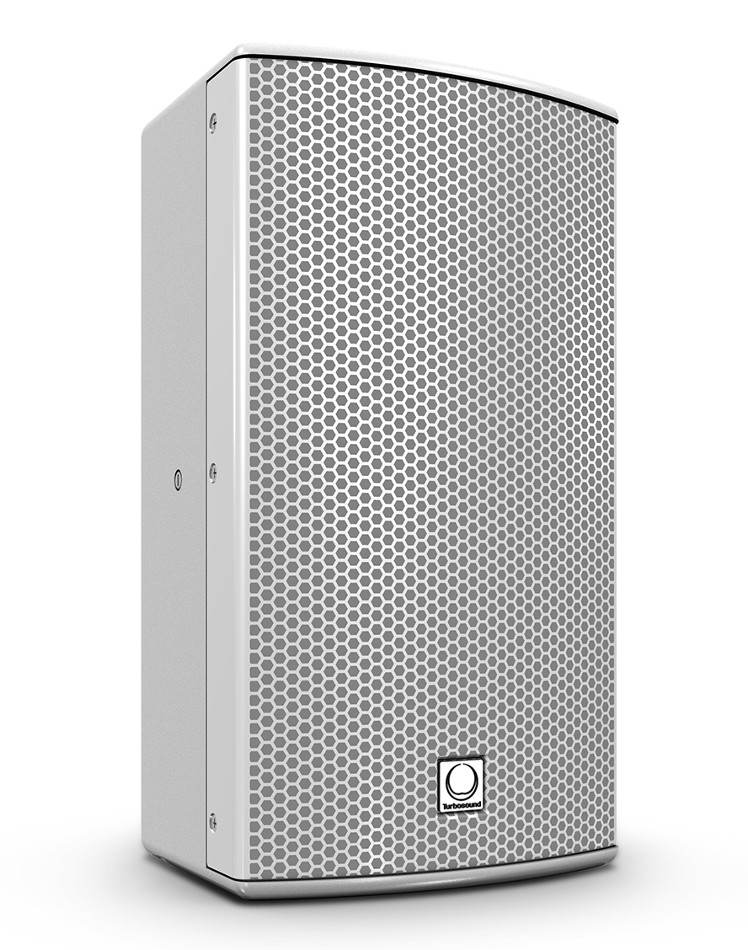

The 2-way full-range NuQ62-WH from Turbosound is a compact passive loudspeaker system ideally suited for a wide range of speech and music sound reinforcement applications. Engineered to work in conjunction with Turbosound loudspeaker management systems, the NuQ62-WH provides optimal performance for front fill, down fill, balcony delay and monitor applications.

The NuQ62-WH loudspeaker features a 6.5" low frequency driver with a low mass voice coil for improved transient response, and an aluminium dome 1" neodymium motor high frequency compression driver mounted on a rotatable 100° horizontal by 60° vertical dispersion converging elliptical waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure. The rear panel connector plate carries Neutrik speakON NL4 connectors for input and link connections to additional enclosures.

Finished in a highly durable semi matte white paint, the cabinet is constructed from 12 mm (1/2") birch plywood – and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. Multiple threaded rigging points are provided for suspension in any orientation, or for mounting with industry standard wall brackets. Optional flying yoke and swivel brackets allow for further flexibility in install applications (each available separately).

Turbosound NuQ62-WH Features:

  • 2 way full range loudspeaker for portable PA applications
  • 150 Watts continuous, 600 Watts peak power
  • Ideal for front fill and monitor applications
  • 6.5" low frequency driver with low mass voice coil for improved transient response
  • Aluminium dome 1" neodymium motor compression driver
  • Rotatable converging elliptical waveguide provides 100° H x 60° V dispersion
  • 12 mm (1/2") birch plywood enclosure with hard wearing semi matte white paint finish
  • Rugged powder coated perforated steel mesh grille
  • Multiple internal rigging points allow bracket mount and suspension in any orientation
  • Neutrik speakON NL4 connectors for reliable long life operation
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound NuQ62-WH Specifications:

  • Frequency Response:  80 Hz - 18 kHz (±3dB); 65 Hz - 20 kHz (-10dB)
  • Nominal Dispersion:  100° H x 60° V @ -6 dB points, rotatable
  • Directivity Factor (Q):  8
  • Directivity Index (DI):  9
  • Power Handling (IEC):  150 W continuous, 600 W peak
  • Sensitivity:  88dB (1 W @ 1 m)
  • Maximum SPL:  110dB continuous, 116dB peak
  • Impedance:  16 Ohms
  • Crossover Type:  Passive
  • Components:
    • 1x 6" (162 mm) LF Driver
    • 1x 1" (25 mm) HF Compression Driver
  • Connectors:  3x Neutrik speakON NL4
  • Wiring:  Passive: Pins 1+ / 1- input, pins 2+ / 2- link
  • Dimensions (HxWxD):  13.8" x 7.5" x 8.3" (350mm x 210mm x 190mm)
  • Net Weight:  6.3 kg (13.6 lbs)
  • Construction:  12 mm (1/2") birch plywood
  • Finish:  Semi-matte white paint
  • Grille:  Powder-coated perforated steel
  • Flying Hardware:  M8 x6 points
Flying Yoke for NUQ62 Turbosound NUQ62-FY Flying Yoke for NUQ62

The Turbosound NuQ62-FY is a flying yoke for NuQ62 loudspeakers.The NuQ62-FY is a matt black, powder coated flying yoke specifically designed to hang the NuQ62 in standalone applications, such as ceiling mounting in bars or clubs, or as an ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Free Shipping Available

Our Price:$249.99List Price: $287.49You save 13%!

Turbosound NuQ62-WH
6.5" 150W (16 Ohms) 2-Way Full-Range Passive Loudspeaker in White

OUR PART #  NUQ62-WH

Product Information:

The 2-way full-range NuQ62-WH from Turbosound is a compact passive loudspeaker system ideally suited for a wide range of speech and music sound reinforcement applications. Engineered to work in conjunction with Turbosound loudspeaker management systems, the NuQ62-WH provides optimal performance for front fill, down fill, balcony delay and monitor applications.

The NuQ62-WH loudspeaker features a 6.5" low frequency driver with a low mass voice coil for improved transient response, and an aluminium dome 1" neodymium motor high frequency compression driver mounted on a rotatable 100° horizontal by 60° vertical dispersion converging elliptical waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure. The rear panel connector plate carries Neutrik speakON NL4 connectors for input and link connections to additional enclosures.

Finished in a highly durable semi matte white paint, the cabinet is constructed from 12 mm (1/2") birch plywood – and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. Multiple threaded rigging points are provided for suspension in any orientation, or for mounting with industry standard wall brackets. Optional flying yoke and swivel brackets allow for further flexibility in install applications (each available separately).

Turbosound NuQ62-WH Features:

  • 2 way full range loudspeaker for portable PA applications
  • 150 Watts continuous, 600 Watts peak power
  • Ideal for front fill and monitor applications
  • 6.5" low frequency driver with low mass voice coil for improved transient response
  • Aluminium dome 1" neodymium motor compression driver
  • Rotatable converging elliptical waveguide provides 100° H x 60° V dispersion
  • 12 mm (1/2") birch plywood enclosure with hard wearing semi matte white paint finish
  • Rugged powder coated perforated steel mesh grille
  • Multiple internal rigging points allow bracket mount and suspension in any orientation
  • Neutrik speakON NL4 connectors for reliable long life operation
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound NuQ62-WH Specifications:

  • Frequency Response:  80 Hz - 18 kHz (±3dB); 65 Hz - 20 kHz (-10dB)
  • Nominal Dispersion:  100° H x 60° V @ -6 dB points, rotatable
  • Directivity Factor (Q):  8
  • Directivity Index (DI):  9
  • Power Handling (IEC):  150 W continuous, 600 W peak
  • Sensitivity:  88dB (1 W @ 1 m)
  • Maximum SPL:  110dB continuous, 116dB peak
  • Impedance:  16 Ohms
  • Crossover Type:  Passive
  • Components:
    • 1x 6" (162 mm) LF Driver
    • 1x 1" (25 mm) HF Compression Driver
  • Connectors:  3x Neutrik speakON NL4
  • Wiring:  Passive: Pins 1+ / 1- input, pins 2+ / 2- link
  • Dimensions (HxWxD):  13.8" x 7.5" x 8.3" (350mm x 210mm x 190mm)
  • Net Weight:  6.3 kg (13.6 lbs)
  • Construction:  12 mm (1/2") birch plywood
  • Finish:  Semi-matte white paint
  • Grille:  Powder-coated perforated steel
  • Flying Hardware:  M8 x6 points
