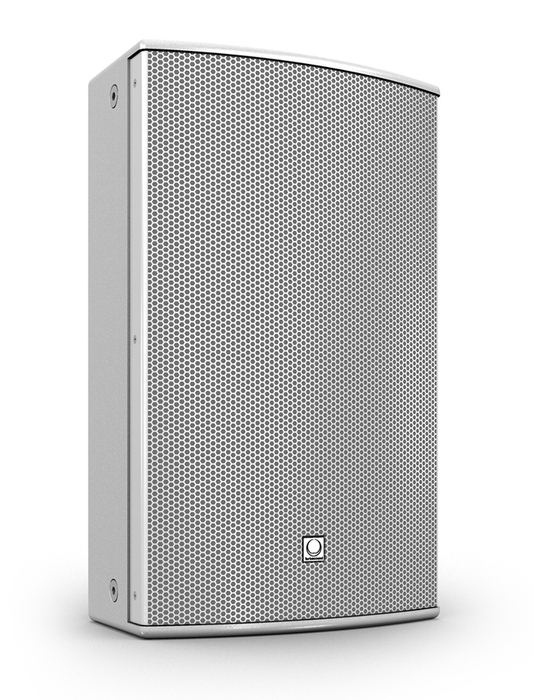

Turbosound NuQ102-WH
10" 2-Way 300W (8 Ohms) Full-Range Passive Loudspeaker in White


Our Price: $449.99
Write the first review.
Turbosound NuQ102-WH
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

Turbosound's 2-way full-range NuQ102-WH is a switchable passive/bi-amp 1,200 Watt 10" loudspeaker system ideally suited for a wide range of speech and music sound reinforcement applications. Engineered to work in conjunction with Turbosound loudspeaker management systems, the NuQ102-WH provides optimal performance for FOH, sidefill and delay line loudspeakers, and is an exceptional choice for wedge monitoring applications.

The NuQ102-WH loudspeaker features a 10" low frequency driver with a low mass voice coil for improved transient response, and an aluminium dome 1" neodymium high frequency compression driver mounted on a rotatable 100° horizontal by 60° vertical dispersion converging elliptical waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch. The rear panel connector plate carries Neutrik speakON NL4 connectors for input and link connections to additional enclosures.

Finished in a highly durable semi matte white paint, the cabinet is constructed from 12 mm (1/2") birch plywood – and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. Multiple threaded rigging points are provided for suspension in any orientation, or for mounting with industry standard wall brackets. Optional flying yoke, swivel brackets, and swivel extenders allow for further flexibility in install applications (each available separately). The NuQ102-WH also features a 35 mm socket for standard pole mounting – plus integrated handles for convenient transport.

Turbosound NuQ102-WH Features:

  • 2 way full range loudspeaker for for portable PA applications
  • 300 Watts continuous, 1,200 Watts peak power
  • Ideal for FOH, side fill and monitor applications
  • 10" low frequency driver with low mass voice coil for improved transient response
  • Aluminium dome 1" neodymium motor compression driver
  • Switchable passive/bi-amp operation for flexibility of use
  • Rotatable converging elliptical waveguide provides 100° H x 60° V dispersion
  • 12 mm (1/2") birch plywood enclosure with hard wearing semi matte white paint finish
  • Rugged powder coated perforated steel mesh grille
  • Integral 35 mm pole mount and handles
  • Multiple internal rigging points allow bracket mount aand suspension in any orientation
  • Neutrik speakON NL4 connectors for reliable long life operation
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound NuQ102 Specifications:

  • Frequency Response:
    • 55 Hz - 18 kHz ± 3dB
    • 50 Hz – 20 kHz -10dB
  • Nominal Dispersion:  100° H x 60° V @ -6dBpoints. Rotatable
  • Directivity Factor (Q):  8
  • Directivity Index (DI):  9
  • Power Handling (IEC):
    • Passive:  300 Watts continuous, 1,200 Watts peak
    • Bi-amp:
      • LF:  300 W continuous, 1,200 W peak
      • HF:  30 W continuous, 120 W peak
  • Sensitivity:  93 dB (1 W @ 1 M)
  • Maximum SPL:
    • Passive:  118dB continuous, 124dB peak
    • Bi-amp:
      • LF:  118dB continuous, 124dB peak
      • HF:  119dB continuous, 125dB peak
  • Impedance:
    • Passive:  8 Ohms
    • Bi-amp:
      • LF:  8 Ohms
      • HF:  6 Ohms
  • Crossover Type:  Passive / bi-amp, switchable
  • Components:
    • 1x 10" (261 mm) LF driver 1 x 1" (25 mm) HF compression driver
    • 1x 1" (25 mm) HF compression driver
  • Connectors:  2x Neutrik speakON NL4
  • Wiring:
    • Passive:  Pins 1+ / 1- input, pins 2+ / 2- link
    • Bi-amp:  Pins 1+ / 1- LF, pins 2+ / 2- HF
  • Dimensions (HxWxD):  20.7" x 12.5" x 10.2" (525mm x 318mm x 258mm)
  • Net Weight:  27.9 lbs (12.7 kg)
  • Construction:  12 mm (1/2") birch plywood
  • Finish:  Semi matte white paint
  • Grille:  Powder-coated perforated steel
  • Flying Hardware:  M10 x 8, M8 x 3, and M6 x 4 points
