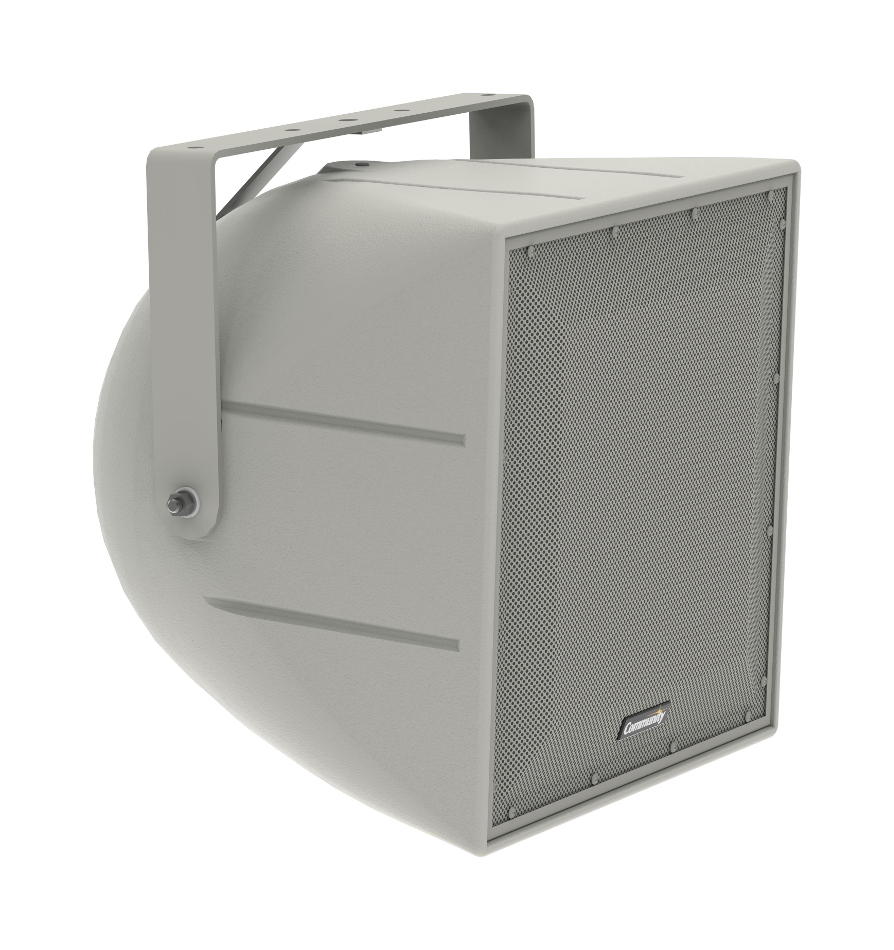

Community R.5-66MAX
12" 600W (8 Ohms) Full-Range Weather Resistant Surface-Mount Loudspeaker with 60°x60° Dispersion

OUR PART #:  R.5-66MAX

The Community R.5-66MAX is a two-way...
Learn More
Our Price: $1,867.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Community R.5-66MAX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Community R.5-66MAX is a two-way, full-range loudspeaker system designed to provide high quality voice and music reproduction in applications requiring extreme weather resistance. It is designed to withstand long-term exposure to tough, environmental conditions and to provide high output performance.

The R.5-66MAX has a 1.4" (36 mm) exit HF compression driver and a 12" (305 mm) cone 600W neodymium LF driver. The HF assembly is coaxially mounted with the LF driver allowing 60° x 60° coverage with low distortion. The system has been designed to provide a flat response with slightly rising HF.

The R.5-66MAX can act as both a musical entertainment loudspeaker and a voice PA loudspeaker simultaneously. Each system is backed by Community’s five-year product warranty and fifteen-year enclosure warranty.

Community R.5-66MAX Features:

  • Low distortion, high quality musicality, excellent speech intelligibility in a compact enclosure
  • High sensitivity, high output (131dB max)
  • Weather-resistant, rotomolded UV resistant enclosure
  • Weather-resistant grille and drivers, and moisture-sealed crossover
  • Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
  • Integral mounting points
  • Light Grey, Black and White finish standard
  • Five-year product warranty / Fifteen-year enclosure warranty

Community R.5-66MAX Specifications:

  • Loudspeaker Type:  Full-range, two-way, coaxial, weather-resistant
  • Operating Range:  70 Hz to 20 kHz (-10 dB)
  • Frequency Response:  95 Hz to 19 kHz (-3dB)
  • Max Input Ratings:  600W RMS, 1200W Program, 69 volts RMS, 138 volts momentary peak
  • Maximum Output:
    • without EQ:  131dB (137dB Peak)
    • with EQ:  130dB (136dB Peak)
  • Sensitivity (1W / 1m):  103dB (125 Hz - 10 kHz)
  • Free Space SPL:  103dB (250 Hz - 4 kHz)
  • Nominal Impedance:  8 Ohms, 4.8 Ohms @ 200 Hz minimum
  • Nominal Beamwidth (-6dB):  60° x 60°, 1.6 kHz to 10 kHz
  • Axial Q / DI:  18.7/12.7, 1.6 kHz to 10 kHz
  • Crossover Frequency:  900 Hz
  • Recommended Processing:  DSP with CONEQ™ power response correction
  • Recommended Amplifier:  1200W to 1800W at 8 ohms
  • Low Frequency Transducer:  1x 12" inherently weather-resistant cone with neodymium motor and aluminum demodulation ring
  • High Frequency Transducer:  1x 1.4" exit compression, 2.87" Voice coil
  • Input Connection:  12 foot (3.6 m) SJOW #16 gauge
  • Enclosure:  Rotomolded LLDPE plastic
  • Finish:  Black, White and Light Grey (RAL# 9004, 9003, and 7038)
  • Mounting/Rigging Provisions:  (5) 3/8"-16 rigging points; Steel zinc-rich epoxy dual-layer powder-coated bracket; Aluminum aiming strap to secure angle
  • Grille:  3-layer Weather-Stop™ with polyester mesh, foam, zinc-rich epoxy dual-layer powder-coated perforated steel color-matched to enclosure
  • Environmental:  IEC529 IP55W rating with a minimum 5° down-tilt
  • Dimensions (HxWxD):  16" x 16" x 16.19" (406 mm x 406 mm x 411 mm)
  • Weight:  44 lbs (20 kg) loudspeaker only; 47 lbs (21.3 kg) with yokebracket
