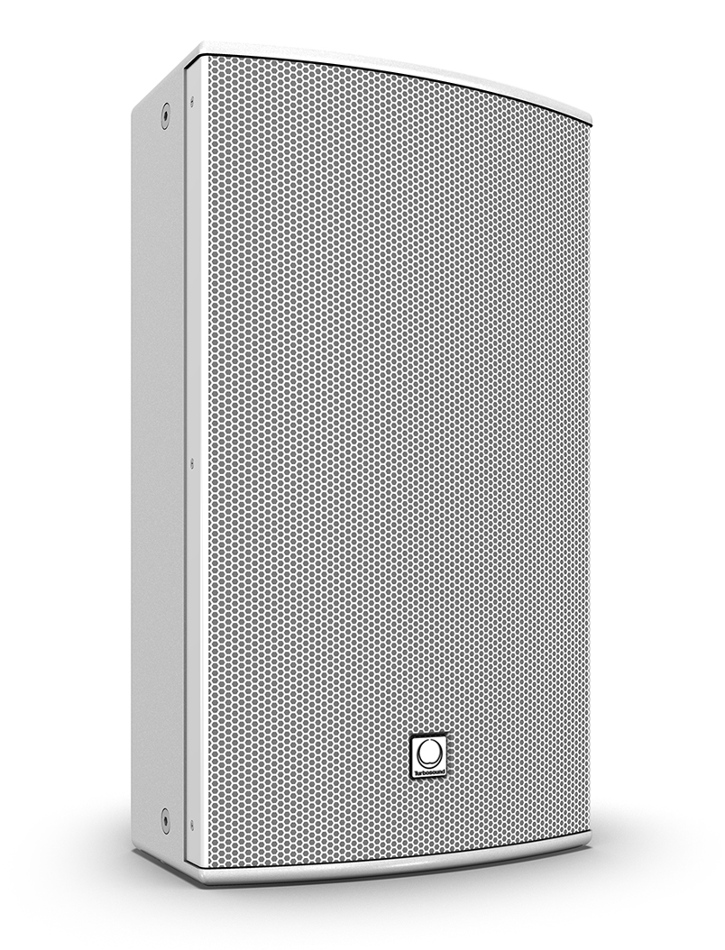

Turbosound NuQ122-WH 12" 1600W 2-Way Passive/Bi-Amp Loudspeaker, White

OUR PART #: NUQ122-WH MFR #: TS-NUQ122-WH

Copied to clipboard

A switchable passive/bi-amp 1,600 Watt 12" loudspeaker system... ...Read more

Turbosound NuQ122-WH 12" 1600W 2-Way Passive/Bi-Amp Loudspeaker, White Image 1
Turbosound NuQ122-WH 12" 1600W 2-Way Passive/Bi-Amp Loudspeaker, White Image 2
Turbosound NuQ122-WH 12" 1600W 2-Way Passive/Bi-Amp Loudspeaker, White
Our Price: $799.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

A switchable passive/bi-amp 1,600 Watt 12" loudspeaker system, the 2-way full range NuQ122-WH from Turbosound is ideally suited for a broad array of speech and music sound reinforcement applications. It's engineered to work in concert with Turbosound's loudspeaker management systems, and provides optimal performance for FOH (front-of-house), side fill and delay line loudspeakers, plus it's an outstanding choice for wedge monitoring applications as well. Its symmetrical, trapezoidal shape and high frequency (HF) dispersion pattern also make it an obvious choice for mirrored left/right monitor wedge positions.

It features a 12" low frequency (LF) driver with a low-mass voice coil for enhanced transient response, along with an aluminium-dome 1" neodymium HF compression driver mounted on a 70° horizontal x 70° vertical dispersion low-distortion waveguide. All the unit's drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode is easily engaged via a rear panel switch. The rear panel connector plate also carries Neutrik speakON® NL4 connectors for input and link connections to additional enclosures (sold separately).

The cabinet comes finished in a highly-durable semi-matte white paint, is constructed from ⅝" (15mm) birch plywood, and includes a rugged, powder coated perforated steel-mesh grille that's backed with reticulated foam. Multiple threaded rigging points are provided for suspension in any orientation, or for mounting with industry-standard wall brackets. An optional flying yoke enables further versatility for installation applications (available separately). It also features a built-in 35mm socket for standard pole-mounting, plus integrated handles for convenient transport.

WARNING! Mounting and/or suspension of loudspeakers should be performed by experienced professionals following all safety protocols. The improper installation of a loudspeaker can result in property damage, personal injury and/or liability to the installing contractor. Proper installation is the responsibility of the person installing it.

Turbosound NuQ122-WH Features:

  • 2-way full-range loudspeaker for portable PA applications
  • 400 Watts continuous, 1,600 Watts peak power
  • Ideal for FOH, side fill and monitor applications
  • 12" LF driver with low mass voice coil for improved transient response
  • Aluminium dome 1" neodymium motor compression driver
  • Low-distortion waveguide provides 70° H x 70° V dispersion
  • ⅝" (15mm) birch plywood enclosure with hard-wearing semi-matte white paint finish
  • Rugged, powder coated perforated steel-mesh grille
  • Integral 35mm pole-mount and handles
  • Multiple internal rigging points allow bracket-mount and suspension in any orientation
  • Neutrik speakON NL4 connectors for reliable long-life operation
  • 3-Year Warranty Program (contact your Sales Pro for further details)
  • Designed and engineered in England

Turbosound NuQ122-WH Specifications:

  • Frequency Response: 55 Hz – 18 kHz (± 3 dB); 50 Hz – 20 kHz (-10 dB)
  • Nominal Dispersion: 70° H x 70° V @ -6 dB points
  • Directivity Factor (Q): 9.4
  • Directivity Index (DI): 9.7
  • Power Handling (IEC):
    • Passive: 400 W continuous, 1,600 W peak
    • BI-Amp: LF: 400 W continuous, 1,600 W peak; HF: 40 W continuous, 160 W peak
  • Sensitivity: 96 dB (1 W @ 1 m))
  • Maximum SPL:
    • Passive: 122 dB continuous, 128 dB peak
    • BI-Amp: LF: 122 dB continuous, 128 dB peak; HF: 122 dB continuous, 128 dB peak
  • Impedance:
    • Passive: 8 Ω
    • BI-Amp: LF: 8 Ω; HF: 6 Ω
  • Components:
    • 1x 12" (316mm) LF driver
    • 1x 1" (25mm) HF compression driver
  • Connectors: 2x Neutrik speakON NL4
  • Wiring:
    • Passive: Pins 1+ / 1- input, pins 2+ / 2- link
    • Bi-Amp: Pins 1+ / 1- LF, pins 2+ / 2- HF
  • Dimensions (HxWxD): 25.8" x 14.7" x 13.4"(655mm x 374mm x 340mm)
  • Net Weight: 43.1 lbs. (19.6 kg)
  • Construction: ⅝" (15 mm ) birch plywood
  • Finish: Semi matte white paint
  • Grille: Powder coated perforated steel
  • Flying Hardware: M10 x12 points
  • Note: further information can be found within the items located under the "Documentation" tab above.
