Turbosound TCS-1561-WH 15" 600W (16 Ohms) 3-Way Full-Range Bi-Amp/Tri-Amp Loudspeaker with 70°x40° Dispersion in White

OUR PART #: TCS-1561-WH

Copied to clipboard

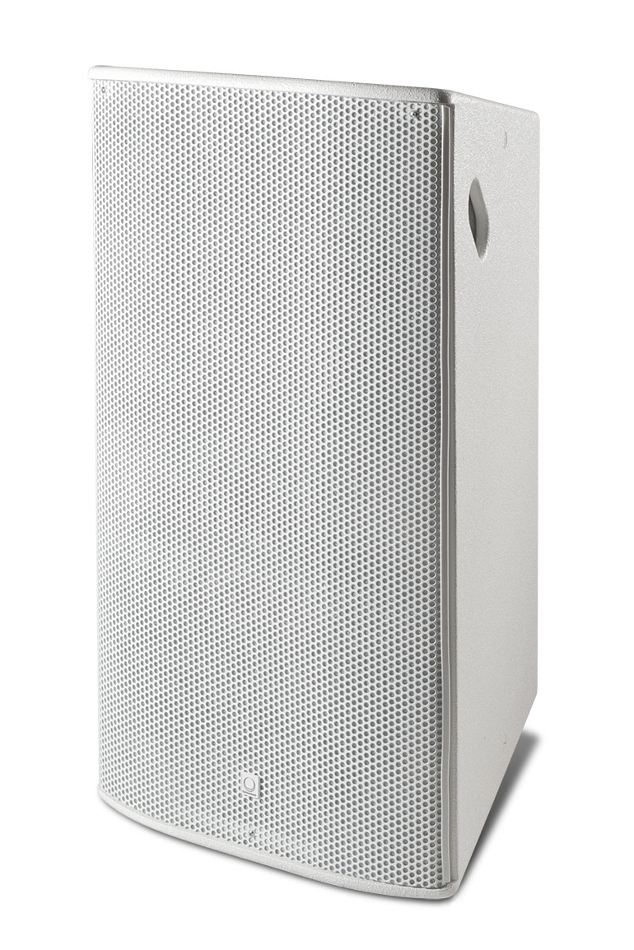

Turbosound TCS-1561-WH 15" 600W (16 Ohms) 3-Way Full-Range Bi-Amp/Tri-Amp Loudspeaker With 70°x40° Dispersion In White Image 1
Turbosound TCS-1561-WH 15" 600W (16 Ohms) 3-Way Full-Range Bi-Amp/Tri-Amp Loudspeaker With 70°x40° Dispersion In White
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Turbosound TCS-1561-WH is a switchable tri-amp/bi-amp three-way full-range loudspeaker designed for use in a wide range of fixed installations and consisting of a 15" reflex loaded low frequency driver, a high efficiency 6.5" mid range driver with low mass coil for improved transient response, and a 1" neodymium high frequency compression driver loaded by a rotatable low distortion waveguide providing 70° horizontal by 40° vertical dispersion. These high grade components are matched with an internal passive crossover, which can be bypassed for fully bi-amped operation. The entire mid/high section is rotatable through 90° within the enclosure, allowing a swap of the horizontal and vertical dispersion patterns.

The double trapezoidal cabinet shape conveniently allows the TCS-1561-WH to be tight packed with other TCS series enclosures. Multiple rigging points, supported by internal steel flying strips, are provided on the top, bottom, sides and rear of the cabinet to enable it to be suspended and angled in permanent installations using M10 shoulder eyebolts. Two Neutrik speakON NL8 speaker connectors are located on the rear panel providing input and link through connections to additional TCS series cabinets.

The TCS-1561-WH is finished in durable white semi matte textured paint.

Turbosound TCS-1561-WH Features:

  • Arrayable 3 way full range loudspeaker for installations
  • 600 Watts continuous, 2,400 Watts peak power
  • 15” low frequency driver
  • High efficiency 6.5” mid range driver with low mass coil for improved transient response
  • 1” neodymium HF compression driver
  • Low distortion waveguide provides 70° H x 40° V dispersion
  • Multiple array configurations for extended coverage
  • Switchable bi-amp/tri-amp operation for flexibility of use
  • Double trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
  • Multiple internal rigging points allow bracket mount and suspension in any orientation
  • 15mm (5/8”) birch plywood enclosure with hard wearing semi matte white paint finish
  • Architecturally styled powder coated perforated steel grille
  • Neutrik speakON NL8 connectors
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound TCS-1561-WH Specifications:

  • Components: 1x 15" (381 mm) LF Driver, 1x 6.5" (165 mm) MF Driver, 1x 1" (25 mm) HF Driver
  • Frequency Response: 50 Hz - 20 kHz (±3dB), 40 Hz - 20 kHz (±10dB)
  • Dispersion: 70° H x 40° V @ -6dB Points
  • Sensitivity (1 W @ 1 M):
    • HF: 108dB
    • MF: 105dB
    • LF: 97dB
    • Bi-amp MF/HF: 105dB
  • Power Handling:
    • HF: 50 Watts Continuous, 200 Watts Peak
    • MF: 400 Watts Continuous, 1,600 Watts Peak
    • LF: 500 Watts Continuous, 2,000 Watts peak
    • Bi-amp MF/HF: 100 Watts Continuous, 400 Watts peak
    • LF: 500 Watts Continuous, 2,000 Watts Peak
  • Calculated Max SPL:
    • HF: 125dB Cont, 131dB Peak
    • MF: 125dB Cont, 131dB Peak
    • LF: 124dB Cont, 130dB Peak
    • Bi-amp MF/HF: 128dB Cont, 134dB Peak
    • Addition: 130dB Cont, 136dB Peak
  • Nominal Impedance:
    • HF: 16 Ohms
    • MF: 16 Ohms
    • LF: 8 Ohms
    • Bi-amp MF/HF: 12 Ohms
  • Crossover: Internal Passive Network at 5 kHz
  • Construction: 15mm (5/8”) Birch Plywood Finished in Semi Matte White Paint
  • Grille: Powder Coated Perforated Steel with Foam Backing
  • Connectors: 2x speakON NL8, Wired Pin 1+, Pin 1-: Link, Pin 2+: LFPositive, Pin 2-: LF Negative, ; Pin 3+: MF Positive, Pin 3-: MF Negative(MF/HF passive), Pin 4+: HF Positive, pin 4-: HF Negative
  • Rigging: 9x M10 Internal Rigging Points with Internal Steel Strips for M10 Eyebolts
  • Dimensions (HxWxD): 38.5" x 21.1" x 18.4" (979mm x 535mm x 467mm)
  • Net Weight: 114.4 lbs (52 kg)
