Turbosound TCS-61 6.5" 2-Way Passive Arrayable Speaker, 175W, Black

OUR PART #: TCS-61

Copied to clipboard

The Turbosound TCS-61 is an arrayable passive two-way full-range loudspeaker designed for use in a wide range of fixed installations. ...Read more

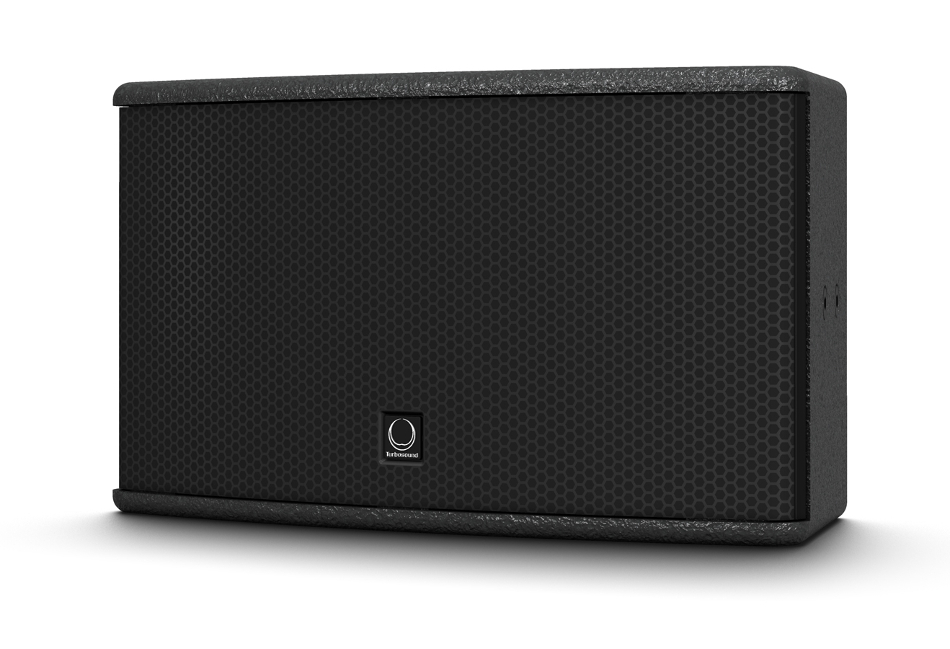

Turbosound TCS-61 6.5" 2-Way Passive Arrayable Speaker, 175W, Black Image 1
Turbosound TCS-61 6.5" 2-Way Passive Arrayable Speaker, 175W, Black Image 2
Turbosound TCS-61 6.5" 2-Way Passive Arrayable Speaker, 175W, Black
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Turbosound TCS-61 is an arrayable passive two-way full-range loudspeaker designed for use in a wide range of fixed installations. It consists of a 6.5" low frequency driver with low mass coil for improved transient response and a 1" neodymium high frequency compression driver on a rotatable 100° horizontal by 60° vertical Converging Elliptical Waveguide in an optimally tuned enclosure. These high grade components are matched with an internal passive crossover to ensure a seamless transition between the HF and LF drivers.

The cabinet is constructed from 12mm (1/2") birch plywood, with an architecturally styled powder coated perforated steel mesh grille backed with reticulated foam. Its trapezoidal shape allows it to be tight packed with other TCS series cabinets and enables visually unobtrusive loudspeaker arrays. Multiple rigging points, supported by internal steel flying strips, are provided on the top, bottom, sides and rear of the cabinet to allow the TCS-61 to be suspended and angled in permanent installations using M8 shoulder eyebolts, and for use with Turbosound and OmniMount wall and ceiling brackets.

A Neutrik speakON NL4 input connector is located on the rear panel wired in parallel with a 4-way barrier strip providing input and link through connections to additional TCS series cabinets. The TCS-61 is finished in hard wearing semi matte black textured paint.

Turbosound TCS-61 Features:

  • Arrayable 2 way full range loudspeaker for installation applications
  • 175 Watts continuous, 700 Watts peak power
  • 6.5” low frequency driver with low mass coil for improved transient response
  • 1” neodymium HF compression driver
  • Rotatable converging elliptical waveguide provides 100° H x 60° V dispersion
  • Multiple array configurations for extended coverage
  • Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
  • Multiple internal rigging points allow bracket mount and suspension in any orientation
  • 12mm (5/8”) birch plywood enclosure with hard wearing semi matte black paint finish
  • Architecturally styled powder coated perforated steel mesh grille
  • Neutrik speakON NL4 and barrier strip connectors
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound TCS-61 Specifications:

  • Components: 1x 6.5" (165 mm) LF Driver, 1x 1" (25 mm) HF Driver on a Converging Elliptical Waveguide
  • Frequency Response: 70 Hz - 20 kHz (±3dB), 50 Hz - 20 kHz (±10dB)
  • Dispersion: 100° H x 60° V @ -6dB points
  • Sensitivity (1 W @ 1 M): 88dB
  • Power Handling: 175 Watts Continuous, 700 Watts Peak
  • Calculated Max SPL: 110dB Continuous, 116dB Peak
  • Nominal Impedance: 8 Ohms
  • Crossover: Internal Fourth Order Passive Network at 2 kHz
  • Construction: 12mm (1/2") birch plywood finished in semi matte black paint
  • Grille: Powder Coated Perforated Stainless Steel with Foam Backing
  • Connectors: Neutrik speakON NL4 Wired Pin 1+: Positive, Pin 1-: Negative, Pins 2+ and 2-: N/C, 4-Way Barrier Strip Connector
  • Rigging:
    • 8x M8 Internal Rigging Points with Internal Flying Strips for M10 Eyebolts
    • 4x M8 Internal Rigging Points for Turbosound Brackets
    • 2x M6 Internal Rigging Points for OmniMount Brackets
  • Dimensions (HxWxD): 9.4" x 15.9" x 7.5" (238mm x 403mm x 190mm)
  • Net Weight: 15.4 lbs (7 kg)
