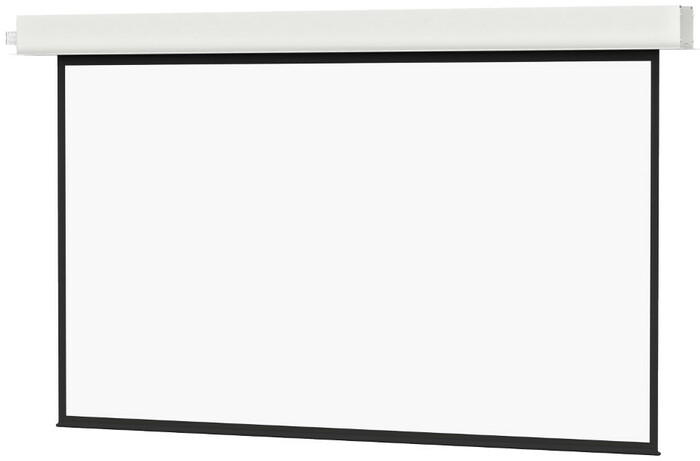

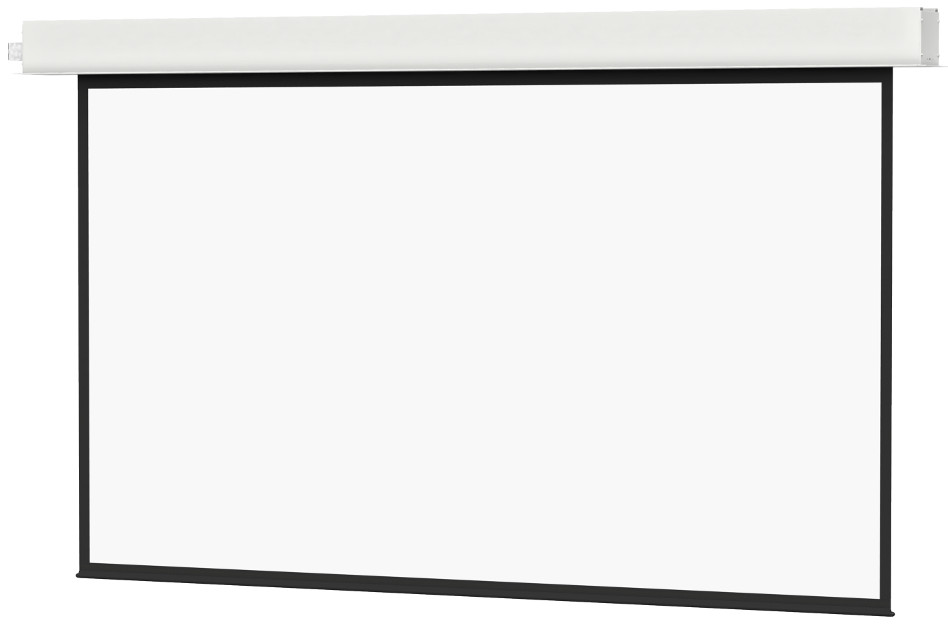

Da-Lite 34526L
Advantage Electrol 164" Diagonal, 87" x 139" Viewing Area Screen

OUR PART #:  34526L

The Da-Lite 34526L is part of the Da-Lite Advantage Electrol series of electric projector screens. This particular model comes with the Video Spectra 1.5 screen surface.
Learn More
Da-Lite 34526L Case Detail
Da-Lite Video Spectra 1.5 Surface Visual Sample
Da-Lite 34526L Ceiling Retracted View

Click a thumbnail to see more images. (5 total)

Our Price: $2,109.60
List Price: $2,637.00
You save 20%!
Write the first review.
Da-Lite 34526L
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Da-Lite 34526L is part of the Da-Lite Advantage Electrol series of electric projector screens. This particular model comes with the Video Spectra 1.5 screen surface.

Da-Lite Advantage Electrol Screens
Designed to eliminate the extra step of finishing the screen with trim, the Advantage line of projection screens is designed with ceiling trim already in place. Once the screen is installed, the screen’s trim conceals the rough opening eliminating the need to complete additional trim work.

Sliding installation brackets make it easy to attach the screen housing to the structure above the drop ceiling.

The Advantage® Electrol® screen features simple in ceiling installation that can be done in two stages. The screen case can be installed during the rough-in construction stage and the fabric assembly can be completed during the finishing stage.

The Advantage Electrol does not include the automatic closure door or the Tensioning Cable System. See the Tensioned Advantage Electrol series for both these features.

Video Spectra 1.5 Screen Surface
Video Spectra 1.5 is a fiberglass surface with a reflective coating for lower output non high-definition projectors. It offers increased brightness with a reduced viewing angle. Suitable for uncontrolled ambient light.

Video Spectra 1.5 can be cleaned with mild soap and water, is flame retardant, mildew resistant, and has achieved GREENGUARD GOLD Certification.

Da-Lite 34526L Advantage Electrol Screen Features:

  • Standard Silent Drive System to keep your screen whisper quiet (sizes up to 10’x10’)
  • Standard Low Voltage Control (LVC) to keep your screen operation flexible
  • Simple Installation with a new installation kit and user-friendly packaging to keep you on schedule
  • Support includes a comprehensive five-year warranty to keep you confident in your purchase
  • UL Plenum rated case
  • White powder-coated case for a clean aesthetic
  • Available with SCB-100 and SCB-200 (RS-232 serial control board) or Video Projector Interface (screen trigger) built into the case (for more information, please contact your Sales Professional)
  • Decora-style, three-button wall switch
  • Standard black backing retains projected brightness
  • Seamless surfaces in all models

Da-Lite 34526L Advantage Electrol Screen Specifications:

  • Note: 2" Standard Black Drop at Top
  • Video Format:  16:10
  • Viewing Area (HxW):  87" x 139" (221cm x 353cm)
  • Nominal Diagonal:  164" (417cm)
  • Overall Length of Case:  149-1/2" (380cm)
  • Approximate Shipping Weight:  104 lbs. (47.2 kg)
  • Video Spectra 1.5 Screen Surface:
    • Half Angle: 35°
    • Gain: 1.5
