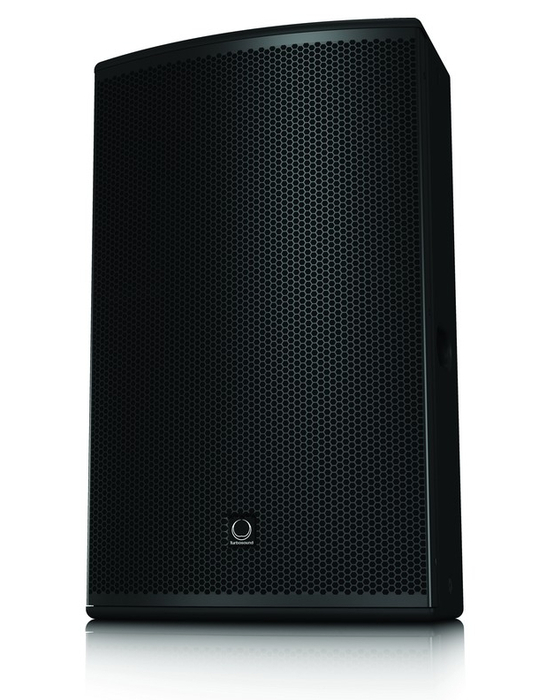

Turbosound NuQ152
15" 500W (8 Ohms) 2-Way Full Range Passive Loudspeaker in Black

OUR PART #  NUQ152

Our Price: $799.99
List Price: $919.99
You save 13%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The 2-way full-range NuQ152 from Turbosound is a switchable passive/bi-amp 2,000 Watt 15" loudspeaker system ideally suited for a wide range of speech and music sound reinforcement applications. Engineered to work in conjunction with TURBOSOUND loudspeaker management systems, the NuQ152 provides optimal performance for FOH, sidefill and delay line loudspeakers, and is an exceptional choice for wedge monitoring applications. The symmetrical trapezoidal shape and high frequency dispersion pattern also make the NuQ152 an obvious choice for mirrored left/right monitor wedge placement.

The NuQ152 loudspeaker features a carbon fiber loaded 15" low frequency driver with an inside/outside wound low mass voice coil for improved transient response, and an aluminium dome 1" neodymium high frequency compression driver mounted on a 70° horizontal by 70° vertical dispersion low distortion waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch. The rear panel connector plate carries Neutrik speakON NL4 connectors for input and link connections to additional enclosures.

Finished in a highly durable semi matte black paint, the cabinet is constructed from 15 mm (5/8") birch plywood and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. Multiple threaded rigging points are provided for suspension in any orientation, or for mounting with industry standard wall brackets. An optional flying yoke allows for further flexibility in install applications (available separately). The NuQ152 also features a 35 mm socket for standard pole mounting, plus integrated handles for convenient transport.

Turbosound NuQ152 Features:

  • 2 way full range loudspeaker for portable PA applications
  • 500 Watts continuous, 2,000 Watts peak power
  • Ideal for FOH, side fill and monitor applications
  • Carbon fiber loaded 15" low frequency driver with inside/outside coil
  • Aluminium dome 1" neodymium motor compression driver
  • Low distortion waveguide provides 70° H x 70° V dispersion
  • 15 mm (5/8") birch plywood enclosure with hard wearing semi matte black paint finish
  • Rugged powder coated perforated steel mesh grille
  • Integral 35 mm pole mount and handles
  • Multiple internal rigging points allow bracket mount and suspension in any orientation
  • Neutrik speakON NL4 connectors for reliable long life operation
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound NuQ152 Specifications:

  • Frequency Response:  50 Hz – 18 kHz (± 3dB); 45 Hz – 20 kHz (-10dB)
  • Nominal Dispersion:  70° H x 70° V @ -6 dB points
  • Directivity Factor (Q):  9.4
  • Directivity Index (DI):  9.7
  • Power Handling (IEC):
    • Passive:  500 W continuous, 2,000 W peak
    • Bi-amp:  LF: 500 W continuous, 2,000 W peak HF: 40 W continuous, 160 W peak
  • Sensitivity:  97dB (1 W @ 1 m)
  • Maximum SPL:
    • Passive:  8 Ohms
    • Bi-Amp:  LF: 8 Ohms HF: 6 Ohms
  • Crossover Type:  Passive / Bi-amp switchable
  • Components:  1x 15" (394 mm) LF driver; 1x 1" (25 mm) HF compression driver
  • Connectors:  2x Neutrik speakON NL4
  • Wiring:
    • Passive:  Pins 1+ / 1- input, pins 2+ / 2- link
    • Bi-Amp:  Pins 1+ / 1- LF, pins 2+ / 2- HF
  • Dimensions (HxWxD):  28" x 16.9" x 15.2" (712mm x 430mm x 385mm)
  • Net Weight:  53.7 lbs (24.4 kg)
  • Construction:  15 mm (5/8") birch plywood
  • Finish:  Semi matte black paint
  • Grille:  Powder coated perforated steel
  • Flying Hardware:  M10 x12 points

Turbosound NuQ152
15" 500W (8 Ohms) 2-Way Full Range Passive Loudspeaker in Black

OUR PART #  NUQ152

Product Information:

The 2-way full-range NuQ152 from Turbosound is a switchable passive/bi-amp 2,000 Watt 15" loudspeaker system ideally suited for a wide range of speech and music sound reinforcement applications. Engineered to work in conjunction with TURBOSOUND loudspeaker management systems, the NuQ152 provides optimal performance for FOH, sidefill and delay line loudspeakers, and is an exceptional choice for wedge monitoring applications. The symmetrical trapezoidal shape and high frequency dispersion pattern also make the NuQ152 an obvious choice for mirrored left/right monitor wedge placement.

The NuQ152 loudspeaker features a carbon fiber loaded 15" low frequency driver with an inside/outside wound low mass voice coil for improved transient response, and an aluminium dome 1" neodymium high frequency compression driver mounted on a 70° horizontal by 70° vertical dispersion low distortion waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch. The rear panel connector plate carries Neutrik speakON NL4 connectors for input and link connections to additional enclosures.

Finished in a highly durable semi matte black paint, the cabinet is constructed from 15 mm (5/8") birch plywood and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. Multiple threaded rigging points are provided for suspension in any orientation, or for mounting with industry standard wall brackets. An optional flying yoke allows for further flexibility in install applications (available separately). The NuQ152 also features a 35 mm socket for standard pole mounting, plus integrated handles for convenient transport.

Turbosound NuQ152 Features:

  • 2 way full range loudspeaker for portable PA applications
  • 500 Watts continuous, 2,000 Watts peak power
  • Ideal for FOH, side fill and monitor applications
  • Carbon fiber loaded 15" low frequency driver with inside/outside coil
  • Aluminium dome 1" neodymium motor compression driver
  • Low distortion waveguide provides 70° H x 70° V dispersion
  • 15 mm (5/8") birch plywood enclosure with hard wearing semi matte black paint finish
  • Rugged powder coated perforated steel mesh grille
  • Integral 35 mm pole mount and handles
  • Multiple internal rigging points allow bracket mount and suspension in any orientation
  • Neutrik speakON NL4 connectors for reliable long life operation
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound NuQ152 Specifications:

  • Frequency Response:  50 Hz – 18 kHz (± 3dB); 45 Hz – 20 kHz (-10dB)
  • Nominal Dispersion:  70° H x 70° V @ -6 dB points
  • Directivity Factor (Q):  9.4
  • Directivity Index (DI):  9.7
  • Power Handling (IEC):
    • Passive:  500 W continuous, 2,000 W peak
    • Bi-amp:  LF: 500 W continuous, 2,000 W peak HF: 40 W continuous, 160 W peak
  • Sensitivity:  97dB (1 W @ 1 m)
  • Maximum SPL:
    • Passive:  8 Ohms
    • Bi-Amp:  LF: 8 Ohms HF: 6 Ohms
  • Crossover Type:  Passive / Bi-amp switchable
  • Components:  1x 15" (394 mm) LF driver; 1x 1" (25 mm) HF compression driver
  • Connectors:  2x Neutrik speakON NL4
  • Wiring:
    • Passive:  Pins 1+ / 1- input, pins 2+ / 2- link
    • Bi-Amp:  Pins 1+ / 1- LF, pins 2+ / 2- HF
  • Dimensions (HxWxD):  28" x 16.9" x 15.2" (712mm x 430mm x 385mm)
  • Net Weight:  53.7 lbs (24.4 kg)
  • Construction:  15 mm (5/8") birch plywood
  • Finish:  Semi matte black paint
  • Grille:  Powder coated perforated steel
  • Flying Hardware:  M10 x12 points
