Turbosound NUQ6 NuQ-6 6" 200W (8 Ohms) 2-Way Full-Range Passive Loudspeaker in Black

OUR PART #: NUQ6

Copied to clipboard

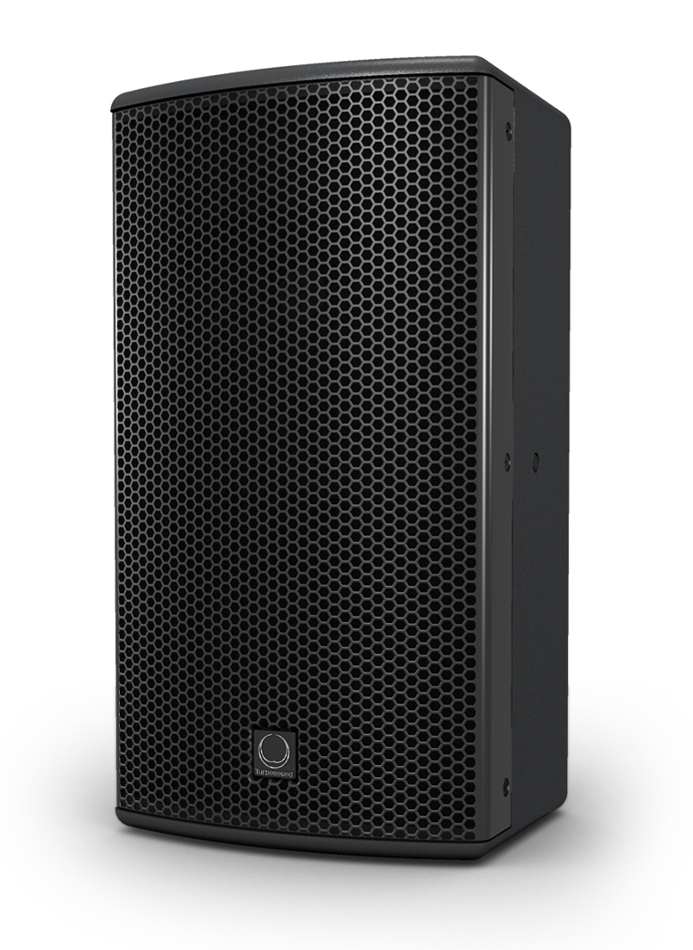

Turbosound NUQ6 NuQ-6 6" 200W (8 Ohms) 2-Way Full-Range Passive Loudspeaker In Black Image 1
Turbosound NUQ6 NuQ-6 6" 200W (8 Ohms) 2-Way Full-Range Passive Loudspeaker In Black Image 2
Turbosound NUQ6 NuQ-6 6" 200W (8 Ohms) 2-Way Full-Range Passive Loudspeaker In Black
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Turbosound NuQ-6 is an ultra-compact passive loudspeaker system consisting of a front-loaded 6.5" neodymium low frequency driver and a 1" neodymium high frequency compression driver on a rotatable 90°H x 60°V Converging Elliptical Waveguide matched with an internal passive crossover network.

When used with Turbosound LMS Series controllers the NuQ-6 provides optimum performance for small applications with considerable flexibility to adapt to varying venue requirements, and is particularly effective as part of a high performance sound reinforcement package together with Turbosound subwoofer cabinets. In addition a high degree of system control can be achieved by integrating NuQ loudspeakers into a BVNet network using TurboDrive control software. The HF waveguide can be rotated through 90° within the enclosure, making it possible to swap the horizontal and vertical coverage patterns.

The birch plywood cabinet is finished in black semi-matte textured paint, and includes a steel mesh grille backed with reticulated foam. Its asymmetrical shape, together with the rotatable HF horn pattern, creates an additional role for monitor wedge or lip-fill applications. The cabinet includes multiple rigging points for use with optional flying yokes and swivel brackets, and includes three Neutrik speakON NL4 connectors.

Turbosound NuQ-6 Features:

  • 2 way full range loudspeaker for portable PA applications
  • 200 Watts continuous, 800 Watts peak power
  • Ideal for FOH, side fill and monitor applications
  • 6.5” low frequency driver with low mass voice coil for improved transient response
  • 1” neodymium HF compression driver
  • Rotatable converging elliptical waveguide provides 100° H x 60° V dispersion
  • 12 mm (1/2”) birch plywood enclosure with hard wearing semi matte black paint finish
  • Rugged powder coated perforated steel mesh grille
  • M10 and M8 rigging points compatible with Turbosound and OmniMount brackets
  • Neutrik speakON NL4 connectors for reliable long life operation
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound NuQ-6 Specifications:

  • Components: 1x 6.5” (165 mm) LF Driver, 1x 1” (25 mm) HF Driver on a Converging Elliptical Waveguide
  • Frequency Response: 80 Hz - 20 kHz (± 3dB); 65 Hz - 20 kHz (± 10dB)
  • Dispersion: 90° H x 60° V @ -6 dB Points. Rotatable Waveguide Allows Swap of Horizontal and Vertical Pattern
  • Sensitivity (1 W @ 1 M): 92dB
  • Power Handling: 200 Watts Continuous, 800 Watts Peak
  • Calculated Max SPL: 115dB Continuous, 121dB Peak
  • Nominal Impedance: 16 Ohms
  • Crossover: Internal Passive Crossover at 4 kHz
  • Construction: 12 mm (1/2”) Birch Plywood Finished in Semi Matte Black Paint
  • Grille: Powder Coated Perforated Steel With Acoustically Transparent Reticulated Foam
  • Connectors: 3x Neutrik speakON NL4, wired Pin1+: Positive, Pin 1-: Negative, Pins 2+ and 2-: N/C
  • Rigging: M8 Rigging Points for Swivel Brackets, Flying Yokes and M8 Shoulder Eyebolts
  • Dimensions (HxWxD): 13.8" x 7.5" x 8.3” (350mm x 190mm x 210mm)
  • Net Weight: 12.5 lbs (5.7 kg)
