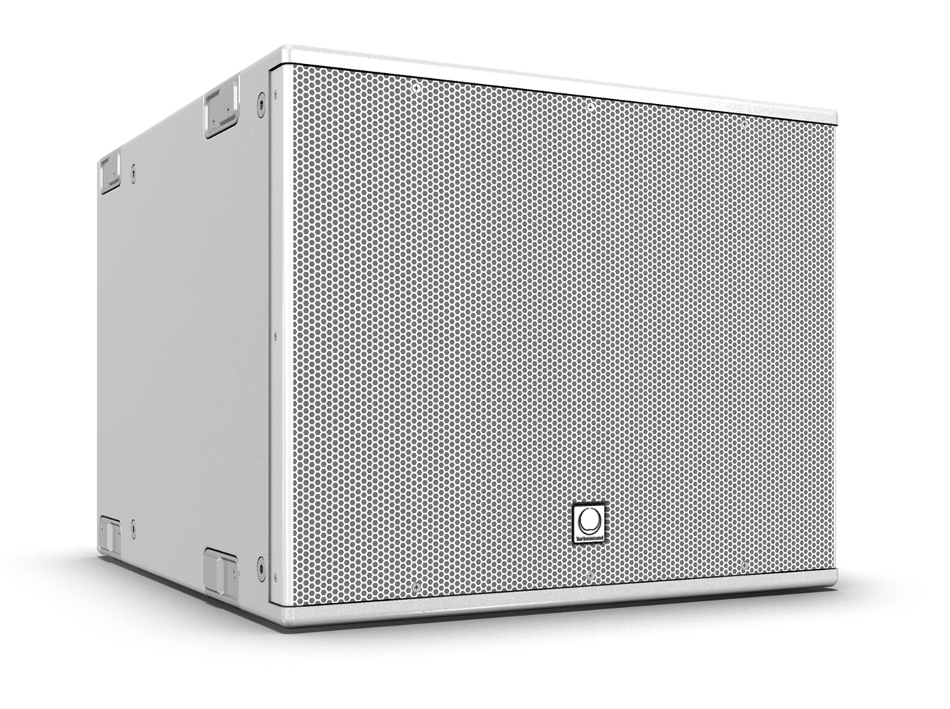

Turbosound NuQ115B-WH 15" Portable Passive Front-Loaded Subwoofer, 500W, White

OUR PART #: NUQ115B-WH MFR #: TS-NUQ115B-WH

Copied to clipboard

A 2,000 Watt, front-loaded 15" subwoofer system, the NuQ115B-WH from Turbosound is suited nicely for use in a wide variety of music and live sound reinforcement applications. ...Read more

Turbosound NuQ115B-WH 15" Portable Passive Front-Loaded Subwoofer, 500W, White Image 1
Turbosound NuQ115B-WH 15" Portable Passive Front-Loaded Subwoofer, 500W, White Image 2
Turbosound NuQ115B-WH 15" Portable Passive Front-Loaded Subwoofer, 500W, White
Our Price: $969.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

A 2,000 Watt, front-loaded 15" subwoofer system, the NuQ115B-WH from Turbosound is suited nicely for use in a wide variety of music and live sound reinforcement applications. Designed to work in concert with Turbosound's loudspeaker management systems, it extends system low-end frequency response, providing optimal front-of-house (FOH) performance, as well as exceptional drum and side fill monitoring applications.

It's a bass-reflex port design enclosure that features a high-power, double-suspension 15" low frequency (LF) driver that utilizes a specialized inside/outside wound voice coil, providing higher magnetic density, better heat dissipation, high power-handling capacity, plus enhanced efficiency. It offers fast and accurate transient response for virtually distortion-free operation.

The cabinet comes finished in a highly-durable semi-matte white paint (a black version, the NuQ115B, is available separately), is constructed from ¾" (18mm) birch plywood, and includes a rugged, powder coated, perforated steel-mesh grille that's backed with reticulated foam. Features also include an integral 35mm pole socket, internal M10 rigging points, and recessed carry handles that all come standard, as do the high-impact interlocking corners, which also ensure ground-stacking stability. The rear panel connector plate carries Neutrik speakON® NL4 connectors, with switchable input and link connections that enable use for standalone subwoofer applications, or subwoofer and satellite speaker connectivity via 4-core speaker cabling.

Turbosound NuQ115B-WH Features:

  • Front-loaded subwoofer for portable PA applications
  • 500 Watts continuous, 2,000 Watts peak power
  • Double suspension 15" LF driver with inside/outside wound coil
  • Low distortion bass-reflex port design
  • ¾" (18mm) birch plywood enclosure with hard wearing semi matte white paint finish
  • Integral M10 rigging points for ease of installation
  • 35mm pole-mount to support satellite speaker
  • Neutrik speakON NL4 connectors for reliable long life operation
  • 3-Year Warranty Program (contact your Sales Pro for further details)
  • Designed and engineered in the U.K.

Turbosound NuQ115B-WH Specifications:

  • Frequency Response:
    • 45 Hz - 150 Hz ± 3 dB
    • 38 Hz - 200 Hz -10 dB
  • Nominal Dispersion: Half space
  • Power Handling (IEC): 500 W continuous, 2,000 W peak
  • Sensitivity: Sensitivity 99 dB (1 W @ 1 m)
  • Maximum SPL: 126 dB continuous, 132 dB peak
  • Impedance: 8 Ω
  • Components: 1 x 15" (387 mm) LF driver
  • Connectors: 2x Neutrik speakON NL4
  • Wiring:
    • Switch position 1: Pins 1+ / 1- input, pins 2+ / 2- link
    • Switch position 2: Pins 1+ / 1- lf, pins 2+ / 2- input
  • Dimensions (HxWxD): 20.4" x 22.8" x 24.4" (519mm x 579mm x 620mm)
  • Net Weight: 79.3 lbs. (36 kg)
  • Construction: ¾" (18mm) birch plywood
  • Finish: Semi-matte white paint
  • Grille: Powder coated, perforated steel
  • Flying Hardware: M10 x16 points
  • Note: further information can be found within the items located under the "Documentation" tab above.
