Xantech EN85K
Ensemble Universal IR Kit


Call for price! Not available online.

The EN85K Ensemble from Xantech is a convertible IR Receiver Kit that can be adapted to almost any surface mount, flush mount or shelf mount application. It includes all of the parts necessary for installing a single-room IR Repeater System for controlling a TV, Audio/Video Receiver, Blu-ray player, Cable Box, Satellite Receiver - just about any IR controlled A/V home entertainment device.

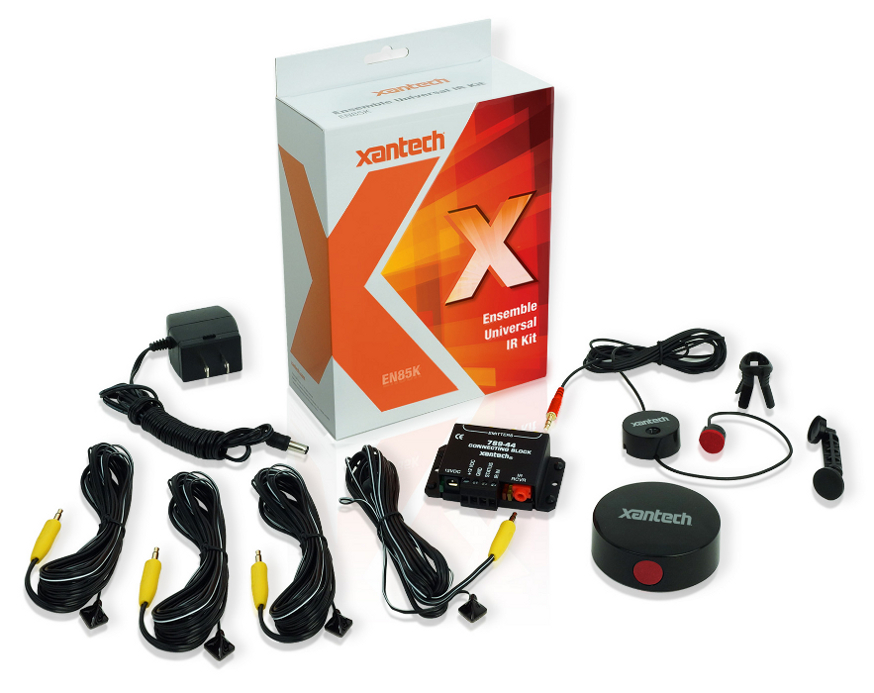

The kit includes an IR Receiver that can be attached to the front of a TV, or extended from behind with the TV Mount Adapter on flat panel TVs that have a minimal frame around the display area. The receiver can also be adapted to low-profile shelf-top placement with the Tabletop Adapter or inconspicuously mounted in a cabinet door with the Flush Mount Adapter for controlling IR components hidden in an equipment cabinet.


  • (1) EN85 IR Receiver
  • (1) Tabletop Adapter
  • (1) Flush Mount Adapter
  • (1) TV Mount Adapter
  • (1) 789-44 Connecting Block
  • (1) 781ERGPS Power Supply
  • (4) 283D IR Emitters
  • (1) BOT-1.0 IR Terminal
  • (1) PTP-1 Plug to Plug Jumper
  • (1) IR Parallel Block

Xantech EN85K Features:

  • Compatible with most CFL light bulbs
  • Compatible with most Plasma, LED and LCD TVs
  • Excellent ambient noise rejection with IR carrier pass-through designensures highest level of reliability

Xantech EN85K Specifications:

  • Infrared carrier frequency bandwidth: 30-60 kHz
  • Reception range: Up to 80 feet*
  • Reception angle: +/- 45º
  • Max. Transmission length: 1 mile using 18 gauge wire
  • Maximum current output: 100mA
  • IR Receiver Dimensions: .55” diameter (14mm)
  • Power requirements: +12VDC, 100mA

NOTES: *Depending on remote control output strength and ambient conditions.
