Turbosound B-18WH
NuQ Series 18" 600W (8 Ohms) Passive Band Pass Subwoofer in White

OUR PART #  B-18WH

Our Price: $999.00
List Price: $1,148.85
You save 13%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Turbosound B-18WH is a single 18" bandpass subwoofer enclosure designed to work in conjunction with Turbosound LMS series loudspeaker management systems, providing optimum system performance. NuQ systems can be controlled over a BVNet network using TurboDrive control software.

The B-18WH consists of a custom 18" neodymium low frequency driver in a bandpass enclosure optimally tuned for extended low frequency response. The cabinet is finished in black semi-matte textured paint. Heavy duty corner protectors are fitted, and recessed flush handles are provided for easy lifting and carrying.

An integral pole mount socket is fitted to the top of the enclosure to allow two-way cabinets to be mounted at the correct height above the subwoofer. Internal M10 rigging points are fitted on the sides, top and bottom to enable rigging in fixed installations. A rear panel connector plate carries two Speakon NL4 connectors for loop in and loop out connections to additional enclosures.

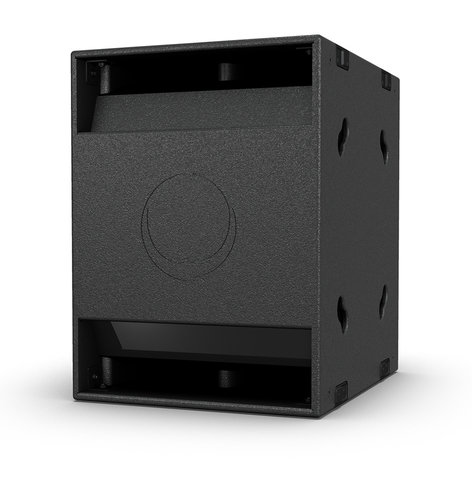

NOTE:   Image shown above is for illustrative purposes only; actual product will come White in color. For more information on this and other products, contact your Sales Representative.

Turbosound B-18WH Features:

  • Bandpass subwoofer for portable PA applications
  • 600 Watts continuous, 2,400 Watts peak power
  • 18” neodymium low frequency driver
  • Low distortion dual port design for maximum sound pressure level
  • 18 mm (3/4”) birch plywood enclosure with hardwearing semi matte white paint finish
  • Integral M10 rigging points for ease of installation
  • 35 mm pole mount to support satellite speaker
  • Neutrik speakON NL4 connectors for reliable long life operation
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound B-18WH Specifications:

  • Components:  1x 18" (457 mm) LF Driver
  • Frequency Response:  40 Hz – 150 Hz ±3 dB, 33 Hz – 150 Hz ±10 dB
  • Sensitivity (1 W @ 1 M):  102dB (1 Watt @ 1Meter)
  • Power Handling:  600 Watts Continuous, 2,400 Watts Peak
  • Calculated Max SPL:  130 dB Continuous, 136 dB Peak
  • Nominal Impedance:  8 Ohms
  • Construction:  18 mm (3/4") Birch Plywood, Finished in Semi Matte White Paint. Eight Recessed Carrying Handles. Integral Pole Mount Socket
  • Grille:  Powder Coated Perforated Steel Backed with Reticulated Foam
  • Connectors:  2x Neutrik speakON NL4, wired Pin1+: Positive, Pin 1-: Negative; Pin 2+ and Pin 2-: N/C
  • Rigging:  M10 Rigging Points for use with M10 Eyebolts
  • Dimensions (HxWxD):  30.2" x 22.6" x 27.6" (768mm x 574mm x 700mm)
  • Net Weight:  136.4 lbs (62 kg)

Click to download

Turbosound B-18WH
NuQ Series 18" 600W (8 Ohms) Passive Band Pass Subwoofer in White

OUR PART #  B-18WH

Product Information:

The Turbosound B-18WH is a single 18" bandpass subwoofer enclosure designed to work in conjunction with Turbosound LMS series loudspeaker management systems, providing optimum system performance. NuQ systems can be controlled over a BVNet network using TurboDrive control software.

The B-18WH consists of a custom 18" neodymium low frequency driver in a bandpass enclosure optimally tuned for extended low frequency response. The cabinet is finished in black semi-matte textured paint. Heavy duty corner protectors are fitted, and recessed flush handles are provided for easy lifting and carrying.

An integral pole mount socket is fitted to the top of the enclosure to allow two-way cabinets to be mounted at the correct height above the subwoofer. Internal M10 rigging points are fitted on the sides, top and bottom to enable rigging in fixed installations. A rear panel connector plate carries two Speakon NL4 connectors for loop in and loop out connections to additional enclosures.

NOTE:   Image shown above is for illustrative purposes only; actual product will come White in color. For more information on this and other products, contact your Sales Representative.

Turbosound B-18WH Features:

  • Bandpass subwoofer for portable PA applications
  • 600 Watts continuous, 2,400 Watts peak power
  • 18” neodymium low frequency driver
  • Low distortion dual port design for maximum sound pressure level
  • 18 mm (3/4”) birch plywood enclosure with hardwearing semi matte white paint finish
  • Integral M10 rigging points for ease of installation
  • 35 mm pole mount to support satellite speaker
  • Neutrik speakON NL4 connectors for reliable long life operation
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound B-18WH Specifications:

  • Components:  1x 18" (457 mm) LF Driver
  • Frequency Response:  40 Hz – 150 Hz ±3 dB, 33 Hz – 150 Hz ±10 dB
  • Sensitivity (1 W @ 1 M):  102dB (1 Watt @ 1Meter)
  • Power Handling:  600 Watts Continuous, 2,400 Watts Peak
  • Calculated Max SPL:  130 dB Continuous, 136 dB Peak
  • Nominal Impedance:  8 Ohms
  • Construction:  18 mm (3/4") Birch Plywood, Finished in Semi Matte White Paint. Eight Recessed Carrying Handles. Integral Pole Mount Socket
  • Grille:  Powder Coated Perforated Steel Backed with Reticulated Foam
  • Connectors:  2x Neutrik speakON NL4, wired Pin1+: Positive, Pin 1-: Negative; Pin 2+ and Pin 2-: N/C
  • Rigging:  M10 Rigging Points for use with M10 Eyebolts
  • Dimensions (HxWxD):  30.2" x 22.6" x 27.6" (768mm x 574mm x 700mm)
  • Net Weight:  136.4 lbs (62 kg)

Click to download
