Product Overview

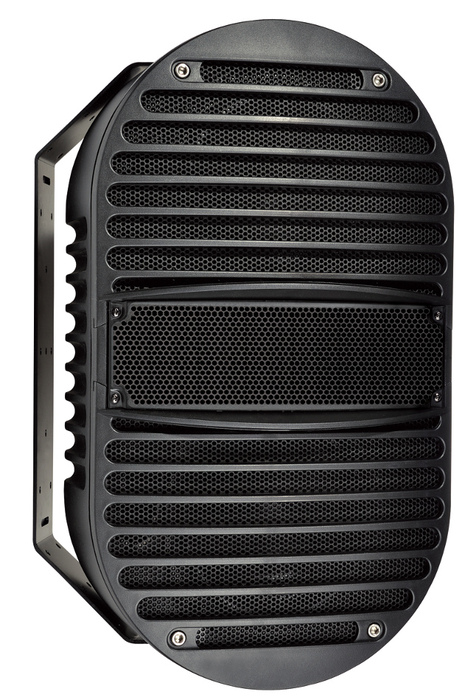

The Bogen Communications A12 is a compact, high-powered speaker that provides high sound quality and projects well in open spaces like theme parks, sports fields, and plazas.
Precise sound reproduction is achieved with two 6.5" mid/bass drivers employing both MDT and patented MLS technologies for superior sound and weather resistance. The high-frequency driver is a 1.9" horn-loaded diaphragm (1" exit). A built-in 128W transformer makes the A12 compatible with 70V sound systems. The transformer can be easily bypassed for use in low-impedance systems (16 ohms). Bogen's patented spiderless technology (MLS™) and advanced materials deliver out-of-the-box performance year after year. Speaker diaphragms are manufactured with materials that will not be altered by constant exposure to UV rays or water, cold or heat, or extremely high or low humidity.
Bogen Communications A12 Features:
- One unit for both 70V and low-impedance applications
- Maximum power handling capacities of 225W at 16-ohm and 128W at 70V
- Weatherproof, ported cabinet for indoor and outdoor applications
- High efficiency and power handling for optimal performance
- 70V Power settings: 128, 64, 32, 16, 8 watts
- Dual 6.5" metal-alloy MDT™ mid/bass speaker cones are extremely stable in all environments
- Patented MLS™ Ferrofluid voice coil suspension replaces distortion-causing mechanical spider
- Horn-loaded, 1" exit compression driver features a 1.9" Mylar diaphragm for consistent long-term performance
- 90° Horn delivers constant coverage over listening area
- Dual-layer voice coil with separate inner and outer windings for high output and ultra-low distortion
- Advanced polymer compound surrounds resist UV rays, chemicals, and saltspray
- Gold-plated, rust-proof input connectors
- High-density, injection-molded cabinet resists chipping and scratching
- Low-resonance cabinet structure
- Specially designed vent covers help keep water out
- Heavy-gauge stainless steel mounting yoke with 180° swivel
- Easy-to-grip, oversized mounting knobs
- Speaker mounts with knobs attached for easier, safer installation in hard-to-reach locations
- Corrosion-resistant woofer frames and mounting hardware for long-lasting, like-new appearance
- Black cabinet color, attractive styling using patented Armadillo ridges that improve durability as well as sound
- Unique MDT™ (Metal Diaphragm Technology):
- High rigidity and low mass of metal versus traditional papers and plastics
- Extremely stable cone structure over long periods of time
- Fast transmission of sound through the diaphragm means low energy storage
- Special anodizing process creates a ceramic coating for increased stiffness
- Efficient heat-sinking of voice coils under long-term, high-power situation
- Patented MLS™ (Magnetic Liquid Suspension):
- Voice coil is constantly centered for lower distortion
- Voice coil is more efficiently heat-sinked by fluid instead of air
- Greater linearity is accomplished because the mechanical spider is eliminated
- Constant lubrication of the gap prevents oxidation from outdoor use
Bogen Communications A12 Specifications:
- Frequency Response (-10 dB)*: 55 Hz to 17.5 kHz
- *Half-space response, 16-ohm input
- LF Driver: Dual Metal-Composite 6.5" Cone Woofers, Patented MLS Voice Coil Guidance System
- HF Driver: Weatherproof 1.9" Mylar Diaphragm, Constant Directivity Horn, 1" Exit
- Sensitivity (1W/1M): 94.5 dB spl
- Dispersion: 90° Horizontal, 45° Vertical
- Impedance Ratings: Low (16 ohms) / High (70V)
- Power Input (Max.): 225W @ 16 ohms; 128W @ 70V
- Power Settings (in watts): 70V: 128, 64, 32, 16, 8
- Grille Material: Perforated Polypropylene
- Cabinet Material: Black, Mineral-filled Polypropylene, with UV Inhibitor
- Terminations: Dual 4-Terminal Barrier Strips with Gold-plated, Rust-proof Screws
- Product Weight: 22 lbs
- Speaker Dimensions: 10-1/4" W x 17-7/8" H x 11-3/4" D
- Included Accessories: Color-matched, Stainless Steel Mounting Bracket
