Vaddio RoboSHOT 30 QCCU System
PTZ HD Camera System with 30x Lens and CCU Cat.5


Call for price! Not available online.
List Price: $6,395.00

Select model: (shipping times are approximate)

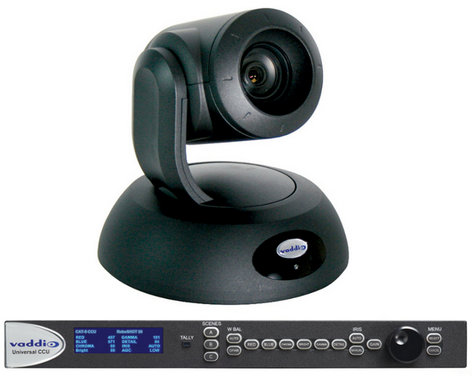

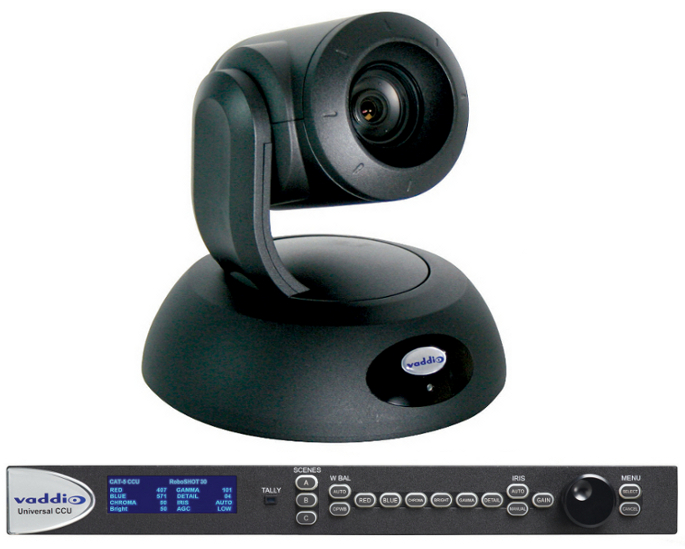

Vaddio offers the RoboSHOT 30 QCCU System (also known as 999-9917-000) that consists of a RoboSHOT 30 HD PTZ camera and a Quick-Connect Universal CCU.

The RoboSHOT 30 HD PTZ Camera is a powerful, professional quality PTZ camera with high quality imaging, exceptional detail and marvelous color reproduction. This camera offers integrators, dealers and end users with an incredible advantage over other professional PTZ cameras available today. The RoboSHOT 30 is perfect for medium to large rooms and provides exceptional support for applications including, House of Worship services, large auditorium A/V systems, large distance learning classrooms, live event theatres, IMAG for performances, large lecture theatres with lecture capture and more!
One of the key features of the RoboSHOT cameras is Tri-Synchronous Motion, a camera control protocol that allows all three (pan, tilt and zoom) axes to move simultaneously. The algorithm calculates the position and velocity of the smooth, direct-drive motor movements between the presets so pan, tilt and zoom arrive at the preset shot simultaneously, which allows for smooth and useable on-air camera movements.

The Quick-Connect CCU enables the adjustment of AWB, red and blue gain, brightness, OPWB, gamma, chroma, detail, iris and gain controls with a simple press of a buttom on the Quick-Connect CCU. These controls deliver a more accurate representation of the image that is being captured and the ability to color match and shade multiple cameras. User-defined adjustments can be stored on three Scene-Store buttons.
The Quick-Connect CCU delivers high-quality HD Video, power and control over three Cat. 5 cables up to 500 feet without loss of video quality or latency. Outputs include analog component YPbPr, HDMI and HD-SDI for extreme flexibility in system design and integration. All outputs are live simultaneously.

Vaddio RoboSHOT 30 QCCU System Features:

  • 30x zoom with up to a 63.7° wide horizontal field-of-view
  • Exmor 1/2.8", 2.34 Megapixel, Full HD (1080p/60 native) high-speed, low noise CMOS sensor
  • Built-in web server for setup and control
  • Power/Video/Control on (3) Cat-5's up to 500' (152.5m)
  • Thin profile wall mount and mounting hardware included
  • Quick-Connect Universal CCU Interface with HDMI, HD-SDI and HD YPbPrOutputs

Vaddio RoboSHOT 30 QCCU System Specifications:

  • RoboSHOT Cameras:
    • Part Numbers: RoboSHOT 30 QCCU System, 999-9917-000 (North America), 999-9917-001 (Int’l)
    • Image Device: 1/2.8-Type Exmor CMOS Sensor
    • Video Resolution/Frequencies: 1080p60/59.94/50/30/25, 1080i/60/59.94i/50, 720p/60/59.94/50/30/25
    • Vaddio Special Features:
      • Tri-Synchronous Motion: Concurrent PTZ motor movement and simultaneous PTZ arrival at a stored preset
    • Advanced ISP: Vivid and accurate color reproduction with extremely fast, razor sharp automatic focus and iris routines
    • Video Aspect Ratio: 16:9 Aspect Ratio for all resolutions
    • Effective Pixels:
      • 2.14 Million Effective pixels
      • 2.38 Million Total Pixels
  • RoboSHOT 30 HD PTZ Camera:
    • Lens and Horizontal FOV:
      • 30X Optical Zoom
      • 65° (wide end) to 2.3° (tele end), F1.6 to F4.7
    • Minimum illumination RoboSHOT 30: 1.4 lx (F1.6, 50IRE), recommended illumination >100 lux and <100,000 lux
    • Minimum working distance: RoboSHOT 30 10mm (wide), 1.2m (tele)
    • S/N ratio: More than 50 dB
    • Sync system: Internal
    • White balance: Auto, ATW, Indoor, Outdoor, One-push, Manual (accessible through external control)
    • Gain: Auto / Manual (0 to 28 steps - accessible through external control)
    • Back-light compensation: On/Off (IR Remote)
    • Focusing system: Auto Focus / Manual Focus Mode / One Push Trigger Mode / Infinity Mode / Near Limit Mode
    • Noise Reduction: On/Off, 6 Steps, Off through 5 (accessible through external control)
    • Aperture/Detail: 16 Steps (accessible through external control)
    • Control Interface(s):
      • RS-232 API: Modified VISCA Emulation (TTL signal level) Baud rate: 9600 bps and 38,400 bps, 1-Stop bit. Default to 9.6 Kb/s for Cat-5e Distance
      • Telnet Serial Command API
      • Internal Web page for Network Set-up, firmware updates and network management
      • Vaddio IR Remote Commander
    • Pan & Tilt Angle/Speed:
      • Pan/Tilt Angles: ±160°, Tilt: +90°, -30°
      • Pan/Tilt Speeds: Both Axes 0.35°/sec to 120°/sec
    • Rear Panel Connectors:
      • Network: RJ-45 with Green & Yellow LED to show connection and usage
      • RS-232 Out: RJ-45, Carries bidirectional control to and from the camera
      • EZ Power Video: RJ-45 Shielded, carries power and differential video signals for the Quick-Connect Cat-5 systems
    • Rear Panel Controls:
      • 16-Position Rotary Switch for Resolution selection
      • 8-Position Dip Switch for IR Frequency, Image Flip, wide mode and Reset to Default Settings
    • Power Supply: Powered by Quick-Connect interfaces
    • Compatible Joystick and Video Control Consoles:
      • ProductionVIEW Precision Camera Controller
      • ProductionVIEW HD
      • ProductionVIEW HD MV with Integrated Multi-viewer,
      • ProductionVIEW HD-SDI MV with Integrated Multi-viewer
      • AV Bridge MATRIX PRO
    • Operating/Storage Temperature/Humidity: 0°C (32°F) to 40°C (104°F), 20% to 80%
    • Mass: 4.85 lbs.(2.199923 kg - Roughly 900 peanut M&Ms)
    • Dimensions:
      • Small (3 dimensions not counting space/time)
      • 6.942” (176.3mm) H x 7.056” (179.2 mm) W x 6.757” (171.6mm) D
  • Quick-Connect Universal CCU:
    • CCU Connectors:
      • Power Connector: 5.5mm OD x 2.5mm ID
      • Power RJ-45: Supplies 36VDC to Camera
      • RS-232 IN RJ-45: Accepts RS-232 from controllers
      • RS-232 OUT RJ-45: Passes RS-232 to Camera
    • Tally: 2-Pin Phoenix type spring cage connector
    • Video From Camera RJ-45: Accepts differential video from camera (only supports resolutions above 50 Hz)
    • Video Outputs:
      • HD-YPbPr on DE-15-F connector
      • HDMI on HDMI-F connector
      • HD-SDI on Edge Mount Carrier Class, Gold BNC-F (3Gb/s Single Link 1080p/60 HD-SDI)
    • Video Adjustments: Y-Gain (+/- up to 10 IRE luminance gain) for fine tuning over longer cable distances, Skew for cabling distance compensation, HDMI color space (YCbCr or sRGB)
    • Cat-5 Cable Maximum Distance: Up to 500’ (152.4m)
    • Power Supply: 36 VDC, 2.78 Amp
    • Dimensions:
      • 1-RU Rack Mount - 1.72” H x 18.93” W x 7” D (43.7mm x 480.1mm x 177.8mm)
      • Rack Ears Included

NOTE: Specifications and pricing are subject to change without prior notice or obligation.
