Nord ELECTRO-5D-SW73 Electro 5D 73 73-Key Synthesizer with Semi-Weighted Waterfall Keybed

OUR PART #: ELECTRO-5D-SW73 MFR #: AMS-NELECTRO5D-73

Copied to clipboard

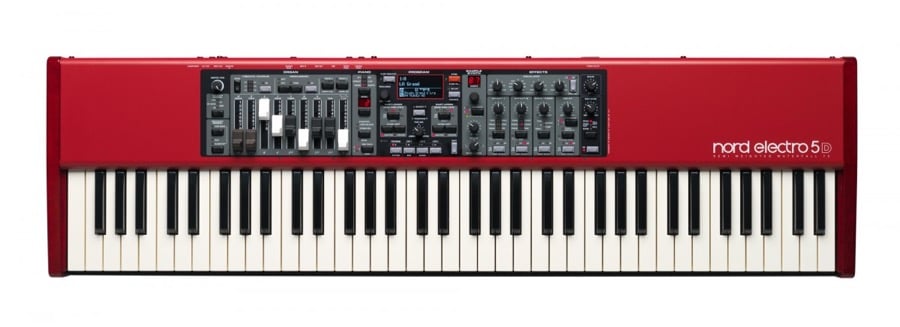

Nord ELECTRO-5D-SW73 Electro 5D 73 73-Key Synthesizer With Semi-Weighted Waterfall Keybed Image 1
rhxr6pESlTo?rel=0
1 Video
Nord ELECTRO-5D-SW73 Electro 5D 73 73-Key Synthesizer With Semi-Weighted Waterfall Keybed
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Since its introduction in 2001 the Nord Electro has been the natural choice for musicians in need of authentic emulations of classical electro mechanical and acoustic instruments in a portable and easy to use package.

With greatly expanded memory, the added ability to split and layer and a live focused program section, the Nord Electro 5 is a highly refined, focused yet flexible stage keyboard.

Nord Electro 5D 73 Includes:

  • User Manual
  • Power cord
  • Nord Piano and Sample Library DVDs.

Nord Electro 5D 73 Features:

  • General:
    • Splits and Layers – Piano/Organ, Piano/Sample, Sample/Organ
    • 1 GB memory for Nord Piano Library
    • 256 MB memory for Nord Sample Library
    • OLED Display for excellent overview and readability
    • 6 Split Points with LED indicators
    • Redesigned Program section with Set List feature
    • Organize Mode lets you rearrange programs and samples on the fly
    • E-E key range for 5D 73 and 5 HP
  • Piano Section:
    • Sympathetic String Resonance
  • Sample Synth:
    • Dedicated Sample Synth section with Attack, Decay/Release and dynamic controls
  • Organ:
    • Nord C2D B3 Tone Wheel simulation
    • Physical Drawbars
    • Principal Pipe Organ model
    • B3 Tone Wheel Bass
    • Leslie 122 simulation from Nord C2D
    • Mount for Half-Moon Switch for Rotary Speaker control
  • Effects:
    • All effects now in Stereo
    • Tube overdrive simulation
    • Vibe effect
    • Separate Reverb/Delay effects
    • Tremolo, Pan, Ring-Mod and Wah-wah can be controlled with Control Pedal

Nord Electro 5D 73 Specifications:

  • PIANO SECTION:
    • 1 GB memory dedicated to the Nord Piano Library
    • The Piano Section has 6 categories - Grand, Upright, EPiano 1 (tine), EPiano 2 (reed) Clavinet and Harpsichord.
    • Each category can contain several different models.
    • All pianos can be replaced using the Nord Sound Manager application
    • Advanced String Resonance-control (Gen 2)
    • Long Release
    • 4 Dynamic Curves
    • Stereo pianos and samples can be played back in mono
    • 40-60 Voices polyphony for Piano Library sounds.
  • Sample Synth Section:
    • 256 MB memory dedicated to the Nord Sample Library
    • All samples can be replaced using the Nord Sound Manager application
    • The Sample Synth section comes shipped with a selection of one hundred samples from the Nord Sample Library
    • Attack and Decay/Release control
    • Dynamics control (Filter/Velocity)
    • 15 Voice polyphony for Sample Library sounds.
  • ORGAN SECTION:
    • User adjustable percussion levels, percussion decays and key click level
    • Vibrato / Chorus Control with separate functionality for each model (the classic C1, C2, C3, V1, V2, V3 options for the B3, Vibrato for the Farfisa)
    • 4 Tonewheel modes: select the level of "vintage" desired
    • MIDI Split: By connecting an extra MIDI keyboard the Nord Electro 5 can be used as a dual manual (Lower/Upper) organ with different drawbar settings for each manual
    • Mount for Half-Moon Switch
    • 9 physical drawbars
  • EFFECTS SECTION:
    • All effects in Stereo
    • Effect 1:
      • Pan, Tremolo, Wah and Ring Modulator
      • Three selectable depths for the Pan and Tremolo, rate controlled with the Effect 1 Rate knob
      • Tremolo, Pan, Ring-Mod and Wah can be controlled with Control Pedal
    • Effect 2:
      • Phaser 1, Phaser 2, Flanger, Chorus 1, Chorus 2 and Vibe
      • Two selectable depths for each effect
    • Amp Simulations:
      • Comp/Amp - three amp/speaker simulations, compressor, C2D 122 rotary speaker, Tube Overdrive
      • Drive/Compression amount controlled with the Drive knob
      • Rotary speed controls - Slow, Fast and Stopped
      • Close or Normal microphone placement for 122 Rotary Speaker simulation
      • User adjustable rotary treble and bass rotor speeds and acceleration rates
      • Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation
    • Master Effects:
      • Dedicated Reverb with five algorithms - Room, Stage Soft, Stage, Hall Soft, Hall and Dry/Wet control
      • Dedicated Delay Effect - Rate, Amount, Tap-tempo and Stereo Ping Pong
    • CONNECTIONS:
      • 2 Audio outputs L & R - ¼", 6,35 mm jacks, unbalanced
      • 1 Monitor input - 1/8", 3,5 mm stereo jack
      • 1 Headphone output - ¼", 6,35 mm stereo jack
      • 1 Control pedal input - ¼", 6,35 mm TRS stereo jack, like Yamaha FC7, Roland EV-7, Roland EV-5, Korg EXP2 and Korg XVP10.
      • 1 Sustain pedal input - ¼", 6,35 mm jack. Use a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc.
      • 1 Rotary Speaker speed switch pedal input - ¼", 6,35 mm jack. Use a momentary pedal or a switch type pedal
      • MIDI In, MIDI Out - 5 pin DIN connectors
      • USB - type B connector - for transferring sounds and USB MIDI
      • IEC C14 power connector
    • Dimensions: 42" x 3.8" x 11.7" (1066 x 97 x 296 mm)
    • Weight: 20.28 lbs (9.2 kg)
