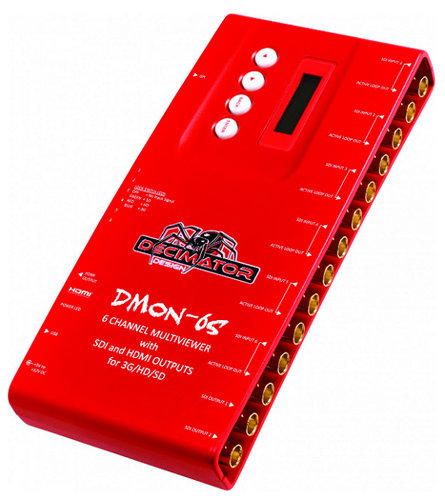

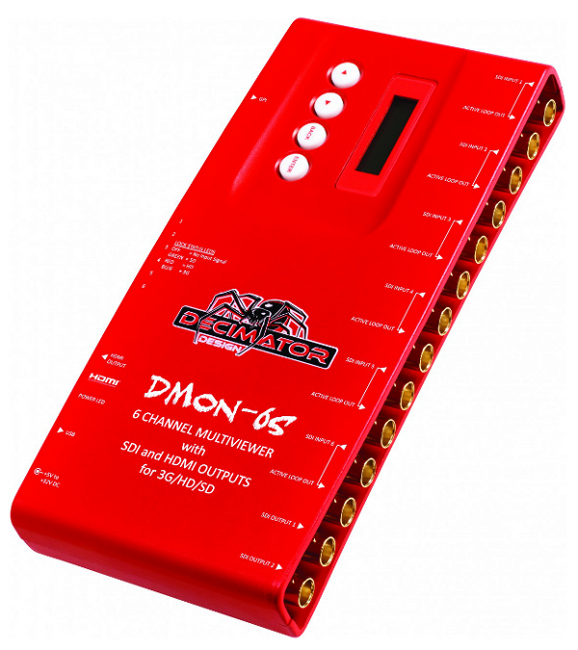

Decimator Design DMON-6S
6 Channel Multiviewer with SDI and HDMI Outputs for 3G/HD/SD

OUR PART #:  DEC-DMON-6S

The DMON-6S from Decimator is a 1 to 6 Channel MultiViewerwith SDI and HDMI outputs for 3G/HD/SD and custom layouts.
Learn More
Our Price: $595.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Decimator Design DMON-6S
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DMON-6S from Decimator is a 1 to 6 Channel MultiViewerwith SDI and HDMI outputs for 3G/HD/SD and custom layouts. The DMON-6S is a truly portable converter, that incorporates Decimator's new easy to use LCD and button control system. This gives you easy access to most of the features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.

Includes:

  • 32 GPI on 37-pin D-SUB connector for Dynamic Tallies and Remote Switching
  • RS422/485 on 37-pin D-SUB connector for Dynamic UMD and Tallies via TSL protocol
  • USB port for control and firmware updates
  • Heavy duty metal box
  • Metal Thread Locking DC Power Socket
  • Power Supply, HDMI Cable and USB Cable

Decimator DMON-6S Features:

  • Low cost miniature (3G/HD/SD)-SDI 1 to 6 channel Multi-Viewer or 6 to 1 input multiplexer
  • 6 x (3G/HD/SD)-SDI active loop copies of each input
  • Custom Layouts with various standard layouts
  • 16 Character UMD overlay per window with individual enables, custom positioning and size
  • 16 Channel Audio Metering overlay per window with individual enables, custom positioning and size
  • Safe Action and Safe Title overlay per window with individual enables and adjustment
  • Centre Cross overlay per window with individual enable
  • Audio ID overlay
  • Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border
  • Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)
  • Load and restore Custom Layouts
  • Fast switching between inputs using Full-Screen scaling
  • Selectable output format in both Full-Screen and Multi-Viewer mode
  • Low latency buffering for each input allowing non-synchronous inputs
  • Linked (3G/HD/SD)-SDI and HDMI outputs
  • 6 x (3G/HD/SD)-SDI inputs with auto detection (6 Formats supported in total)
  • Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
  • Variable aspect ratios per window
  • Pass-Through mode allowing any of the 6 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs

Decimator DMON-6S Specifications:

  • SDI Input & Output Formats:
    • 3G: SMPTE 424M @2.97 and 2.967Gb/s:
      • 1080p @60/59.94/50Hz
    • HD: SMPTE 292M/274M/296M @1.485 and 1.435Gb/s:
      • 1080i @60/59.94/50Hz
      • 1080p/psf @30/29.97/25/24/23.98Hz
      • 720p @60/59.94/50/30/29.97/25/24/23.98Hz
    • SD: SMPTE 259M@ 270Mb/s:
      • 625i50
      • 525i59.9
  • HDMI Output Formats:
    • 1080p @60/59.94/50Hz
    • 1080i @60/59.94/50Hz
    • 1080p @30/29.97/25/24/23.98Hz
    • 720p @60/59.94/50/30/29.97/25
    • 625i50 / 525i59.94
  • LED Status:
    • Power
    • 6 x Signal lock and rate
  • Power:
    • +5V to +32V DC
    • Positive Centre Pin
  • LCD / Button Menu Options:
    • HDMI output type
    • Output Select
    • Multi-Viewer Output Format
    • Multi-Viewer Number of Windows
    • Multi-Viewer Layout
    • Multi-Viewer Audio Source
    • Multi-Viewer Reference
    • Full Screen is Scaled
    • Input Routing
    • GPI mode
    • Setup
  • Inputs:
    • 6x (3G/HD/SD)-SDI
    • Input Equalization > 100M using Belden 1694A
    • USB for control and updates
  • Outputs:
    • 6 x SDI (3G/HD/SD)-SDI Active Loop-throughs
    • 2 x SDI (3G/HD/SD)-SDI
    • HDMI Type A
  • Dimensions:
    • 220mm x 103.7mm x 29.5mm / 8.7” x 4.1” x 1.2”
