Smart Kapp kapp 84

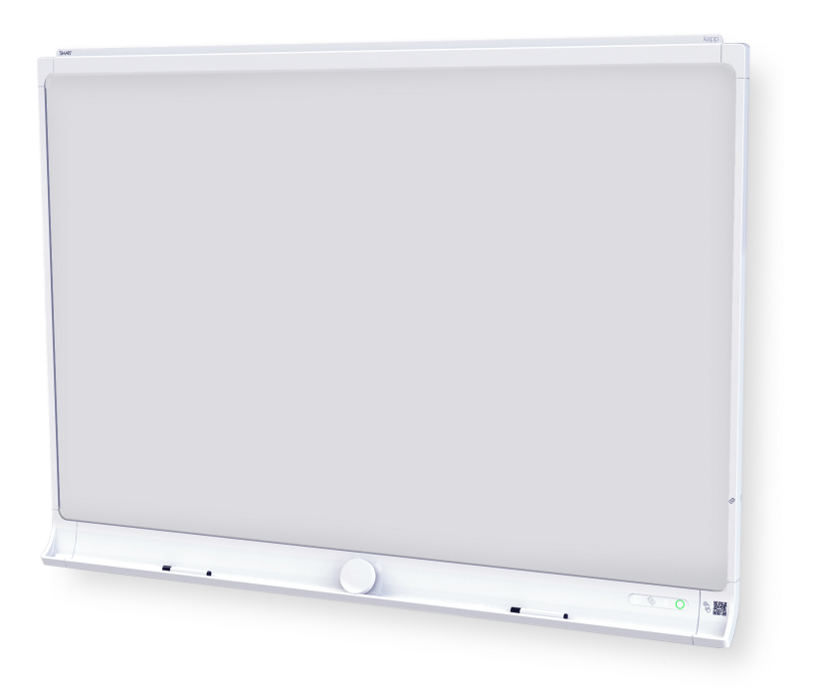

84" SMART kapp Capture Board

OUR PART #  KAPP84

Our Price: $1,199.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The new simple, secure, and stylish replacement for the traditional 4x6 dry-erase boards, the SMART kapp™ 84" capture board from SMART Technologies, enables you to collaborate with others in a simple but powerful way.

Write and draw on the capture board like you would a regular dry erase board. Then you can then connect a Bluetooth®-enabled mobile device to the capture board by scanning a Quick Response (QR) code or by tapping the Near Field Communication (NFC) tag. When you first connect your mobile device, if the SMART kapp app isn't onboard, you’re directed to the Apple App Store or Google Play™ to download it. After you download and install the app, you can use it to connect to your capture board and share content with others.

TheSMART kapp 84 is ideal for the following environments:

  • Large businesses
  • Lecture halls
  • Administration offices
  • Collaboration areas

SMART kapp 84 Includes:

  • SMART kapp 84" capture board
  • 4x Dry-erase markers
  • Eraser
  • French cleat wall mount

SMART kapp 84 Features:

  • Digital capture technology: DViT® (Digital VisionTouch) technology
  • Wireless technology: Bluetooth 2.1 + EDR*

NOTE: *Compatible with Bluetooth 3.0 and dual-mode Bluetooth 4.0

  • Capture options:
    • Establish a Bluetooth wireless connection with a supported mobile device (see below) by doing one of the following:
    • Scan the capture board’s unique QR code
    • Tap the capture board’s NFC tag (Android™ devices only)
    • Connect a USB drive
  • USB drive support:
    • USB 2.0 Type-A receptacle
    • Support for FAT-formatted USB drives only

SMART kapp 84 Specifications:

  • Surface: Painted laminate steel
  • Simultaneous users: 2
  • Dimensions:
    • Size:
      • 72" x 53” x 5 1/4"
      • 84" diagonal
    • Weight: 60 lbs (27.3 kg)

NOTE: All dimensions ± 1/8" (0.3 cm). All weights ± 2 lbs (0.9 kg).

  • Mobile device support:
    • Apple devices:
    • iOS 7.1 or later operating system software
    • 50 MB storage
    • iPhone 4S or later
    • Third generation iPad or later
    • First generation iPad mini or later
    • Fifth generation iPod touch or later
  • Android devices:
    • Android 4.1 (Jelly Bean) or later operating system
    • 50 MB of storage (internal or SD card)
    • Devices meeting the following specifications:
    • 1024 MB of RAM
    • 720p or better screen resolution
    • Bluetooth 2.1 + EDR
    • NFC (recommended)
  • 3 megapixel or better rear-facing camera (recommended)
  • Mobile devices:
    • Android devices: Chrome for Android 39.0.2171.93 or later
    • Apple devices: Safari for iOS 7.1 or later operating system software
  • Desktop:
    • Safari 8.0 or later
    • Chrome 39.0.2171.95 or later
    • Firefox 34.0.5 or later
    • Internet Explorer 10 or later
  • Mounting:
    • Options:
      • Includes French cleat wall mount
      • Standard VESA® 600 mm Ă— 800 mm mounting bracket compatible (not included)
      • Recommended height: 69" (175.3 cm) from the floor to the middle of the included mounting bracket
    • Bolt requirements for VESA mounting bracket:
      • Size : M6
      • Maximum length:  To avoid damage to the capture board, ensure the bolt is no longer than 1/2" (1.2 cm) plus the width of the washer  and the width of the bracket.
  • Power:
    • Power specifications: 5V, 3A
    • Power cable: 6' 6 3/4" (2 m) power cable
  • Storage and operating requirements:
    • Storage:
      • Temperature: -40–140°F (-40–60°C)
      • Humidity: 5–95% relative humidity, non-condensing
    • Operating:
      • Temperature: 41–95°F (5–35°C)
      • Humidity: 10–80% relative humidity, non-condensing
  • Certification and compliance:
    • Regulatory certification:  CE, ETL, C-Tick, FCC
  • Environmental compliance:
    • European Union: REACH, RoHS, WEEE and Packaging
    • U.S.: Packaging and Conflict Minerals
