Attero Tech unDX2IO
2 In / 2 Out Dante Audio Interface 2-Gang Wall Box


The Attero Tech unDX2IO Dante Audio Interface is a 2-in...
Learn More
Our Price: $591.00
List Price: $739.00
Call for Special Sale Price!
Write the first review.
Attero Tech unDX2IO
In Stock

Related Products

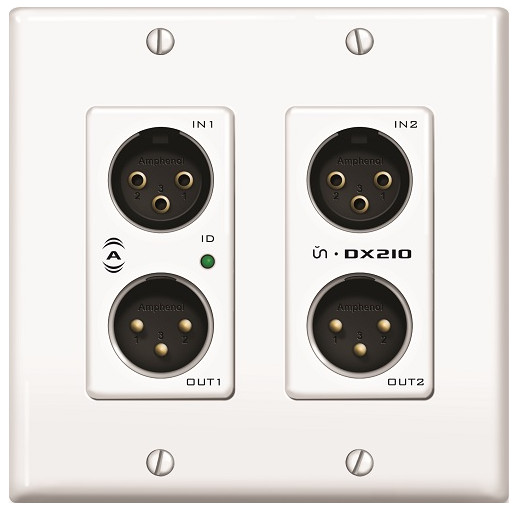

The Attero Tech unDX2IO Dante Audio Interface is a 2-in, 2-out IO wall box that lets you add up to two channels (in and out) of Dante audio to an existing Dante-based networked audio system. It features two balanced mic/line XLR inputs and two balanced XLR line outputs, as well as switchable mic/line gain and switchable phantom power on the inputs. All inputs and outputs can be used simultaneously and all audio channels are available separately. Audio flow assignment, input gain, and phantom power are all controllable via the Dante network connection. The unDX2IO is designed to fit into most dual-gang US junction boxes and is PoE-enabled, so all connectivity (power and data) is provided by a single Cat5 cable. The unDX2IO's size and IO density make it easy to put Dante connectivity wherever it's needed - near the audio source or sink - thereby eliminating costly and interference prone analog wiring.

Attero Tech unDX2IO Specifications:

  • Analog inputs:
    • Type: Balanced and RF filtered XLR
    • Impedence: >1.8K ohms at any gain setting
    • Phantom Power: +48V, software selectable
    • EIN (Mic mode): -115dBu (+40dB gain)
    • Maximum Input Levels:
      • +8dBu @ 0dB gain
      • -16dBu @ +25dB gain
      • -31dBu @ +40dB gain
  • Analog Outputs:
    • Type: Balanced line level with automatic muting on loss of Dante signal
    • Maximum Output Level: +12dBu
    • Output Noise: <-90dBu @ 0dB gain
  • Frequency Response: +/- 1dB, 20 Hz - 20 kHz
  • System THD: <.01% at any gain
  • PoE Class: Class 0 802.3af PoE PD compliant
  • Power consumption: Less than 3W
  • Dimensions: 2.75" H x 3.6" W x 1.88" D
  • Certifications:
    • FCC CFR 47 Parts 15B
    • ICES-003
    • CE (EN55022)
  • Operating Temperature: 0┬░ C - 40┬░ C

To be the first to review this item, click here.
