Shure PGASTUDIOKIT4
PG ALTA 4-Piece Studio Microphone Kit

OUR PART #  PGASTUDIOKIT4

Our Price: $299.00
List Price: $374.00
You save 20%! (Low Price Guarantee)
In Stock

The Shure PGASTUDIOKIT4 Microphone Kit is a versatile package of professional quality microphones, assembled to provide excellent sound for the recording and performance of amplified and acoustic instruments. The microphones selected for the PGASTUDIOKIT4 provide a wide variety of flexible solutions for most recording opportunities.

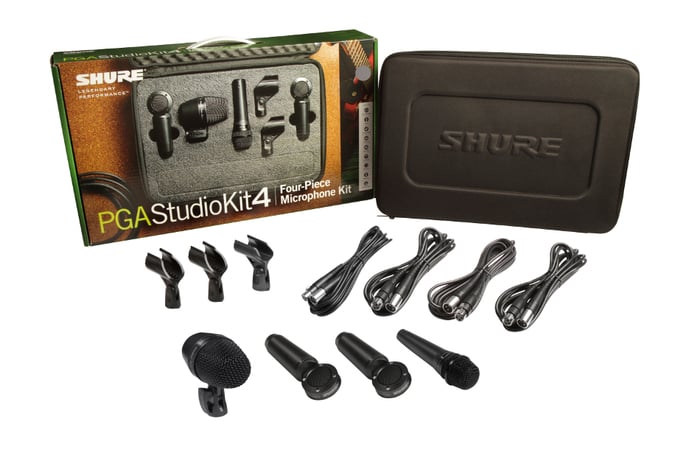

Shure PGASTUDIOKIT4 Includes:

  • One (1) PGA52 Cardioid Dynamic Kick Drum Microphone
  • One (1) PGA57 Cardioid Dynamic Instrument Microphone
  • Two (2) PGA181 Side-Address Cardioid CondenserMicrophones
  • One (1) A25D Break-resistant microphone clip
  • Two (2) WA371 Break-resistant microphone clips
  • Four (4) C15J 15 foot (4.6 m) XLR-XLR Cables
  • One (1) 95G16526 Zippered Carrying Case

Shure PGASTUDIOKIT4 Specifications:

  • PGA52 Kick Drum Microphone:
    • Type Dynamic (moving coil)
    • Frequency Response: 50 Hz - 12 kHz
    • Polar Pattern:  Cardioid
    • Output Impedance:  150 Ohms
    • Sensitivity at 1 kHz, open circuit voltage:  -55 dBV/Pa (1.75 mV)(1 Pa=94 dB SPL)
    • Polarity:  Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
    • Weight:  16.01 oz (454 g)
    • Connector:  Three-pin professional audio (XLR), male
    • Operating Temperature:  -20 to 165 °F (-29 to 74 °C)
    • Operating Humidity (Relative):  0 to 95%
  • PGA57 Instrument Microphone:
    • Type:  Dynamic (moving coil)
    • Frequency Response:  70 Hz - 15 kHz
    • Polar Pattern:  Cardioid
    • Output Impedance:  150 Ohms
    • Sensitivity at 1 kHz, open circuit voltage:  -56.5 dBV/Pa (1.5 mV)(1 Pa=94 dB SPL)
    • Polarity:  Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
    • Weight:  9.88 oz (280 g)
    • Connector:  Three-pin professional audio (XLR), male
    • Operating Temperature:  -20 to 165 °F (-29 to 74 °C)
    • Operating Humidity:  0 to 95%
  • PGA181 Side-Address Microphone:
    • Type:  Electret condenser
    • Frequency Response:  50 Hz - 20 kHz
    • Polar Pattern:  Cardioid
    • Output Impedance:  120 Ohms
    • Sensitivity at 1 kHz, open circuit voltage:  -38 dBV/Pa (12.7 mV)(1 Pa=94 dB SPL)
    • Maximum SPL, 1 kHz at 1% THD, 1 kOhm:  138dB SPL
    • Polarity:  Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
    • Weight:  13.5 oz (383 g)
    • Connector:  Three-pin professional audio (XLR), male
    • Housing:  Cast zinc
    • Power Requirements:  48 VDC phantom power (4 mA)

Shure PGASTUDIOKIT4
PG ALTA 4-Piece Studio Microphone Kit

OUR PART #  PGASTUDIOKIT4

Product Information:

The Shure PGASTUDIOKIT4 Microphone Kit is a versatile package of professional quality microphones, assembled to provide excellent sound for the recording and performance of amplified and acoustic instruments. The microphones selected for the PGASTUDIOKIT4 provide a wide variety of flexible solutions for most recording opportunities.

Shure PGASTUDIOKIT4 Includes:

  • One (1) PGA52 Cardioid Dynamic Kick Drum Microphone
  • One (1) PGA57 Cardioid Dynamic Instrument Microphone
  • Two (2) PGA181 Side-Address Cardioid CondenserMicrophones
  • One (1) A25D Break-resistant microphone clip
  • Two (2) WA371 Break-resistant microphone clips
  • Four (4) C15J 15 foot (4.6 m) XLR-XLR Cables
  • One (1) 95G16526 Zippered Carrying Case

Shure PGASTUDIOKIT4 Specifications:

  • PGA52 Kick Drum Microphone:
    • Type Dynamic (moving coil)
    • Frequency Response: 50 Hz - 12 kHz
    • Polar Pattern:  Cardioid
    • Output Impedance:  150 Ohms
    • Sensitivity at 1 kHz, open circuit voltage:  -55 dBV/Pa (1.75 mV)(1 Pa=94 dB SPL)
    • Polarity:  Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
    • Weight:  16.01 oz (454 g)
    • Connector:  Three-pin professional audio (XLR), male
    • Operating Temperature:  -20 to 165 °F (-29 to 74 °C)
    • Operating Humidity (Relative):  0 to 95%
  • PGA57 Instrument Microphone:
    • Type:  Dynamic (moving coil)
    • Frequency Response:  70 Hz - 15 kHz
    • Polar Pattern:  Cardioid
    • Output Impedance:  150 Ohms
    • Sensitivity at 1 kHz, open circuit voltage:  -56.5 dBV/Pa (1.5 mV)(1 Pa=94 dB SPL)
    • Polarity:  Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
    • Weight:  9.88 oz (280 g)
    • Connector:  Three-pin professional audio (XLR), male
    • Operating Temperature:  -20 to 165 °F (-29 to 74 °C)
    • Operating Humidity:  0 to 95%
  • PGA181 Side-Address Microphone:
    • Type:  Electret condenser
    • Frequency Response:  50 Hz - 20 kHz
    • Polar Pattern:  Cardioid
    • Output Impedance:  120 Ohms
    • Sensitivity at 1 kHz, open circuit voltage:  -38 dBV/Pa (12.7 mV)(1 Pa=94 dB SPL)
    • Maximum SPL, 1 kHz at 1% THD, 1 kOhm:  138dB SPL
    • Polarity:  Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
    • Weight:  13.5 oz (383 g)
    • Connector:  Three-pin professional audio (XLR), male
    • Housing:  Cast zinc
    • Power Requirements:  48 VDC phantom power (4 mA)
