Kramer RC-76R 6-Button Room Controller

OUR PART #: RC76R MFR #: 30-80111090

Copied to clipboard

The Kramer RC-76R is a six-button configurable room controller for multimedia rooms. ...Read more

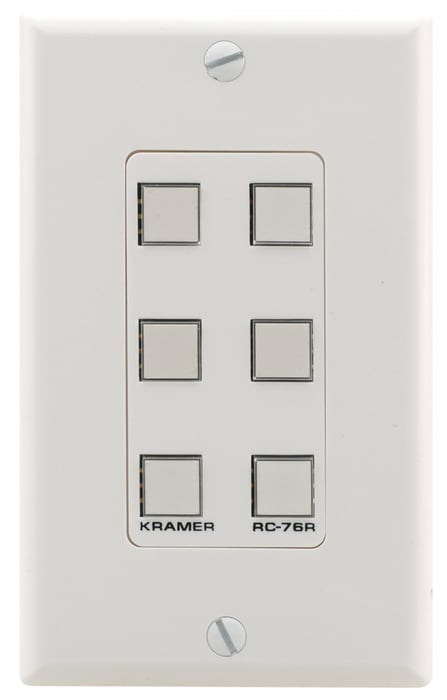

Kramer RC-76R 6-Button Room Controller Image 1

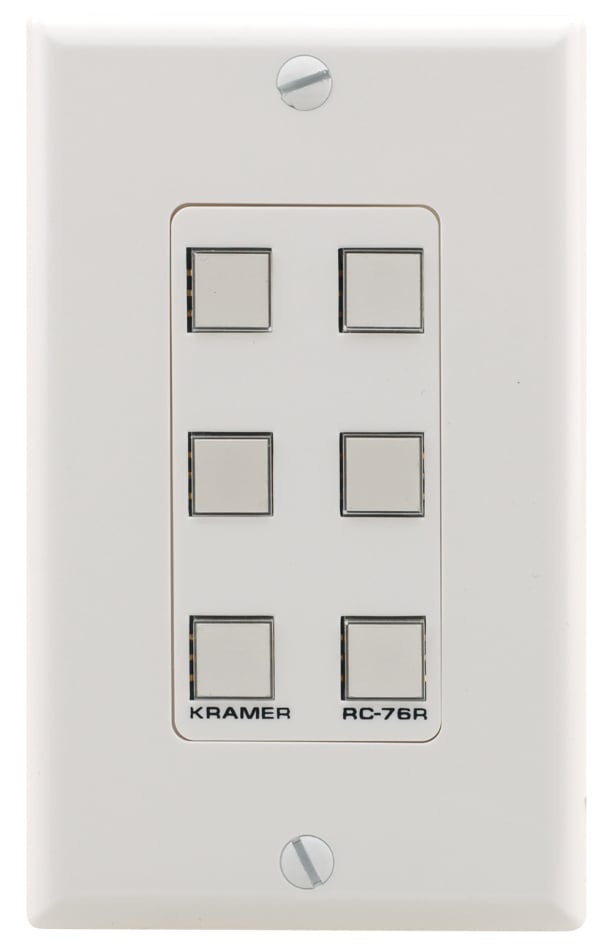

Kramer RC-76R 6-Button Room Controller Image 2
Kramer RC-76R 6-Button Room Controller
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Kramer RC-76R is a six-button configurable room controller for multimedia rooms. It controls audio components, video components and other room facilities such as lights and screens.

Requires K-Config Software 2.0

Applications

  • Classrooms
  • Boardrooms
  • Auditoriums

Includes

  • Power supply
  • Black and white front plates
  • Black and white Decora frames

Features

  • 6 Configurable Buttons: RGB backlit, front panel buttons, configured using the K-Config configuration software
  • 1 GPI/O Port: Can be configured by K-Config as a digital input, digital output or analog input for interfacing with a variety of devices such as sensors, switches, LEDs, or relays
  • 2 Bidirectional RS-232 Ports: Control AV equipment such as projectors, LCD and PDP displays, power amplifiers, switchers, and scalers
  • 2 Relay Contact Closure Ports: Control other room items related to the AV system, such as, raising and lowering drapes, a screen or a projector
  • 2 IR Control Ports: With an IR learning receiver behind the front plate that learns commands from any IR remote
  • 1 RS-485 Port
  • Kramer Site-CTRL Compatibility: For network remote control and management over the Ethernet port
  • K-NET™ Control Channel: Connects compatible user interfaces, supply power and control data over a single cable
  • Flexible Control: Via Ethernet and K-NET
  • Note: Decora compatible. Suitable for installation in TBUS-1Axl

Specifications

  • Inputs:
    • 2 RS-232
    • 1 RS-485
    • 1 GPI/O and 1 K-NET on terminal block connectors
    • 1 Ethernet on an RJ-45 connector
    • 1 USB for programming
  • Outputs:
    • 2 IR
    • 2 relays (36V AC or DC, 2A, 60VAC maximum on non-inductive load) and 1 GPI/O on terminal block connectors
  • Default IP Settings:
    • IP number: 192.168.1.39
    • Mask: 255.255.0.0
    • Gateway: 0.0.0.0
  • Power Consumption: 12V DC, 260mA
  • Operating Temperature: 32° to 104°F (0° to +40°C)
  • Storage Temperature: -40° to 158°F (-40° to +70°C)
  • Humidity: 10% to 90%, RHL non-condensing
  • Dimensions (WxDxH-with wall plate): 3.1" x 1.1” x4.9" (7.9cm x 2.8cm x 12.4cm)
  • Weight: Approx. 1.4 lbs. (0.6 kg)
