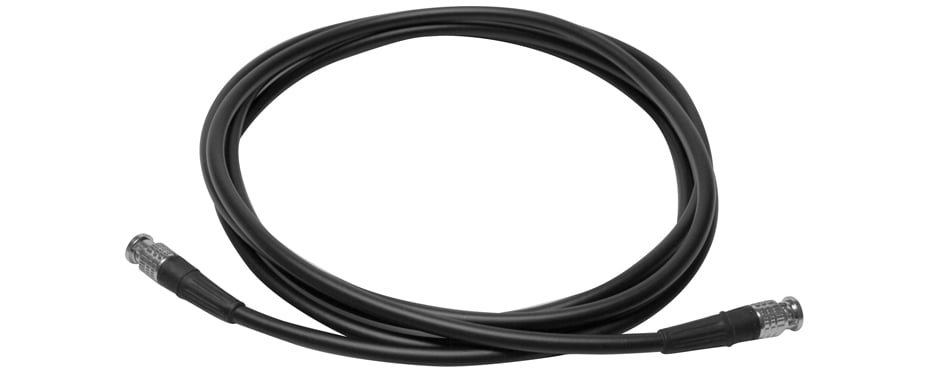

Canare HDSDI-250
250 ft HD-SDI Cable with L-5CFW Cable and BCP-B51F Connectors


This Canare HD-SDI cable is made from L-5CFW 75 Ohm flexible digital video coaxial cable and BCP-B51F 75 Ohm crimp plugs.
Learn More
Our Price: $239.70
List Price: $271.66
You save 12%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Canare HDSDI-250
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

This Canare HD-SDI cable is made from L-5CFW 75 Ohm flexible digital video coaxial cable and BCP-B51F 75 Ohm crimp plugs.

Canare HDSDI-250 Features:

  • L-5CFW 75 Ohm Flexible Digital Video Coaxial Cable Features:
    • Solid Copper Center Conductor
    • Foam PE Dielectric
    • Dual Copper Braid for Flexibility
    • Precision Coax 100% Sweep Tested
  • BCP-B51F 75 Ohm Crimp Plug Features:
    • True 75 ohm construction Crimp Pin & Sleeve
    • High performance of 1.1 or less VSWR up to 3GHz.
    • Elongated Body for better finger grip
    • Position mark on body allows the connector fit to be checked easily.
    • Superior cable pull strength
    • Gold-plated center pins 'snap' into place
    • Connector Body has been die-cast, achieving a lower price with higher performance
    • Easy Assembly using Canare Strip & Crimp Tools

Canare HDSDI-250 Specifications:

  • L-5CFW Cable Mechanical Specifications:
    • Nominal O.D.: 0.303" (7.7 mm)
    • Conductor Material: Bare Copper
    • #18 AWG
    • Conductor O.D.: 0.041" (1.05 mm)
    • Dielectric Insulation Type*: Foam PE
      *Dielectric Strength = 1000V AC/1 min.
    • Insulation O.D.: 0.193" (4.9 mm
    • Shield Material Coverage (mm/ends/carriers):
      • 0.12TA/7/24 (93% or more)
      • 0.12TA/9/24 (96% or more)
  • BCP-B51F Specifications:
    • Return Loss (0-3GHz): 26dB or greater
    • Pull Strength: 245N for L-4.5CHD, 1694A
    • Coupling Sleeve: Zinc Alloy Die Casting
    • Center Pin: Gold Plating
    • Weight: approx. 12.5g
