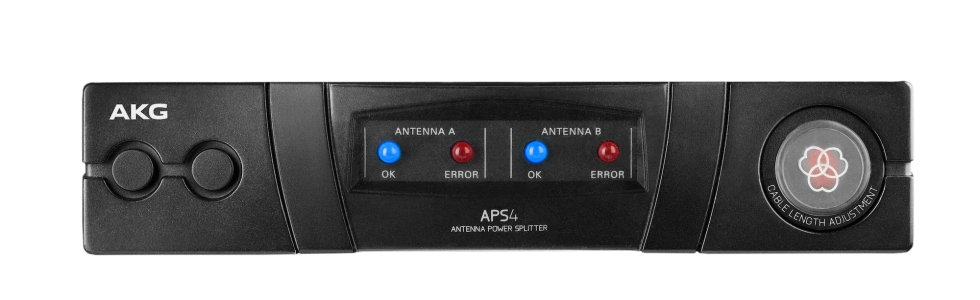

AKG APS4/US
Wide-Band UHF Active Antenna and Power Splitter

OUR PART #:  APS4/US

Our Price: $629.00
List Price: $789.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

AKG APS4/US
Qty:
In Stock

Similar Products

The AKG APS4 is a wide-band UHF active Antenna and Power Splitter that can feed up to 4 receivers with the RF signal coming from one pair of antennas and also supplies power to all connected receivers via BNC cables. The splitter operates in an extended frequency range of 470 to 952 MHz. Adjustable RF-level attenuation settings guarantee maximum operating distance even when using different cable lengths and different types of cables. The APS4 comes in a rugged half-rack metal housing and works with all active and passive AKG antennas available on the market (RA4000 B/W, RA4000 W, SRA2 B/W and SRA2 W). The product is shipped with a rack mount kit (RMU4000), two front mount antenna cables and ten BNC cables (MKPS) for an immediate system setup.

Two rear panel antenna inputs provide a 12 VDC supply voltage for powering up to three active elements per antenna path. E.g. one active antenna (RA4000 B/W or SRA2 B/W) and two AB4000 antenna boosters connected to one RF input. Also located on the rear panel are two sets of four BNC antenna output connectors for feeding up to four diversity receivers and two additional antenna outputs for cascading up to three further APS4 devices.

AKG APS4/US Features:

  • Operates in an extended frequency range from 470 to 952 MHz for maximum flexibility
  • Cable length adjustment switch for optimizing antenna signal levels
  • Link output to cascade up to three APS4 for larger systems
  • Remote power for antennas and receivers to eliminate any extra installation effort
  • All in one box - rack mount kit and cables included
  • Includes US power supply

AKG APS4/US Specifications:

  • Switching bandwidth (from/to): 470 to 952 MHz
  • Operating temperature range: -10 to 50 Celsius
  • Body: Metal
  • Finish: Black
  • Dimensions: 190 mm L x 44 mm H x 200 mm W
  • Net Weight: 1062 g
