SoundTube SM1001p
10" 200W Powered Surface-Mount Subwoofer in White


Call for price! Not available online.

The SoundTube SM1001p powered subwoofer is eqipped with one 10" active woofer and one 10" passive radiator, incorporating a 200 Watt Class 'D' amplifier. The SM1001p features polypropylene woofers with butyl rubber surrounds mated to steel baskets, a solid cabinet with a textured paint finish, and a powder-coated steel grille for lasting durability. This speaker boasts high output and maximum efficiency with an accentuated 70 Hz peak to maximize the listener’s low frequency experience. Inputs include a balanced XLR and 70.7 Volt high-level binding post input. More versatile with 70.7v high level input for adding powered bass in distributed systems. Full-range balanced XLR output with selectable 50 Hz to 200 Hz high-pass filters with full range LFE position. 0°/180° phase switch. Includes Safety cable and forged eyebolt.

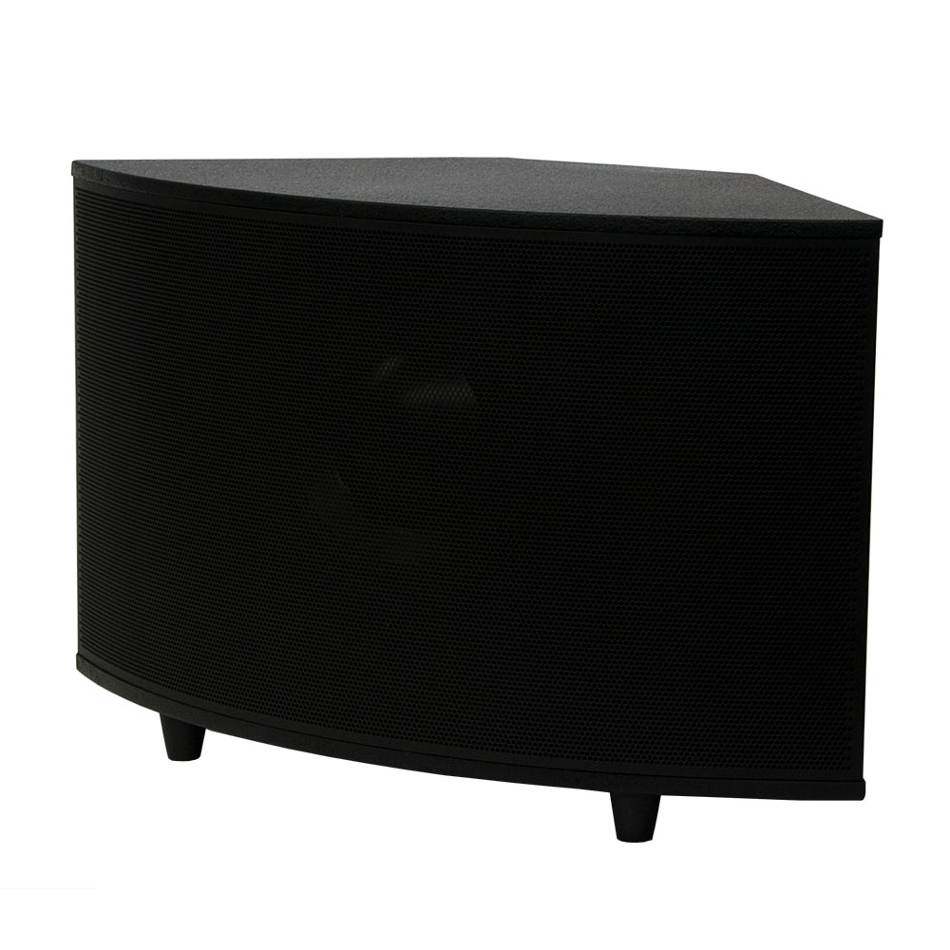

NOTE:   Image shown above is for illustrative purposes only; actual product will come White in color. For more information on this and other products, contact your Sales Representative.

SoundTube SM1001p Specifications:

  • Frequency Response (-3dB):  55 Hz – 118 Hz
  • Low Frequency (-10dB):  41 Hz – 224 Hz
  • Sensitivity:  92dB
  • Power Capacity RMS:  200 W
  • Max SPL dB @ 1 M:  111.0dB
  • Nominal Impedance:  N/A (powered)
  • Woofer  One active 10" (254 mm) polypropylenecone, one 10” passive radiator
  • Height:  14.0" (355.6 mm)
  • Width:  24.6" (624.6 mm)
  • Depth:  14.4" (364.7 mm)
  • Weight:  27 lbs (12.3 kg)
  • Optional Accessories:  Surface mount bracket (AC-SM1001p-S), corner mount bracket (AC-SM1001p-C)
  • Color:  White
