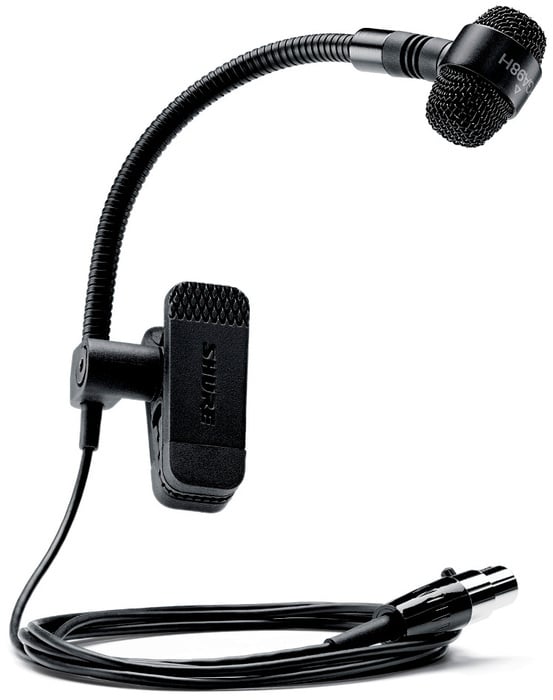

Shure PGA98H-TQG
PG ALTA Clip-On Cardioid Condenser Gooseneck Instrument Microphone with TA4F Connector, without Preamp

OUR PART #:  PGA98H-TQG

The Shure PGA98H-TQG PG ALTA Clip-On Cardioid Condenser Gooseneck Instrument Microphone is a professional quality microphone optimized for wind instruments...
Learn More
Our Price: $99.00
List Price: $124.00
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Shure PGA98H-TQG
Qty:
In Stock

Similar Products

The Shure PGA98H-TQG PG ALTA Clip-On Cardioid Condenser Gooseneck Instrument Microphone is a professional quality microphone optimized for wind instruments, including woodwinds and brass. Featuring a flexible, discrete gooseneck design with highly durable construction, horn clamp, and TA4F connector for use with wireless systems, the PGA98H is ideal for both live performance and recording.

Shure PGA98H-TQG Features:

  • Tailored microphone cartridge design for clear reproduction of wind instrument sound sources.
  • Flexible gooseneck design makes accurate positioning quick and easy
  • Integrated horn clamp for quick and easy mounting
  • Cardioid polar pattern picks up audio from the source while rejecting unwanted noise
  • Updated industrial design with black metallic finish and grille for unobtrusive visual presence
  • TA4F connector for use with wireless bodypack systems
  • No preamplifier is provided
  • Zipper pouch included for additional protection during storage or transport

Shure PGA98H-TQG Specifications:

  • Type:  Electret condenser
  • Frequency Response:  60 Hz - 20 kHz
  • Polar Pattern:  Cardioid
  • Output Impedance:  850 Ohms
  • Sensitivity at 1 kHz, open circuit voltage:  -52dBV/Pa (2.51 mV) (1 Pa= 94dB SPL)
  • Maximum SPL (1 kHz at 1% THD, 1 kOhm):  130dB SPL
  • Self-Noise (A-weighted, typical):  27dB SPL-A
  • Polarity:  Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
  • Weight:  8 oz (210 g)
  • Connector:  4-pin female TA4F miniature XLR connector
  • Housing:  Cast Zinc
  • Power Requirements:  11–52 VDC phantom power (2 mA)
