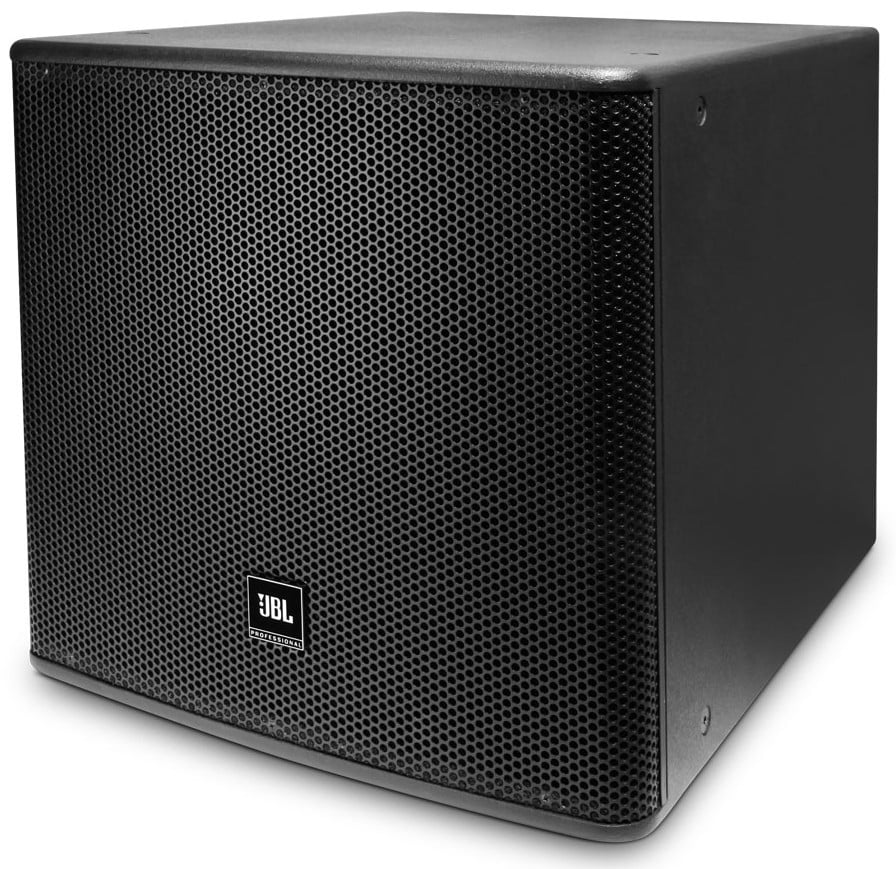

JBL AC118S
18" Subwoofer in Black with 3" Voice Coil

OUR PART #:  AC118S-BLACK

The JBL AC118S is a high power subwoofer system comprised of one 457.2 mm (18") low frequency driver in a vented, front-loaded configuration for extended bandwidth.
Learn More
Our Price: $1,140.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL AC118S
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The JBL AC118S is a high power subwoofer system comprised of one 457.2 mm (18") low frequency driver in a vented, front-loaded configuration for extended bandwidth. The rectangular cabinet is fitted with M10 threaded suspension points for ultimate flexibility. As a part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, AC118S provides a natural low-frequency sound quality.

JBL AC118S 18" Subwoofer Features:

  • High power and long excursion driver for lower frequency reproduction.
  • High sensitivity with lower power compression
  • Large port for high output and low-frequency reinforcement
  • Multiple Attachment Points for Ultimate Flexibility
  • Robust 15 mm multiply hardwood with textured black finish

JBL AC118S 18" Subwoofer Specifications:

  • Frequency Range (-10 dB): 32 Hz - 150 Hz
  • Frequency Response (┬▒3 dB): 40 Hz - 250 Hz
  • System Sensitivity (1w @ 1m): 95 dB
  • Nominal Impedance: 8 ohms
  • Maximum SPL(1m): 122 dB (128 dB peak)
  • Power Rating:
  • Continuous: 450W
  • Program: 900W
  • Peak: 1800W
  • Low frequency driver: 1x 18" woofer (P/N: 5021800), 457.2 mm (18") driver with 75 mm (3") voice-coil
  • Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals
  • Enclosure Material: 15 mm multi-ply hardwood plywood
  • Grille: Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
  • Finish: Textured black paint finish.
  • Suspension / Mounting: 12x M10 threaded suspension points
  • Dimensions: 22" H x 28.3" W x 21.5" D (561 x 720 x 548 mm)
  • Net Weight: 71.2 lbs (32.3 kg)
