12" Two-Way Full-Range Loudspeaker in Black with 90°x90° Coverage


Our Price: $1,020.00
Write the first review.
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

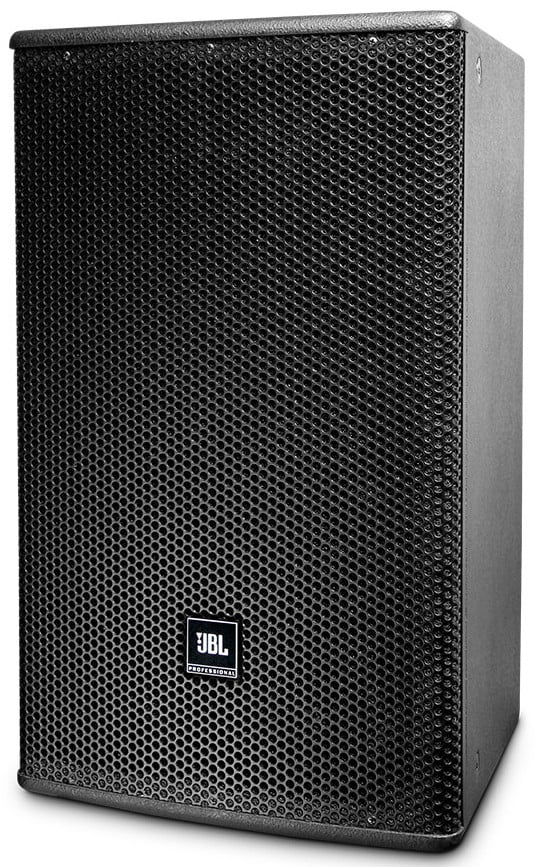

The JBL AC299 is a compact 2-way full-range loudspeaker system comprised of one 304.8 mm (12") low frequency driver and one 25 mm (1") exit/38 mm (1.5") voice-coil compression driver. The horn provides 90° by 90° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled off-axis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC299 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications

JBL AC299 12" Two-Way Full-Range Loudspeaker Features:

  • 15mm enclosure with black textured finish
  • 304.8 mm (12") LF transducer
  • 90° x 90° Waveguide with a 25 mm (1") exit 38mm (1.5") diaphragm compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple attachment points for ultimate flexibility

JBL AC299 12" Two-Way Full-Range Loudspeaker Specifications:

  • Frequency Range (-10 dB): 63 Hz - 20 kHz
  • Frequency Response (±3 dB): 80 Hz - 18 kHz
  • System Sensitivity (1w @ 1m): 97 dB
  • Nominal Impedance: 8 ohms
  • Maximum SPL (1m): 121 dB (127 dB peak)
  • Power Rating:
    • Continuous: 250W
    • Program: 500W
    • Peak: 1000 W
  • Coverage Pattern: 90° x 90° (H x V)
  • Crossover: 1.5 kHz
  • Low Frequency Driver: 1x 12" woofer (P/N: 5050730), 304.8 mm (12") driver with 38 mm (1.5") voice-coil
  • High Frequency Driver: 1x 2408H-2 driver with 25 mm (1") exit/38 mm (1.5") voice-coil
  • Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals
  • Enclosure: 15 mm multi-ply hardwood plywood
  • Grille: Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
  • Finish: Textured black paint finish.
  • Suspension / Mounting: 14x M10 and 4x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
  • Dimensions: 14.5" H x 15.4" W x 23.6" D (370 x 392 x 600 mm)
  • Net Weight: 38.1 lbs (17.3 kg)
JBL MTU266-99  U-Bracket for AC266 and AC299, Black
JBL MTU266-99 U-Bracket for AC266 and AC299, Black
JBL's MTU266-99 is an optional black U-bracket for the AC266 and AC299 AE Expansion Series loudspeakers.
