12" Two-Way Full-Range Loudspeaker in White with 60°x60° Coverage


Our Price: $1,020.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The JBL AC266 is a compact 2-way full-range loudspeaker system comprised of one 304.8 mm (12") low frequency driver and one 25 mm (1") exit/38 mm (1.5") voice-coil compression driver. The horn provides 60° by 60° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled off-axis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC266 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

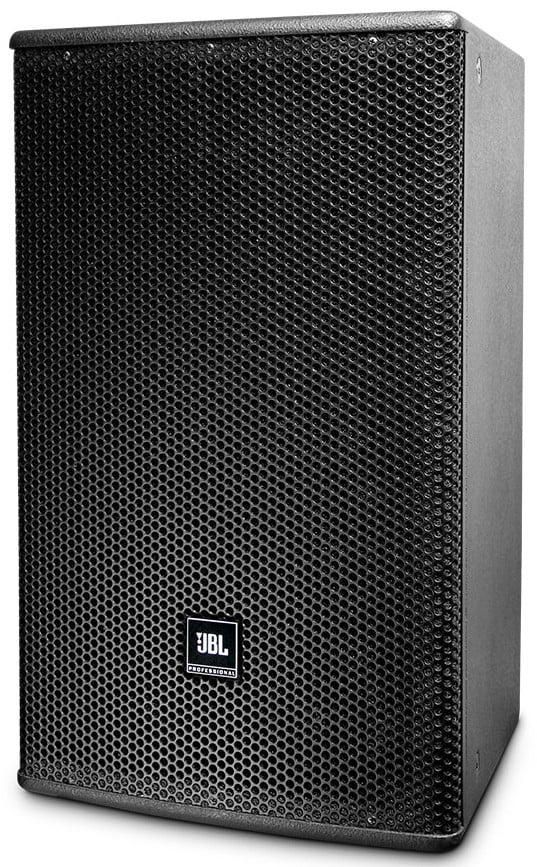

NOTE: Shown above in black, comes in white.

JBL AC266 12" Two-Way Full-Range Loudspeaker Features:

  • 15mm enclosure with white textured finish
  • 304.8 mm (12") LF transducer
  • 60° x 60° Waveguide with a 25 mm (1") exit 38mm (1.5") diaphragm compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple attachment points for ultimate flexibility

JBL AC266 12" Two-Way Full-Range Loudspeaker Specifications:

  • Frequency Range (-10 dB): 63 Hz - 20 kHz
  • Frequency Response (±3 dB): 80 Hz - 18 kHz
  • System Sensitivity (1w @ 1m): 97 dB
  • Nominal Impedance: 8 ohms
  • Maximum SPL (1m): 121 dB (127 dB peak)
  • Power Rating:
    • Continuous: 250W
    • Program: 500W
    • Peak: 1000 W
  • Coverage Pattern: 60° x 60° (H x V)
  • Crossover: 1.5 kHz
  • Low Frequency Driver: 1x 12" woofer (P/N: 5050730), 304.8 mm (12") driver with 38 mm (1.5") voice-coil
  • High Frequency Driver: 1x 2408H-2 driver with 25 mm (1") exit/38 mm (1.5") voice-coil
  • Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals
  • Enclosure: 15 mm multi-ply hardwood plywood
  • Grille: Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
  • Finish: Textured white paint finish.
  • Suspension / Mounting: 14x M10 and 4x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
  • Dimensions: 14.5" H x 15.4" W x 23.6" D (370 x 392 x 600 mm)
  • Net Weight: 38.1 lbs (17.3 kg)
U-Bracket for AC266 and AC299, White
JBL MTU266-99 U-Bracket for AC266 and AC299, White
JBL's MTU266-99 is an optional white U-bracket for the AC266 and AC299 AE Expansion Series loudspeakers.
