ToteVision LED1562HDL
HD 1.6" LED Screen Flush Mount Monitor Kit

OUR PART #  LED1562HDL

Our Price: $626.00
List Price: $834.00
You save 25%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

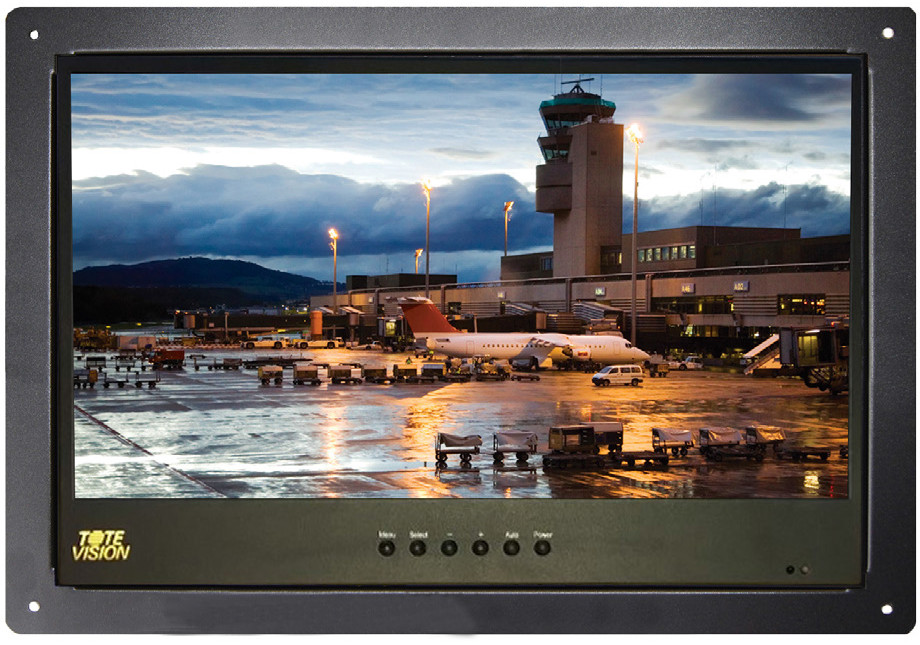

The ToteVision LED-1562HDL 15.6” flush mount, LED-backlit LCD monitor with HDMI, RS-232, USB, and VGA inputs. This model is ideal for any small screen, high quality video installations.

ToteVision LED-1562HDL Features and Benefits:

  • Displays native Full HD signals (1080i/p) with no downscaling
  • Widescreen (16:9) native aspect ratio
  • LED backlight – brighter picture using less power
  • Built-in removable desk stand
  • Built-in speakers

ToteVision LED-1562HDL Specifications:

  • Mount:  Flush Mount
  • Resolution:  1920 (H) x 1080 (V) (Full HD)
  • Native Aspect Ratio:  16:9
  • Visible Screen Size:  13.6” x 7.6” (344.16mm x 193.59mm)
  • Back Light:  LED (30K)
  • HD Compatible:  Yes
  • Anti-Glare Coating:  Yes
  • Brightness:  300 cd/mΒ² (Nit)
  • Contrast:  600:1
  • Dot Pitch:  0.17925(H) x 0.17925(V)mm
  • Color Depth:  6-bit, 262K
  • Response Time:  8ms (Rising/Falling)
  • Viewing Angle:  70/70/60/60 degrees
  • DSP / 3D Comb Filter:  Yes
  • PC Compatible:  Yes
  • Audio Power / Speakers:  8 Ohm, 2 Speakers x 5 Watts
  • HDMI:  x1 Input
  • Composite:  x1 RCA Input
  • VGA:  x1 Input
  • Audio:  x1 RCA L/R Input / x1 3.5mm PC Input
  • Power:  x1 2.1mm DC Input
  • Remote Control:  Yes; Infrared
  • RS-232:  x1 Input
  • Operating Temp  32 ~ 104Β°F (0 ~ 40Β°C)
  • Humidity:  10% ~ 90%
  • Power Requirements:  Regulated 12VDC; 3A; Negative Ground
  • Power Consumption:  8 Watts (Max)
  • Dimension with Deskstand:  16.2” x 11.7” x 1.85” (412mm x 297mm x 47mm
  • Dimensions:  14” x 5.3” x 1.85” (356.3mm x 133.5mm x 47mm)
  • Product Weight:  Net: 5.9 lbs. (2.7 kg)
  • Case:  Durable Metal

Product specifications are subject to change.
