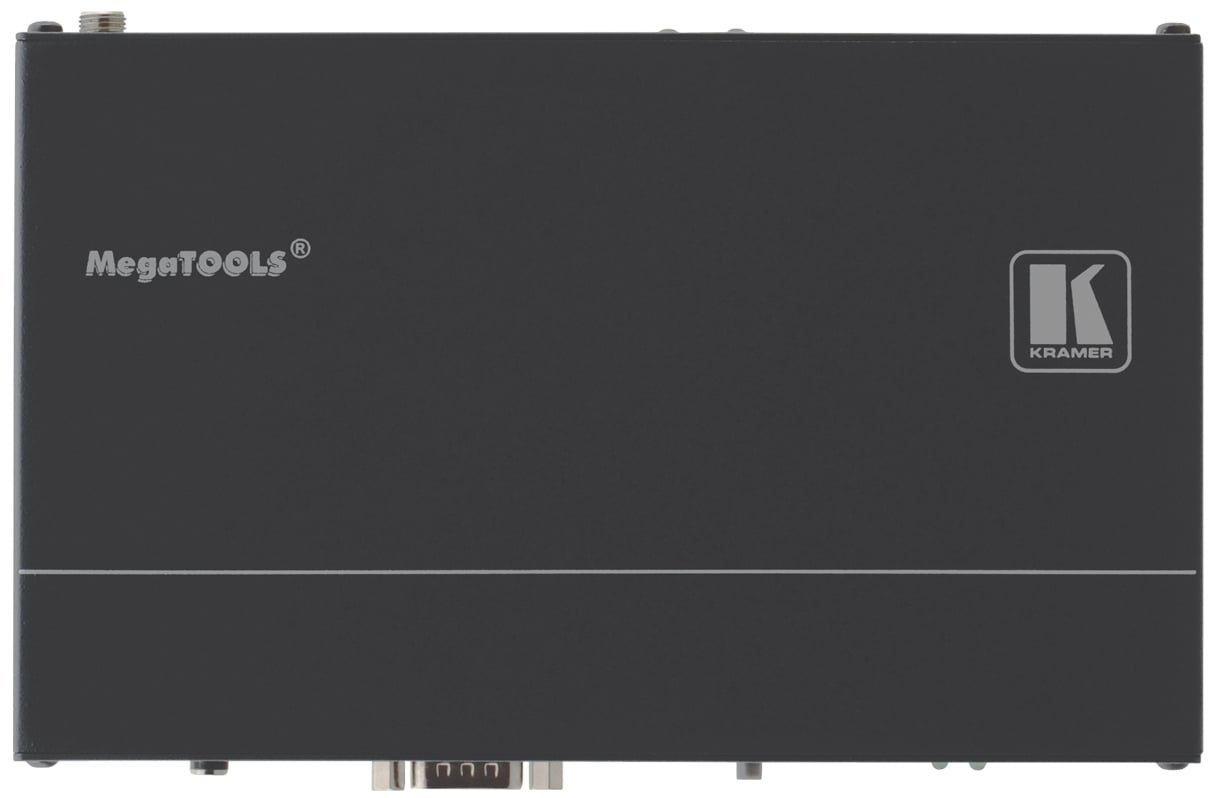

Kramer VA-1USB-T
USB Twisted Pair Transmitter with Power Supply

OUR PART #:  VA-1USB-T

The Kramer VA-1USB-T is a high-performance, twisted pair transmitter for communicating USB, bidirectional RS-232 data and IR signals over extended distances using CAT 5/6 cable.
Learn More
Our Price: $316.00
List Price: $395.00
You save 20%!
Write the first review.
Kramer VA-1USB-T
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The Kramer VA-1USB-T is a high-performance, twisted pair transmitter for communicating USB, bidirectional RS-232 data and IR signals over extended distances using CAT 5/6 cable. The unit encodes USB signals and RS-232 data into a TP signal that it transmits to the VA-1USB-R.

Kramer VA-1USB-T Features:

  • True Plug and Play Operation - No drivers
  • High-Speed USB - Supports USB 2.0 and 1.1
  • RS-232 Data Transmission - Full duplex, bidirectional
  • Range - Up to 330ft (100m)
  • Size - Compact MegaTOOLS® - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B rack adapter

Kramer VA-1USB-T Specifications:

  • Inputs: 1 USB host on a USB B-type connector, 1 bidirectional RS-232 on a 9-pin D-sub connector
  • Outputs: 1 twisted pair on an RJ-45 connector, 1 IR on a 3.5mm mini jack
  • USB Support: 1.1 and 2.0 (bulk mode, not isochronous)
  • Baud Rate: Up to 115.2kbps, full duplex
  • Power Consumption: 5V DC, 450mA
  • Transmission Range: Up to 328 ft (100m)
  • Operating Temperature: 32° to 104°F (0° to +40°C)
  • Storage Temperature: -40° to 158°F (-40° to +70°C)
  • Humidity: 10% to 90%, RHL non-condensing.
  • Diomensions (WxDxH): 8.3" x 4.53" x 1.13" (21.1 x 11.5 x 2.9 cm)
  • Approximate Weight: 0.97 lb (0.44 kg)
