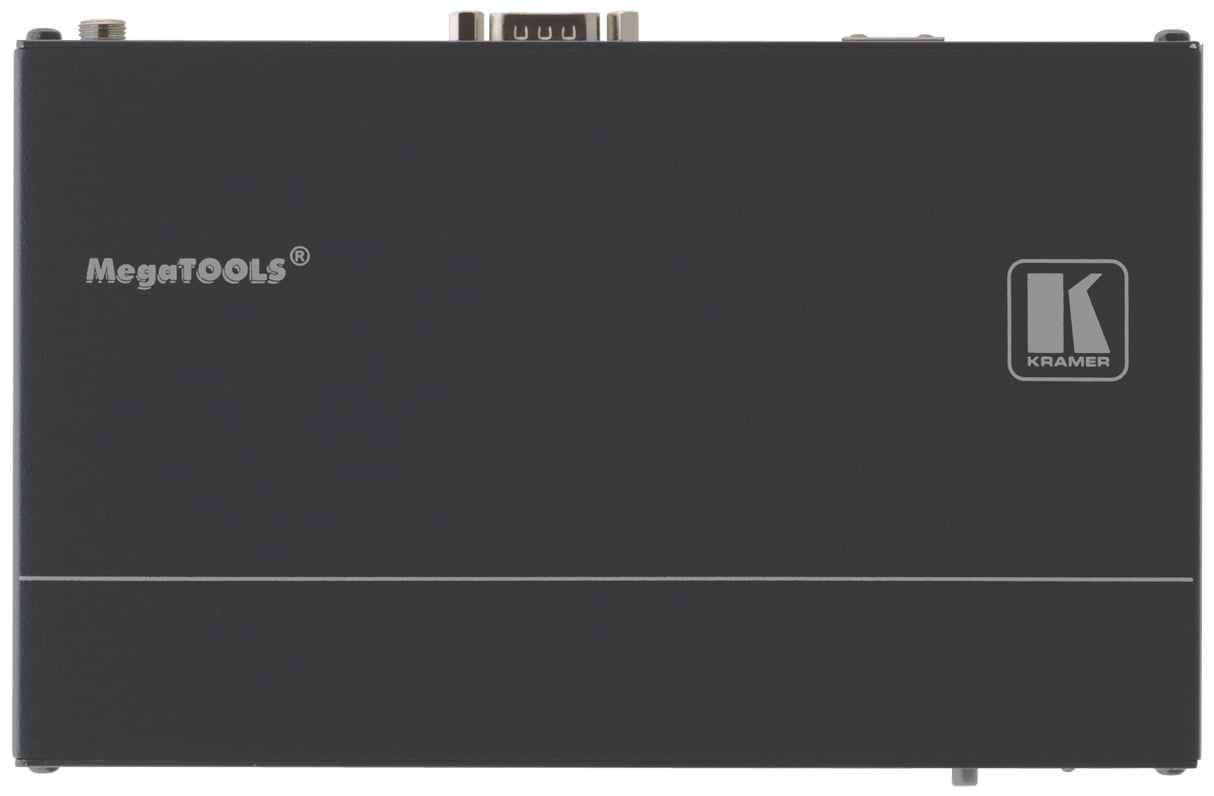

Kramer VA-1USB-R
USB Twisted Pair Receiver with Power Supply

OUR PART #:  VA-1USB-R

The Kramer VA-1USB-R USB Twisted Pair Receiver is a high-performance, twisted pair receiver for communicating USB...
Learn More
Our Price: $316.00
List Price: $395.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VA-1USB-R
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Kramer VA-1USB-R USB Twisted Pair Receiver is a high-performance, twisted pair receiver for communicating USB, bidirectional RS-232 data and IR signals over extended distances using CAT 5/6 cable. The unit receives a twisted pair signal from the VA-1USB-T and converts it back to USB signals and RS-232 data.

Kramer VA-1USB-R Features:

  • True Plug and Play Operation - No drivers.
  • High-Speed USB - Supports USB 2.0 and 1.1.
  • 4-Port USB Hub.
  • RS-232 Data Transmission - Full duplex, bidirectional.
  • Range - Up to 100m (330ft).
  • Size - Compact MegaTOOLS® - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B rack adapter.

Kramer VA-1USB-R Specifications:

  • Inputs: 1 twisted pair on an RJ-45 connector, 1 IR on a 3.5mm mini jack
  • Outputs: 4 USB on USB A-type connectors, 1 bidirectional RS-232 on a 9-pin D-sub connector
  • USB Support: 1.1 and 2.0 (bulk mode, not isochronous)
  • Baud Rate: Up to 115.2kbps, full duplex
  • Power Consumption: 5V DC, 760mA.
  • Transmission Range: Up to 328ft (100m)
  • Operating Temperature: 32° to 104°F (0° to +40°C)
  • Storage Temperature: -40° to 158°F (-40° to +70°C)
  • Humidity: 10% to 90%, RHL non-condensing
  • Dimensions (WxDxH): 4.76" x 2.83" x 0.95" (12.1 x 7.18 x 2.42 cm)
  • Approximate Weight: 0.97 lb (0.44 kg) approx.
